Elo E496859 Touchscreen

The Elo E496859 Touchscreen has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.

Elo 2240L - Elo 2240L 22" Open-frame LCD Touchscreen Monitor - 16:10 - 16 ms - 22" Class - Surface Acoustic Wave - 1680 x 1050 - WSXGA+ - 16.7 Million Colors - 1,000:1 - 400 Nit - DVI - USB - VGA - Black - WEEE, RoHS, China RoHS - 3 Year

Explore a world loaded with potentially vivid entertainment outcomes with the Elo Open-frame LCD Touchscreen Monitor
The SAW touchscreen innovation conveys unrivaled picture clarity, determination, light transmission, and dependability by using clear glass that keeps on working regardless of the possibility of scratches
The WSXGA+ touchscreen highlights WSXGA+ display with the resolution of up to 1680 x 1050 pixels
The 1,000:1 contrast ratio produces enhanced sharpness and shading accuracy in each picture
Furnishes captivating visuals with about 400 Nit brightness levels

Need a different version? See all Elo 2240L Touchscreens

Discontinued Need Assistance?

Add to Quote

Overview

Full specifications (PDF)

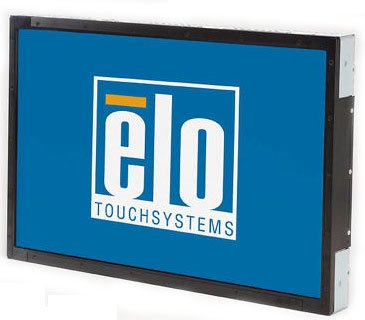

Elo 2240L Touchscreen Model Overview

The ELO 2240L is specifically suited for use in high-traffic casino gaming, video-game entertainment and self-service kiosk environments. The 2240L complements Elo's expanded family of touch solutions for casino gaming, amusement and digital signage. The 2240L features a high quality LCD panel with an ultra-wide viewing angle of 178 x 178 degrees horizontal and vertical, which is wider than most other 22" touchmonitors available today. Colors remain sharp, vivid and true, and graphics retain their integrity due to the 300 nits panel brightness.

Elo E496859 Touchscreen Overview

Specifically suited for use in high-traffic casino gaming, video-game entertainment and self-service kiosk environments, the 2240L complements Elo's expanded family of touch solutions for casino gaming, amusement and digital signage. The 2240L features a high quality LCD panel with an ultra-wide viewing angle of 178° x 178° horizontal and vertical, which is wider than most other 22" touchmonitors available today. Colors remain sharp, vivid and true, and graphics retain their integrity due to the 300 nits panel brightness.

Detailed Specs

Full specifications (PDF)

Technical Information

Screen Size Class:

22"

Viewable Screen Size:

22"

Screen Mode:

WSXGA+

Response Time:

16 ms

Aspect Ratio:

16:10

Horizontal Viewing Angle:

178°

Vertical Viewing Angle:

178°

Display Orientation:

Landscape/Portrait

Video

Maximum Resolution:

1680 x 1050

Standard Refresh Rate:

60 Hz

Color Supported:

16.7 Million Colors

Contrast Ratio:

1,000:1

Brightness:

400 Nit

Touchscreen Information

Touchscreen:

Yes

Touchscreen Type:

Surface Acoustic Wave

Interfaces/Ports

DVI:

Yes

USB:

Yes

VGA:

Yes

Serial Port:

Yes

Power Description

Input Voltage:

110 V AC
220 V AC

Operating Power Consumption:

60 W

Physical Characteristics

VESA Mount Compatible:

Yes

VESA Mount Standard:

100 x 100

Product Color:

Black

Height:

13.1"

Width:

19.7"

Depth:

3.1"

Weight (Approximate):

16.53 lb

Miscellaneous

Certifications & Standards:

UL
cUL
FCC
C-Tick
S-mark
NOM
IMERC
CE
PCT
CCC
MIC
BSMI
VCCI

Environmentally Friendly:

Yes

Environmental Certification:

WEEE
RoHS
China RoHS

Warranty

Limited Warranty:

3 Year

Item Numbers

GTIN: 7411493265372

EAN: 7411493265372

UNSPSC: 43211903

Reviews

Q&A

Accessories

Questions? Get help from
a POS Expert!

The Elo E496859 Touchscreen is also known as ELO-E496859 or E496859.
