Elo E475289 POS System

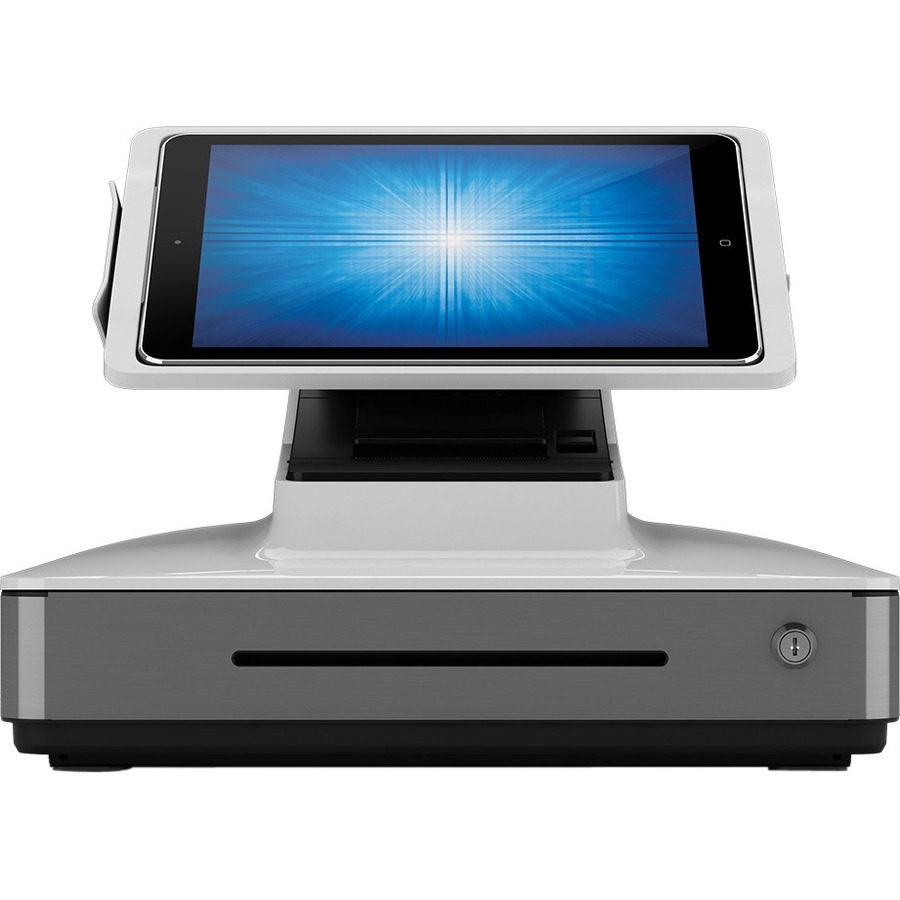

PayPoint Plus provides everything you need in a POS system. It includes a 15.6" Android-powered system, a fully integrated 2D barcode scanner from Honeywell, a 3-inch printer from Star Micronics, an encryptable MSR from Magtek, full-sized 16-inch cash drawer and connections for third party peripherals. The flip-for-signature touchscreen and built-in customer facing display encourages shopper engagement.

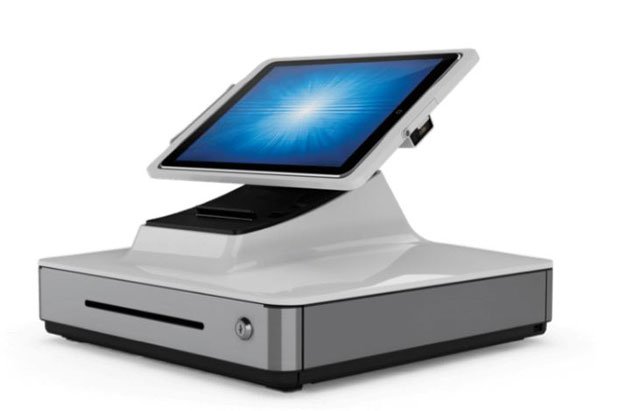

PayPoint Plus for iPad is a new all-in-one mPOS solution that brings unmatched style to the point of sale with a distinctive modern aesthetic. PayPoint Plus provides everything a merchant needs including a fully integrated 2D barcode scanner from Honeywell, a 3-inch printer from Star Micronics, an encryptable MSR from Magtek, full-sized 16-inch cash drawer and connections for third party peripherals. With a flip-for-signature and a built-in customer facing display to encourage shopper engagement, this space-saving and commercial-grade AiO is ideal for retail, hospitality, restaurants and entertainment venues.

Integrated Peripherals
Printer
The Star TSP100iii is a standard 3-inch (80mm) printer with auto-cutter and print speed of 230mm/sec.

Barcode Scanner
The Honeywell N3680 is an omnidirectional 1D/2D engine with optional capability to add plugins. For example - EasyDL™ enables users to read government-issued identification cards in US and Canada.

Cash Drawer
The full size industry-standard cash drawer with 3-position lock offers two layouts - five bill / six coin or four bill / eight coin. A second cash drawer can be added using the I/O port.

Customer Facing Display (CFD)

In some parts of the world, it is required to have a CFD on your POS system. Elo simplifies this by integrating it into the PayPoint Plus solution, creating a true AiO platform for your transaction.Only available on select models

MSR
The Magtek 3-track encryptable MSR offers remote key injection. Swipe loyalty cards with default security Level 2 or encrypt to Level 3 through the Elo Peripherals app to read sensitive credit card data.

3-inch Printer
PayPoint Plus brings robust printer performance with a TSP100iii built by Star Micronics. Drop-in a standard 80mm width paper and print with speed at 230mm/sec. The printer supports multiple languages, barcodes and logo printing. Reliability comes first - this printer has been tested to MCBF of 60 million lines.

Barcode Scanner
2D barcoding is the new norm across retail and hospitality. PayPoint Plus is equipped with an omnidirectional 1D/2D scanner built by Honeywell. The scanner can be configured for operating modes, illumination, beep volume and choice of symbologies to optimize performance for your specific needs. PayPoint Plus offers optional plug-ins like EasyDL to scan and parse data from drivers licenses in the United States and Canada.

Full Size Cash Drawer
The full size 16-inch industry-standard cash drawer offers a 3-position lock and the ability to add second cash drawer through an I/O port.

N. America / China Model
Five bill & six coin layout

Worldwide Model
Four bill & eight coin layout

Magnetic Stripe Reader
PayPoint Plus is equipped with a 3-track encryptable Magnetic Stripe Reader (MSR) built by Magtek. The MSR can be used for loyalty cards or employee check-in. To encrypt the device to accept credit card payments, you can use the intuitive toolkit Elo provides.

Connectivity for 3rd Party Peripherals
PayPoint Plus has additional input/output ports including serial, USB and mini-HDMI to support 3rd party peripherals. From scales or a secondary display to NFC and EMV devices - PayPoint Plus offers many options. You can even add a second cash drawer if needed.
