Elo E469590 Touchscreen

Elo E327914 Touchscreen A newer version of this item is available.
It is replaced by the Elo E327914 Touchscreen.
Elo 2244L - Elo 2244L 22" Open-frame LCD Touchscreen Monitor - 16:9 - 14 ms - 22" Class - Surface Acoustic Wave - 1920 x 1080 - Full HD - 16.7 Million Colors - 1,000:1 - 250 Nit - LED Backlight - DVI - USB - VGA - Black - RoHS, China RoHS, WEEE - 3 Year
  • The open-frame lcd touchscreen monitor is simply ideal for clubhouse gaming, entertainment, and self-administration booth applications
  • The Surface Acoustic Wave (SAW) touchscreens comprise of a glass overlay with the transmitting and accepting piezoelectric transducers for the X and Y-axis
  • The Full HD screen size with 1920x1080 resolution provides the native display of a Full HD video source without any degradation due to down-sampling technologies
  • The 1,000:1 contrast ratio produces enhanced sharpness and shading accuracy in each picture
  • LED backlight enhances the display performance to deliver an outstanding color range and contrast ratio
  • The 250 Nit brightness gives an exceptionally visible display for clear and consistent on-screen pictures
  • VESA mount compatibility allows you to mount the touch screen on a wall or with a stand depending on your specific needs
Read More

Need a different version? See all Elo 2244L Touchscreens

Discontinued See Replacement
Add to Quote
Add to My Shopping List Add to Compare
Elo E469590 Touchscreen
Elo E469590 Touchscreen Elo E469590 Touchscreen Elo E469590 Touchscreen Elo E469590 Touchscreen Elo E469590 Touchscreen
Elo E469590 Touchscreen
Elo E469590 Touchscreen
Elo E469590 Touchscreen
Elo E469590 Touchscreen
Elo E469590 Touchscreen
Full specifications (PDF)

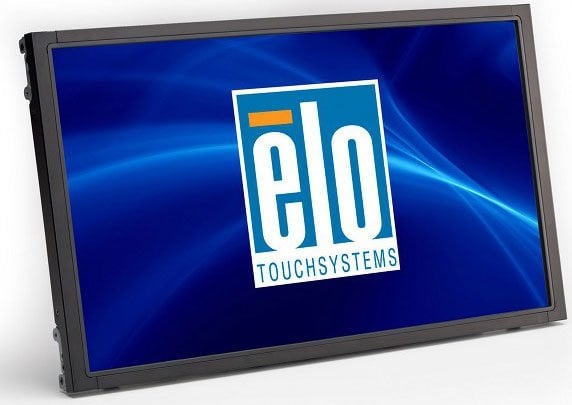

Elo 2244L Touchscreen Model Overview
The slim design, narrow outside dimensions and wide viewing angle panel gives kiosk integrators an edge in developing the most aesthetically pleasing products. Wide-aspect displays like the ELO 2244L are easier to use and incorporate than traditional open-frame touchmonitors. Wide-screen format displays allow extra content on the screen and are quickly becoming preferred in casino gaming, amusement and entertainment settings and are increasingly popular in public venue environments due to the high-definition cinematic-like experience. Typical applications for the 2244L include: gaming and amusement, information kiosks and self-service, as well as interactive digital signage applications.
Elo E469590 Touchscreen Overview

The Elo TouchSystems 2244L open-frame LCD touchmonitor with its slim design and narrow outside dimensions gives kiosk integrators an edge in developing the most aesthetically pleasing products. Wide-aspect displays like the Elo 2244L are easier to use and incorporate than traditional open-frame touchmonitors. Wide-screen format displays allow extra content on the screen and are quickly becoming preferred in casino gaming, amusement and entertainment settings and are increasingly popular in public venue environments due to the high-definition cinematic-like experience. Typical applications for the 2244L include: gaming and amusement, information kiosks and self-service, as well as interactive digital signage applications.

Full specifications (PDF)
Technical Information
Screen Size Class:
22"
Viewable Screen Size:
22"
Screen Mode:
Full HD
Response Time:
14 ms
Aspect Ratio:
16:9
Horizontal Viewing Angle:
178°
Vertical Viewing Angle:
178°
Mount Type:
Rack-mountable
Backlight Technology:
LED
Video
Maximum Resolution:
1920 x 1080
Standard Refresh Rate:
60 Hz
Color Supported:
16.7 Million Colors
Contrast Ratio:
1,000:1
Brightness:
250 Nit
Touchscreen Information
Touchscreen:
Yes
Touchscreen Type:
Surface Acoustic Wave
Interfaces/Ports
DVI:
Yes
USB:
Yes
VGA:
Yes
Power Description
Operating Power Consumption:
39 W
Standby Power Consumption:
1.50 W
Off-Mode Power Consumption:
1 W
Physical Characteristics
VESA Mount Compatible:
Yes
VESA Mount Standard:
100 x 100
Product Color:
Black
Height:
11.7"
Width:
20.2"
Depth:
1.7"
Weight (Approximate):
10.60 lb
Miscellaneous
Certifications & Standards:
  • S-Mark
  • C-Tick
  • cUL
  • IC
  • CCC
  • CE
  • VCCI
  • KCC
  • Mexico CoC
  • BSMI
  • UL
  • FCC
  • International CB
  • IMERC
Environmentally Friendly:
Yes
Environmental Certification:
  • RoHS
  • China RoHS
  • WEEE
Warranty
Limited Warranty:
3 Year
Item Numbers
GTIN: 5711045400674, 7411493248924
EAN: 5711045400674, 7411493248924
UNSPSC: 43211903
Questions? Get help from
a POS Expert!

What is your POS application?

The Elo E469590 Touchscreen is also known as ELO-E469590 or E469590.
