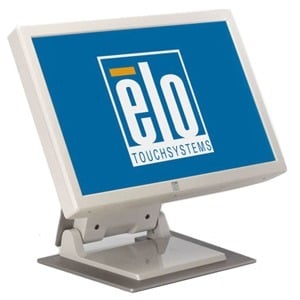

Elo E432721 Touchscreen

Part Number: E432721
Model: 2200L
Add to My Shopping List Add to Compare
Discontinued Need Assistance?

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Screen Size Class
22"
Viewable Screen Size
22"
Screen Mode
WSXGA+
Response Time
5 ms

Product Description:

  Elo 2200L Desktop Touchscreen LCD Monitor - 22" - Surface Acoustic Wave - 1680 x 1050 - 16:10 - Gray
Explore all Elo 2200L Touchscreens
Add to Quote
Elo E432721 Touchscreen
Elo E432721 Touchscreen
Elo E432721 Touchscreen
Elo E432721 Touchscreen
Elo E432721 Touchscreen Elo E432721 Touchscreen Elo E432721 Touchscreen Elo E432721 Touchscreen
Full specifications (PDF)

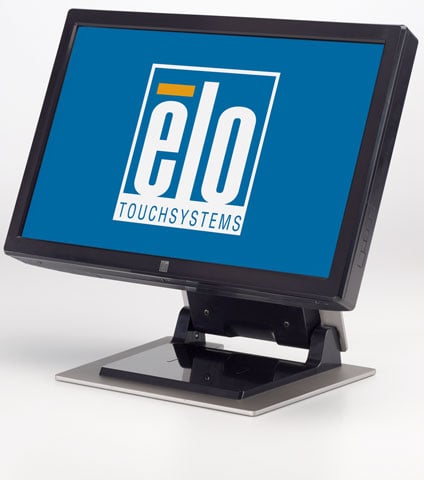

Elo 2200L Touchscreen Model Overview

The ELO 2200L is one of the first wide-aspect ratio touch monitors with a virtually 100-percent useable surface area. The unique "zero-bezel" design removes the frame, or bezel, of standard monitors to create a seamless glass surface that showcases the wide-screen, high-definition experience today's consumers have come to expect. This smooth, seamless touchmonitor surface is possible with state-of-the-art Elo TouchSystems Acoustic Pulse Recognition (APR) touch technology. The 2200L is intended for use in high-traffic retail, hospitality and other public environments, and offers both aesthetic elegance and world-class durability.
Elo E432721 Touchscreen Overview

The 2200L is available in both zero-bezel, which senses touch on the display by recognizing the unique pattern of sounds, and standard-bezel IntelliTouch surface acoustic wave touch technologies. Wide-aspect displays like the 2200L are easier to use and incorporate into the workplace than traditional desktop touch monitors. Wide-screen format displays allow extra content on screen and are ideal in corporate environments for spreadsheets, publishing, and dual-window applications.

Full specifications (PDF)
Technical Information
Screen Size Class:
22"
Viewable Screen Size:
22"
Screen Mode:
WSXGA+
Response Time:
5 ms
Aspect Ratio:
16:10
Horizontal Viewing Angle:
160°
Vertical Viewing Angle:
160°
Mount Type:
Wall Mountable
Video
Maximum Resolution:
1680 x 1050
Standard Refresh Rate:
60 Hz
Color Supported:
16.7 Million Colors
Contrast Ratio:
1,000:1
Brightness:
300 Nit
Audio
Number of Speakers:
2
Touchscreen Information
Touchscreen:
Yes
Touchscreen Type:
Surface Acoustic Wave
Interfaces/Ports
DVI:
Yes
USB:
Yes
VGA:
Yes
Headphone:
Yes
Power Description
Input Voltage:
  • 110 V AC
  • 220 V AC
Physical Characteristics
Product Color:
Gray
Height:
27"
Height with Stand:
15.79"
Width with Stand:
20.31"
Depth with Stand:
13.48"
Weight (Approximate):
15 lb
Weight with Stand (Approximate):
22.20 lb
Miscellaneous
Package Contents:
  • 2200L Desktop Touchscreen LCD Monitor
  • AC power cable
  • Detachable touch Cable
  • Audio Cable
  • Power Cable
  • Video Cable
Additional Information:

Standard-bezel IntelliTouch: 270 cd/m2 (typical)

Environmentally Friendly:
Yes
Environmental Certification:
  • RoHS
  • China RoHS
  • WEEE
Warranty
Limited Warranty:
3 Year
Item Numbers
GTIN: 7411493119538
EAN: 7411493119538
UNSPSC: 43211903
