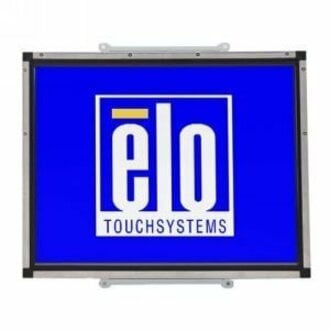

Elo E431187 Touchscreen

Elo E512043 Touchscreen A newer version of this item is available.
It is replaced by the Elo E512043 Touchscreen.

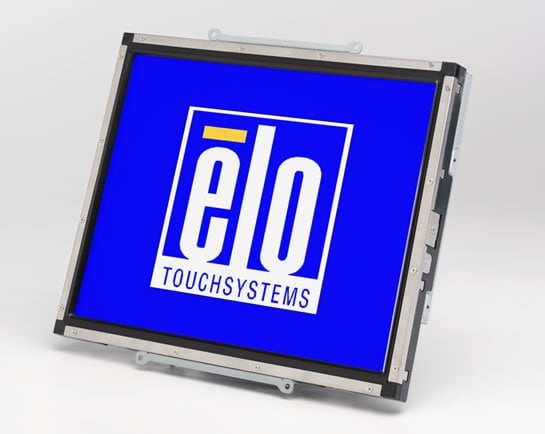

Elo 1537L - Elo 1000 Series 1537L Touch Screen Monitor - 15" - Surface Acoustic Wave - 1024 x 768 - 4:3 - Black
  • The XGA touchscreen highlights XGA display with the resolution of up to 1024 x 768 pixels
  • The 500:1 contrast ratio produces enhanced sharpness and shading accuracy in each picture
  • Furnishes captivating visuals with about 230 Nit brightness levels
Read More

Need a different version? See all Elo 1537L Touchscreens

Discontinued See Replacement
Add to Quote
Add to My Shopping List Add to Compare
Elo E431187 Touchscreen
Elo E431187 Touchscreen Elo E431187 Touchscreen
Elo E431187 Touchscreen
Elo E431187 Touchscreen
Full specifications (PDF)
Elo 1537L Touchscreen Model Overview
The 1537L has a compact form factor with thin borders and multiple mounting options for easy integration. It features a high qualitly panel along with a unique, injection-molded minibezel with virtually invisible watertight seal and choice of touch technology. Future generation panels can be phased-in without external changes. Multilingual on-screen display.
Elo E431187 Touchscreen Overview

Elo's chassis LCD monitor have a long-lasting product cycle because the enclosure is controlled by Elo's specifications. Future panel improvements are therefore possible without external changes. It features a high quality panel along with a unique, injection-molded mini bezel with virtually invisible watertight seal and choice of touch technology.

Full specifications (PDF)
Technical Information
Screen Size Class:
15"
Viewable Screen Size:
15"
Screen Mode:
XGA
Screen Surface:
Anti-glare
Response Time:
14.50 ms
Aspect Ratio:
4:3
Video
Maximum Resolution:
1024 x 768
Standard Refresh Rate:
75 Hz
Color Supported:
16.2 Million Colors
Contrast Ratio:
500:1
Brightness:
230 Nit
Touchscreen Information
Touchscreen:
Yes
Touchscreen Type:
Surface Acoustic Wave
Interfaces/Ports
USB:
Yes
Physical Characteristics
Product Color:
Black
Height:
10.4"
Width:
13.2"
Depth:
1.6"
Weight (Approximate):
6.60 lb
Item Numbers
UNSPSC: 43211903
Questions? Get help from
a POS Expert!

What is your POS application?

The Elo E431187 Touchscreen is also known as ELO-E431187 or E431187.
