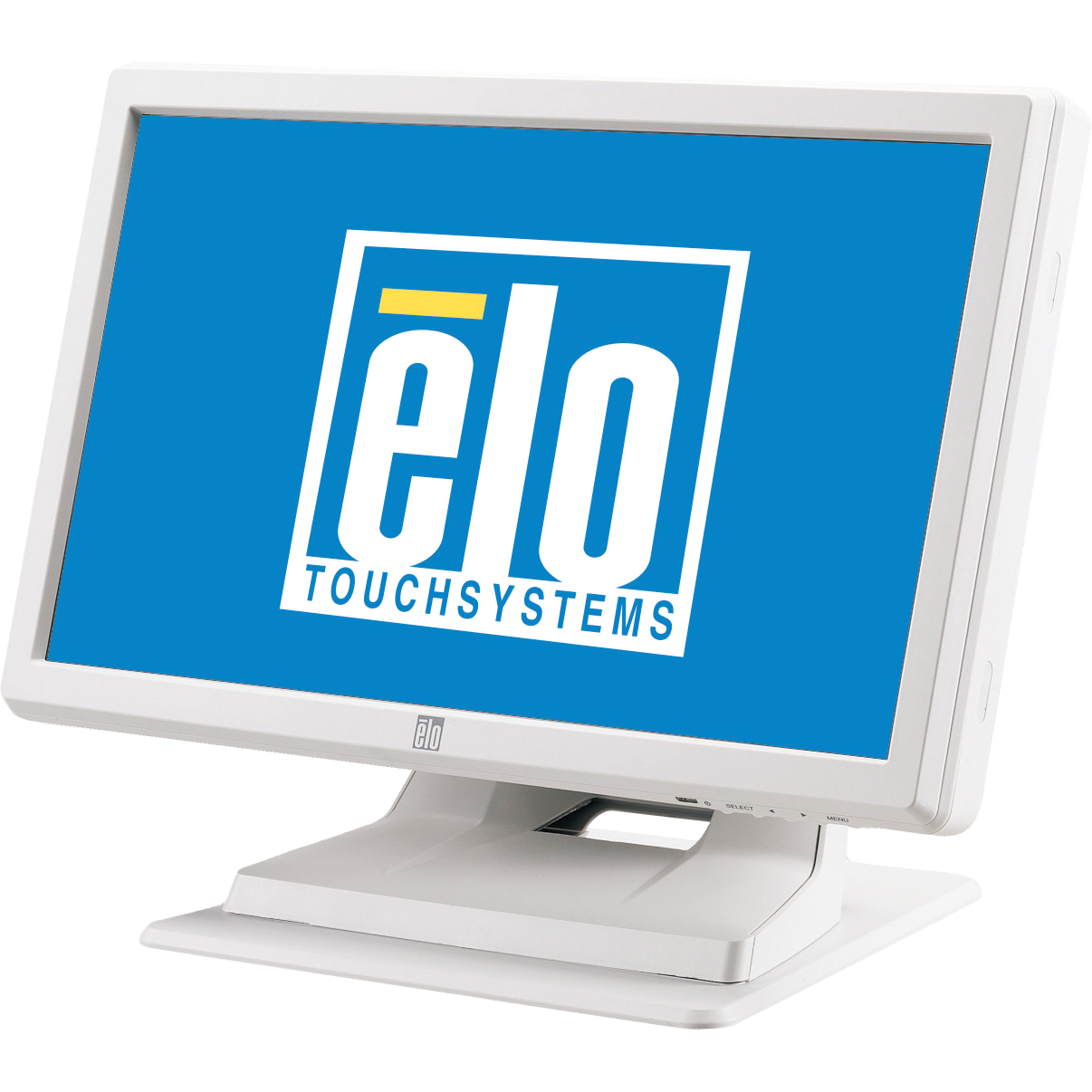

Elo E405580 Touchscreen

Part Number: E405580
Model: 1919LM
Add to My Shopping List Add to Compare
Discontinued Need Assistance?

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Screen Size Class
19"
Viewable Screen Size
19"
Screen Mode
WXGA
Response Time
5 ms

Product Description:

  Elo 1919LM 19" LCD Touchscreen Monitor - 16:9 - 5 ms - 19" Class - Projected Capacitive - 1366 x 768 - WXGA - Adjustable Display Angle - 16.7 Million Colors - 1,000:1 - 300 Nit - Speakers - DVI - USB - VGA - White - RoHS - 3 Year
Explore all Elo 1919LM Touchscreens
Add to Quote
Elo E405580 Touchscreen
Elo E405580 Touchscreen
Elo E405580 Touchscreen
Elo E405580 Touchscreen Elo E405580 Touchscreen Elo E405580 Touchscreen
Full specifications (PDF)

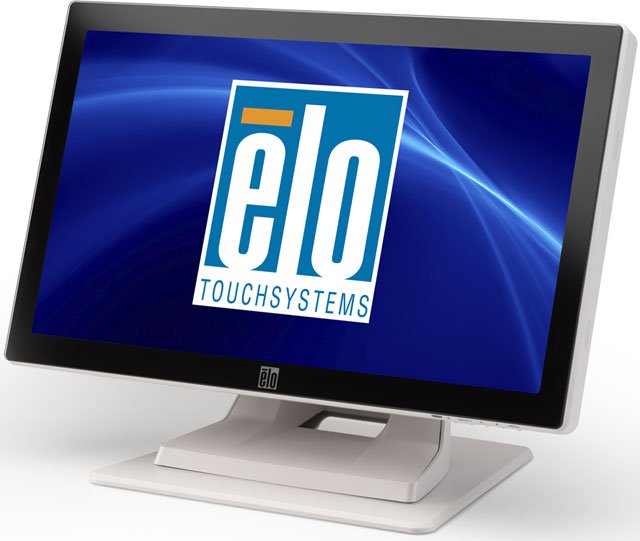

Elo 1919LM Touchscreen Model Overview

The ELO 1919LM 19" touchmonitor is an effective solution for integrating into healthcare applications such as nursing stations, computer-aided therapy, electronic medical record keeping, paperless charting, patient self check-in / registration or point-of-information installations, as well as non-medical applications that benefit from DVI-D input, speakers and a pristine image display. The fully featured 1919LM touchmonitor offers best-in-class optical performance mated to leading touch technologies -IntelliTouch surface acoustic wave and AccuTouch five-wire resistive -in addition to a combination USB and serial touch controller, DVI, VGA and built-in speakers. The monitor is available in white, touch and non-touch enabled versions.
Elo E405580 Touchscreen Overview

The fully featured 1919LM touchmonitor offers best-in-class optical performance mated to leading touch technologies -IntelliTouch surface acoustic wave and AccuTouch five-wire resistive -in addition to a combination USB and serial touch controller, DVI, VGA and built-in speakers. The monitor is available in white, touch and non-touch enabled versions.

The 1919LM is compliant with multiple safety and electrical certifications including EN 60950-1 and EN60601-1 for safety and EN 60950-1, EN55022, EN55024, and EN 60601-1-2 for EMC and the 1919LM meets RoHS compliance. As a result the 1919LM is an excellent fit for a wide variety of settings, including healthcare.

Full specifications (PDF)
Technical Information
Screen Size Class:
19"
Viewable Screen Size:
19"
Screen Mode:
WXGA
Response Time:
5 ms
Aspect Ratio:
16:9
Horizontal Viewing Angle:
170°
Vertical Viewing Angle:
160°
Adjustable Display Angle:
Yes
Features:
Security Lock
Video
Maximum Resolution:
1366 x 768
Standard Refresh Rate:
60 Hz
Color Supported:
16.7 Million Colors
Contrast Ratio:
1,000:1
Brightness:
300 Nit
Audio
Speakers:
Yes
Touchscreen Information
Touchscreen:
Yes
Touchscreen Type:
Projected Capacitive
Interfaces/Ports
DVI:
Yes
USB:
Yes
VGA:
Yes
Headphone:
Yes
Serial Port:
Yes
Power Description
Input Voltage:
  • 110 V AC
  • 220 V AC
Operating Power Consumption:
21.80 W
Physical Characteristics
VESA Mount Compatible:
Yes
VESA Mount Standard:
100 x 100
Product Color:
White
Height with Stand:
12.20"
Width with Stand:
13.80"
Depth with Stand:
6.90"
Weight (Approximate):
15.20 lb
Miscellaneous
Package Contents:
  • 1919LM 19-inch Desktop Touchmonitor for Medical and Healthcare Settings
  • Touch Cables
  • Video Cables
Certifications & Standards:
  • VCCI
  • S-Mark
  • UL 60601-1
  • CSA C22.2 No. 60601-1
  • FCC CFR 47 Part 18 Subpart B
  • UL 60950
  • CSA C22.2 No. 60950-1-03
  • NOM
  • FCC
  • ICES

EMEA:

  • IEC/EN 60601-1:1988+A1+A2 2nd Edition
  • IEC/EN 60601-1-2:2005
  • IEC/EN 55011
  • IEC/EN 60950-1
  • C-Tick
  • CE
Environmentally Friendly:
Yes
Environmental Certification:
RoHS
Warranty
Limited Warranty:
3 Year
Item Numbers
UNSPSC: 43211903
