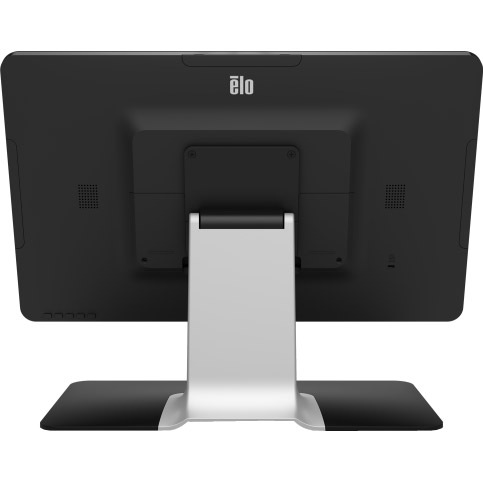

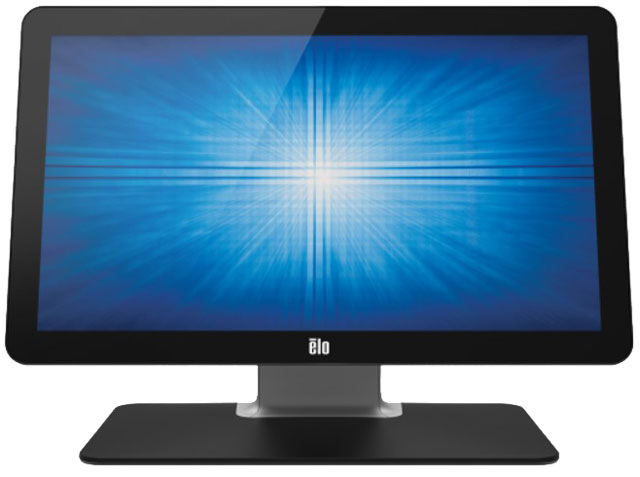

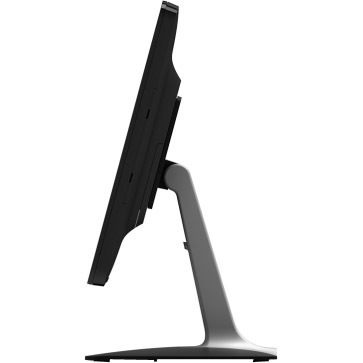

Elo E396119 Touchscreen

Part Number: E396119
Model: 2002L
Add to My Shopping List Add to Compare
$752.70
In Stock

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Screen Size Class
20"
Viewable Screen Size
19.5"
Screen Mode
Full HD
Panel Technology
Thin Film Transistor (TFT)

Product Description:

  19.5" Touchscreen Monitor, Elo 2002L, Desktop LCD, 16:9 Aspect Ratio, Projected Capacitive 10-Touch, 1920 x 1080/Full HD, 16.7 million Colors, 225 nits Brightness (typical), 3000:1 Contrast Ratio (typical), mini-VGA and HDMI Video Interface, USB Touch Controller Interface, Anti-Glare, Zero-Bezel, No Stand, Black, 3-Year Warranty, Speakers, Worldwide. Box Includes Mini-VGA to VGA Cable (mini-VGA to DE-15 (DB-15) male), USB Cable (USB Type A Plug to USB Type B Plug), HDMI Cable, Audio Cable, User Manual CD, Quick Install Guide, Power Brick with US, EU, UK, KR, AU and CN Clips.
Explore all Elo M-Series 2002L 20-inch LED Touchscreens
Add to Quote
Elo E396119 Touchscreen
Elo E396119 Touchscreen
Elo E396119 Touchscreen
Elo E396119 Touchscreen
Elo E396119 Touchscreen
Elo E396119 Touchscreen Elo E396119 Touchscreen Elo E396119 Touchscreen Elo E396119 Touchscreen Elo E396119 Touchscreen
Full specifications (PDF)

Elo M-Series 2002L 20-inch LED Touchscreen Model Overview

The Elo M-Series 2002L 19.5-inch LED Touch Monitor blends style and functionality, making it an ideal interactive solution for retail and hospitality environments. Its sleek widescreen design features a full HD edge-to-edge glass display that enhances customer engagement. Perfectly suitable for limited space, this low-profile monitor supports flexible mounting options and provides a robust touch experience with its projected capacitive technology that recognizes up to ten simultaneous touches. Built to endure the demands of public use, this reliable monitor offers an optional array of integrated accessories, ensuring streamlined operation and increased compatibility with modern point-of-sale systems.


Key Features:

  • Touch Technology: Projected capacitive with up to 10 touch points.
  • Full HD Resolution: 1920 x 1080 for stunning visuals.
  • Modern Design: Flexible mounting in portrait, landscape, and table-top orientation.
  • Integrated Retail Accessories: Magnetic Stripe Reader (MSR), Barcode Scanner, and NFC for mobile payments.

Specifications:

  • Model: 2002L
  • Color: Black
  • Display Size: 19.5 inches
  • Native Resolution: 1920 x 1080
  • Brightness: 250 nits
  • Aspect Ratio: 16:9
  • Contrast Ratio: 3000:1
  • Weight: 15 lbs (6.8 kg) without packaging
  • Warranty: 3 years
  • Temperature Range: Operating 0 °C to 40 °C
Elo E396119 Touchscreen Overview

The Elo M-Series 2002L widescreen LED desktop touch monitor is a modern and stylish interactive solution for customer engagement and employee effectiveness. The sleek wide aspect ratio touchscreen features a full HD edge-to-edge glass display to showcase your content.

For environments where space is limited, the 2002L offers a low profile, with versatile mounting ideal for point-of-sale (POS), point-of-information (POI) and point-of-service applications within retail and hospitality environments. The multiple mount and stand options ensure installation flexibility and accommodate desktop use as well as wall- and pole-mount with standard VESA mount patterns.

The seamless zero-bezel 19.5" multi-touch display offers 11.5% larger screen area compared to the 1919L, with beautiful full HD resolution and HDMI input. Available with cutting-edge projected capacitive (PCAP) multi-touch capability supporting up to ten-touches simultaneously offers a tablet-like interactive experience. Built to withstand the rigors of continuous public use, the 2002L is retail-hardened and is well suited for high traffic venues.

Optional color coordinated retail accessories include a magnetic stripe reader (MSR), barcode scanner and near field communication (NFC) adapter for mobile payments and increased compatibility with the latest point of sale applications. The accessories are easily installed, providing an elegant, integrated solution that eliminates the need for external brackets or attachments.

Full specifications (PDF)
Technical Information
Screen Size Class:
20"
Viewable Screen Size:
19.5"
Screen Mode:
Full HD
Panel Technology:
Thin Film Transistor (TFT)
Response Time:
20 ms
Aspect Ratio:
16:9
Horizontal Viewing Angle:
178°
Vertical Viewing Angle:
178°
Mount Type:
  • Wall Mountable
  • Pole Mount
  • Shelf Mount
  • Floor-mountable
  • Desk Mountable
Placement:
Tabletop
Backlight Technology:
LED
HDCP Supported:
Yes
Features:
  • On-screen Display (OSD)
  • Anti-glare
Horizontal Frequency:
31.50 kHz to 80 kHz
Vertical Frequency:
50 Hz to 60 Hz
Curved Screen:
No
Video
Maximum Resolution:
1920 x 1080
Color Supported:
16.7 Million Colors
Contrast Ratio:
3,000:1
Native Contrast Ratio:
3,000:1
Brightness:
250 Nit
Maximum Refresh Rate:
60 Hz
Audio
Speakers:
Yes
Number of Speakers:
2
Speaker Output Power:
4 W
Touchscreen Information
Touchscreen Type:
Projected Capacitive
Multi-touch Screen:
Yes
Number of Simultaneous Touchpoints:
10
Interfaces/Ports
HDMI:
Yes
USB:
Yes
VGA:
Yes
Power Description
Operating Power Consumption:
18.40 W
Standby Power Consumption:
330 mW
Off-Mode Power Consumption:
240 mW
Energy Consumption per Year:
27 kWh
Input Voltage Range:
100V to 240V
Physical Characteristics
VESA Mount Compatible:
Yes
VESA Mount Standard:
75 x 75
Color Family:
Black
Product Color:
Black
Height:
11.6"
Width:
19.2"
Depth:
1.5"
Height with Stand:
13.87"
Width with Stand:
19.22"
Depth with Stand:
7.61"
Weight (Approximate):
7.25 lb
Weight with Stand (Approximate):
11.68 lb
Miscellaneous
Additional Information:
  • Accessible through switches along the bottom.
  • Controls: Menu, Power, Up, Down, Select
  • Settings: Brightness, Contrast, Clock, Phase, H-position, V-position, Auto-Adjust, Aspect Ratio, Sharpness, Color Temperature, OSD Timeout, OSD Language, Volume, Mute, Recall Defaults, Audio Select
  • Lockouts: OSD, Power
  • Input Connector: Coaxial power jack (2.5 mm pin outer diameter, 6.4mm barrel inner diameter)
  • Sealability: Touchscreen sealed to bezel; Touchscreen sealed to LCD
  • Ingress Protection: IPX1 for front side
Mean Time Between Failures (MTBF):
5.7 Year
Item Numbers
GTIN: 0696554916364, 0818214094889, 0818262884357, 0834619010415, 4250389276817, 4963273100944
UPC: 696554916364, 818214094889, 818262884357, 834619010415
EAN: 0696554916364, 0818214094889, 0818262884357, 0834619010415, 4250389276817, 4963273100944
UNSPSC: 43211903
