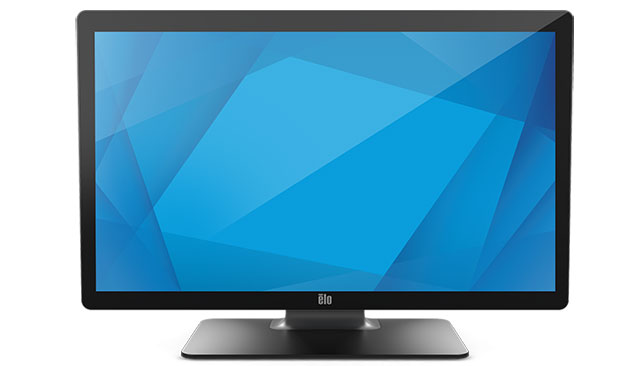

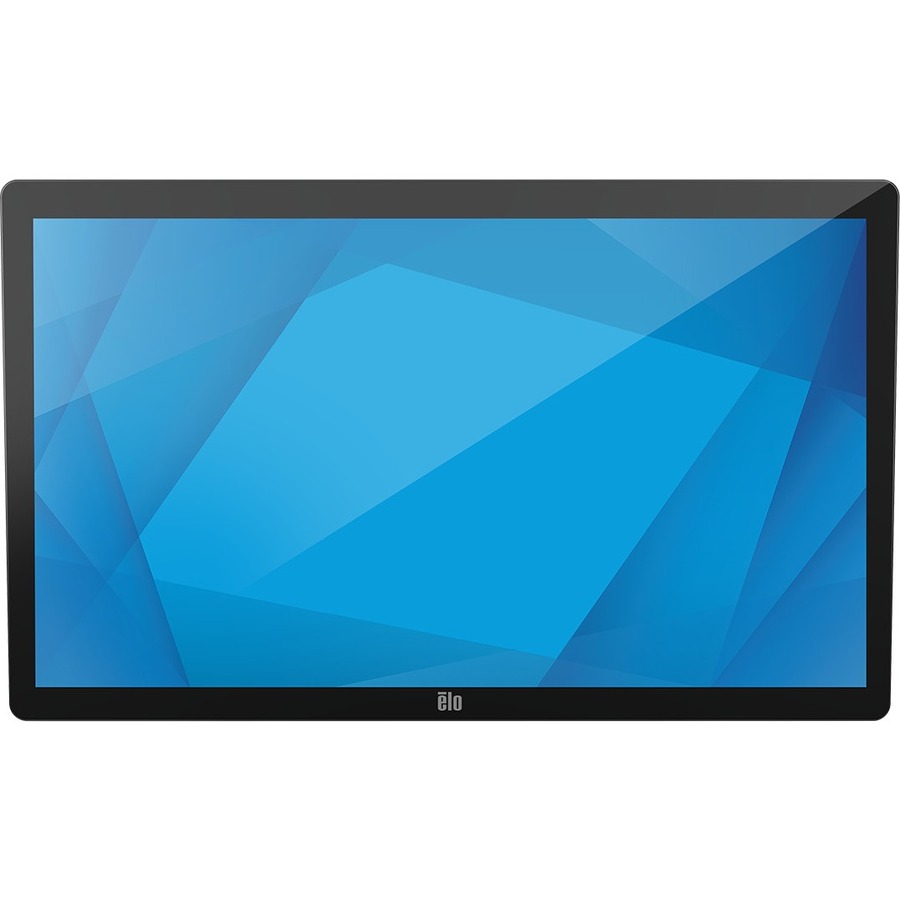

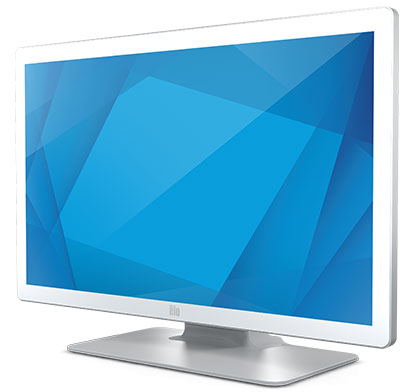

Elo E381654 Touchscreen

Part Number: E381654
Model: 2703LM
Add to My Shopping List Add to Compare
$1,059.05
Item on backorder — chat for lead time

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Screen Size Class
27"
Viewable Screen Size
27"
Screen Mode
Full HD
Panel Technology
Thin Film Transistor (TFT)

Product Description:

  Touchscreens, ELO 2703LM, 27" Wide LCD Medical Grade Touch Monitor, Full HD, Projected Capacitive 10-Touch, DICOM 14, USB And Serial Touch Interface, Anti-Glare, Zero-Bezel, No Stand, VGA And HDMI Video Interface, Black, Worldwide
Explore all Elo 2703LM 27-Inch Medical Grade Touchscreens
Add to Quote
Elo E381654 Touchscreen
Elo E381654 Touchscreen
Elo E381654 Touchscreen
Elo E381654 Touchscreen
Elo E381654 Touchscreen
Elo E381654 Touchscreen Elo E381654 Touchscreen Elo E381654 Touchscreen Elo E381654 Touchscreen Elo E381654 Touchscreen
Full specifications (PDF)

Elo 2703LM 27-Inch Medical Grade Touchscreen Model Overview

The Elo 2703LM 27" Medical Grade Touchscreen Monitor merges best-in-class touchscreen technology with DICOM Part 14 functionality to help enhance clinical review for healthcare providers while increasing patient engagement. With a compact form factor and clean design, the touchscreen monitors are well-suited for EMR documentation, image viewing, clinical collaboration, deployment within the laboratory and pharmacy and for integration into medical devices. Purpose-built for healthcare, the 03-Series medical monitors comply with IEC60601-1 4th edition requirements and are IP54 certified to support healthcare environments.
Elo E381654 Touchscreen Overview

DICOM Medical Grade Touchscreen Monitors

The 03-Series Medical Grade Touchscreen Monitors merge best-in-class touchscreen technology with DICOM Part 14 functionality to help enhance clinical review for healthcare providers while increasing patient engagement. With a compact form factor and sleek design, the touchscreen monitors are well-suited for EMR documentation, image viewing, clinical collaboration, deployment within the laboratory and pharmacy and for integration into medical devices.

IP-54 Rating

Sealed against dirt, dust and liquids, delivering a reliable, easy-to-sanitize solution.

IEC 60601

IEC 60601 compliant power supply included.

DICOM 14

Ensures accurate and uniform image reproduction for reliable review.

Integrated Touch

TouchPro PCAP offers a 10-touch tablet-like experience with capability for use with wet or dry gloves.

Built-to-Last

Backed by Elo's 3-year standard warranty with optional EloCare service offerings.

DICOM 14 -Designed for Consistent Image Review

Get the image accuracy you need during clinical review with the 03-Series medical grade touch screen monitors. To help ensure healthcare providers and patients can view clear, accurate and consistent medical images, the displays are pre-calibrated from the factory per AAPM secondary display guidelines in compliance with the DICOM 14 GSDF curve.

Enhancing Clinical Workflow with Touch

From analyzing X-rays and scans to reviewing vitals, lab results and medical history, adding touchscreens into the clinical workflow creates efficiencies while improving the patient and provider experience.

Medical Device Ready

With a full line of touch technologies and display solutions, Elo can help develop and customize products for almost any medical device including ventilator monitors, anesthesia monitors, patient monitors and medication dispensers. From operating rooms to patient rooms, laboratories and anywhere healthcare is provided, Elo products are well-suited for medical applications where consistent and long-lasting quality and touch performance are critical.

Full specifications (PDF)
Technical Information
Screen Size Class:
27"
Viewable Screen Size:
27"
Screen Mode:
Full HD
Panel Technology:
Thin Film Transistor (TFT)
Response Time:
14 ms Typical
Aspect Ratio:
16:9
Horizontal Viewing Angle:
178°
Vertical Viewing Angle:
178°
Mount Type:
  • Wall Mountable
  • Pole Mount
Backlight Technology:
LED
Features:
  • Anti-glare
  • OnScreen Control
  • On-screen Display (OSD)
Horizontal Frequency:
30 kHz to 82 kHz
Vertical Frequency:
50 Hz to 75 Hz
Ingress Protection (IP) Rating:
IP54
Impact Protection (IK) Rating:
IK06
Video
Maximum Resolution:
1920 x 1080
Color Supported:
16.7 Million Colors
Native Contrast Ratio:
1,000:1
Brightness:
300 Nit
Audio
Speakers:
Yes
Touchscreen Information
Touchscreen Type:
TouchPro Projected Capacitive
Multi-touch Screen:
Yes
Number of Simultaneous Touchpoints:
10
Interfaces/Ports
HDMI:
Yes
USB:
Yes
VGA:
Yes
Built-in Devices
Built-in Devices:
USB Hub
Power Description
Frequency:
  • 50 Hz
  • 60 Hz
Physical Characteristics
VESA Mount Compatible:
Yes
VESA Mount Standard:
100 x 100
Product Color:
Black
Height:
15.5"
Width:
25.5"
Depth:
1.8"
Weight (Approximate):
15.72 lb
Item Numbers
GTIN: 0843173150741
UPC: 843173150741
EAN: 0843173150741
UNSPSC: 43211903

Recommended Accessories

Category

  • Digital Signage Display Accessories (1)
  • POS Monitor Accessories (7)
  • Pos Workstation Accessories (1)
  • Touchscreen Accessories (4)

Recommended Accessories for Model: Elo E381654 Touchscreen

Top Digital Signage Display Accessories Purchased With Elo E381654

Top POS Monitor Accessories Purchased With Elo E381654

  • Elo E352392 Accessory
    Elo E352392 Accessory
    Card Reader, ELO, Encrypted Magnetic Stripe Reader, 03-Series Desktop Monitors, Color: White
    Item on backorder — chat for lead time
    $189.47
    Add to Quote
  • Elo E353170 Accessory
    Elo E353170 Accessory
    Carrying and Protective Accessories, ELO, 27-Inch Privacy Screen, Compatible with the 02-/03-Series Desktop Monitors
    Item on backorder — chat for lead time
    $403.00
    Add to Quote
  • Elo E593253 Accessory
    Elo E593253 Accessory
    Power Systems & Supplies, ELO, Power Brick Kit, 1.8M Power Cable, 03-Series Desktop Monitors
    Item on backorder — chat for lead time
    $202.73
    Add to Quote
See All POS Monitor Accessories for Elo E381654 Touchscreen >

Top Pos Workstation Accessories Purchased With Elo E381654

Top Touchscreen Accessories Purchased With Elo E381654

  • Elo E001002 Accessory
    Elo E001002 Accessory
    Card Reader, ELO, Magnetic Stripe Reader, Encryptable, Color: Black, Compatible with ELO X Series
    In Stock
    $172.73
    Add to Quote
  • Elo E043382 Accessory
    Elo E043382 Accessory
    Mounting Hardware & Stands, ELO, Shelf Mount Bracket I-Series and 02 Series
    Item on backorder — chat for lead time
    $133.83
    Add to Quote
  • Elo E810917 Accessory
    Elo E810917 Accessory
    Cables, Connectors, and Adapters, ELO, Q-94608 ELO-KIT-YCABLE-IDS Touchscreens
    Item on backorder — chat for lead time
    $29.89
    Add to Quote
See All Touchscreen Accessories for Elo E381654 Touchscreen >

Frequently Asked Questions

The Elo 2703LM is a 27" medical-grade touchscreen monitor featuring DICOM Part 14 functionality for enhanced clinical review. It includes projected capacitive 10-touch technology, full HD resolution, anti-glare coating, and a zero-bezel design optimized for healthcare environments including EMR documentation, image viewing, and laboratory and pharmacy applications.

Yes, the Elo 2703LM is purpose-built for healthcare and complies with IEC60601-1 4th edition requirements. It is IP54 certified, making it well-suited for deployment in medical device integration, clinical collaboration spaces, laboratories, and pharmacy environments where durability and cleanliness standards are critical.

The Elo 2703LM provides both VGA and HDMI video interfaces for flexible display connectivity. Touch input is supported through USB and serial interfaces, allowing seamless integration with various healthcare IT systems and medical device platforms.

Unlike standard displays, the Elo 2703LM is specifically engineered for healthcare with DICOM Part 14 support for medical imaging workflows and IEC60601-1 4th edition compliance. Its compact form factor, clean zero-bezel design, and IP54 certification make it ideal for clinical environments where infection control and space efficiency are priorities.

Yes, the Elo 2703LM is equipped with DICOM Part 14 functionality specifically designed to enhance clinical review and medical image viewing. This makes it suitable for radiologists, clinicians, and healthcare professionals who need accurate color and grayscale rendering for diagnostic purposes.

The Elo 2703LM utilizes projected capacitive 10-touch technology, which provides responsive multi-touch capabilities ideal for clinical workflows, patient engagement, and collaborative medical applications. This technology enables intuitive interaction while maintaining the durability required in healthcare settings.

The Elo E381654 Touchscreen is also known as ELO-E381654 or E381654.
