Elo E380478 Touchscreen

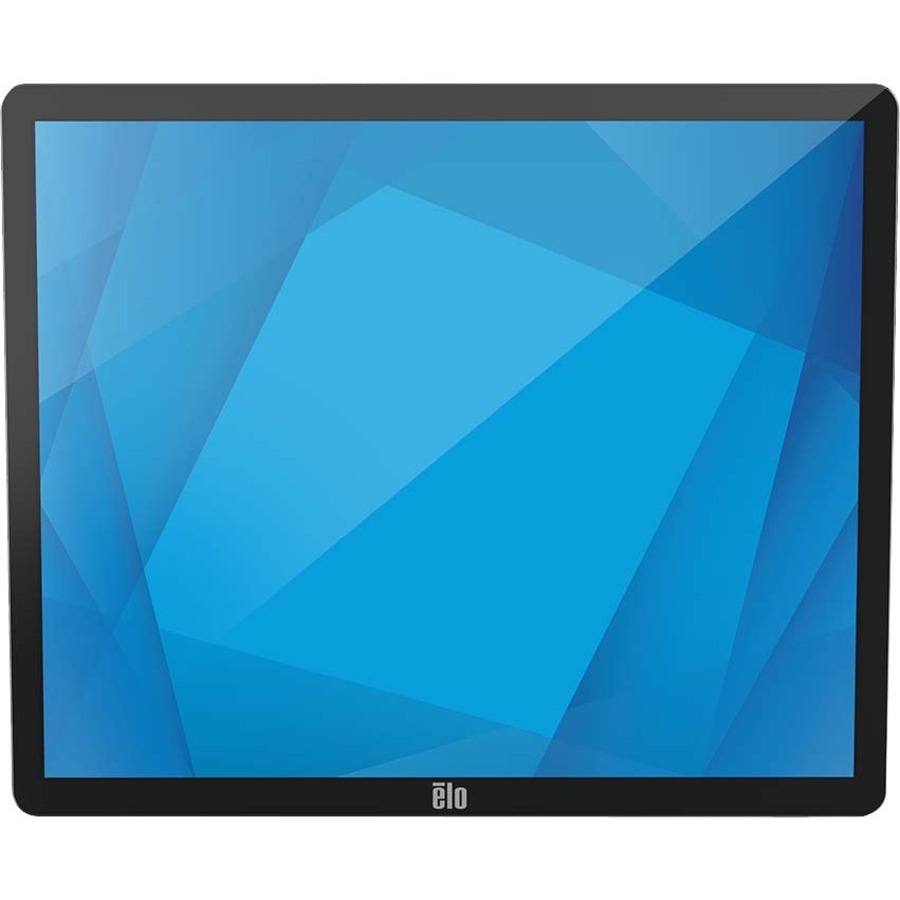

Elo 1903LM Medical Grade Touchscreen Model Overview

The Elo 1903LM 19-inch Medical Grade Touchscreen Monitor is designed to enhance clinical workflows in healthcare settings. Featuring DICOM Part 14 compliance, this monitor ensures consistent image review, making it ideal for EMR documentation, image viewing, and clinical collaboration. Its sleek, compact design suits various environments within laboratories, pharmacies, and medical devices. Certified with IEC60601-1 standards and IP54 rated for protection against moisture and dust, the Elo 1903LM integrates seamlessly into any medical application, ensuring reliability and engagement with patients.

Key Features

DICOM Part 14 compliant for reliable image review
10-touch technology supports finger, glove, and stylus usage
Available in 19-inch square and larger widescreen displays
Multiple mounting options including stand, wall, and pole mounts
IP54 certified for healthcare environments

Specifications

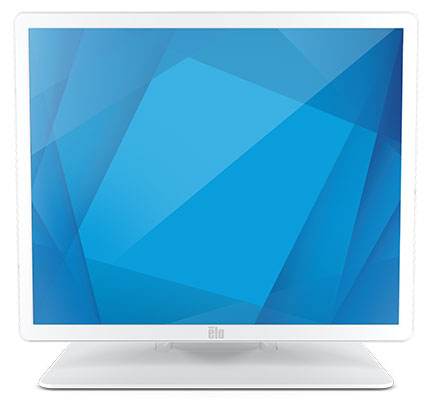

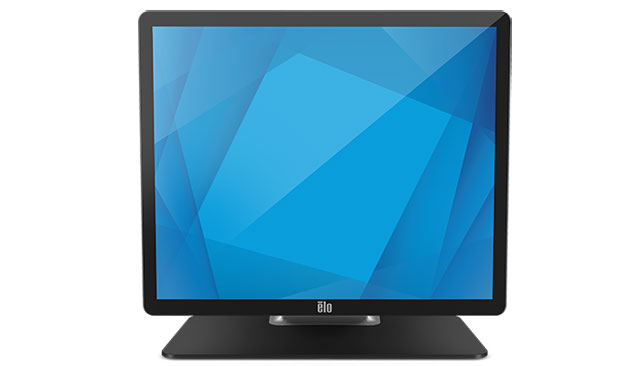

Color: Black or White
Diagonal Size: 19 inches / 482.6 mm
Active Touch Area: 14.76" x 11.80" / 374.78 mm x 299.83 mm
Touch Technology: TouchPro PCAP
Number of Touches: 10
Native Resolution: 1280 x 1024
Brightness: 250 nits (Panel), 225 nits (with TouchPro PCAP)
Response Time: 14 msec
Contrast Ratio: 1000:1
Operating Temperature: 0°C to 40°C
Warranty: 3 years standard, with extended options available
Weight: 13.9 lbs with stand / 9.48 lbs without stand

Elo E380478 Touchscreen Overview

DICOM Medical Grade Touchscreen Monitors

The 03-Series Medical Grade Touchscreen Monitors merge best-in-class touchscreen technology with DICOM Part 14 functionality to help enhance clinical review for healthcare providers while increasing patient engagement. With a compact form factor and sleek design, the touchscreen monitors are well-suited for EMR documentation, image viewing, clinical collaboration, deployment within the laboratory and pharmacy and for integration into medical devices.

IP-54 Rating

Sealed against dirt, dust and liquids, delivering a reliable, easy-to-sanitize solution.

IEC 60601

IEC 60601 compliant power supply included.

DICOM 14

Ensures accurate and uniform image reproduction for reliable review.

Integrated Touch

TouchPro PCAP offers a 10-touch tablet-like experience with capability for use with wet or dry gloves.

Built-to-Last

Backed by Elo's 3-year standard warranty with optional EloCare service offerings.

DICOM 14 | Designed for Consistent Image Review

Get the image accuracy you need during clinical review with the 03-Series medical grade touch screen monitors. To help ensure healthcare providers and patients can view clear, accurate and consistent medical images, the displays are pre-calibrated from the factory per AAPM secondary display guidelines in compliance with the DICOM 14 GSDF curve.

Enhancing Clinical Workflow with Touch

From analyzing X-rays and scans to reviewing vitals, lab results and medical history, adding touchscreens into the clinical workflow creates efficiencies while improving the patient and provider experience.

Purpose-built for Healthcare

The 03-Series medical grade touch screen monitors offer flexibility for installation in a variety of healthcare environments to support increased communication among patients and healthcare providers.

Medical Device Ready

With a full line of touch technologies and display solutions, Elo can help develop and customize products for almost any medical device including ventilator monitors, anesthesia monitors, patient monitors and medication dispensers. From operating rooms to patient rooms, laboratories and anywhere healthcare is provided, Elo products are well-suited for medical applications where consistent and long-lasting quality and touch performance are critical.

Flexible Mounting

Every monitor is designed with VESA hole patterns to simplify mounting onto a variety of stands, arms, walls or medical carts.

Privacy Matters

Optional privacy filters offer an additional safeguard when reviewing private health information or sensitive administrative data.

Ergonomic

Optional handles can be added to easily move or rotate the display to a comfortable orientation.

Detailed Specs

Full specifications (PDF)

Technical Information

Screen Size Class:

19"

Viewable Screen Size:

19"

Screen Mode:

SXGA

Panel Technology:

Thin Film Transistor (TFT)

Response Time:

14 ms

Response Time Details:

14 ms Typical

Aspect Ratio:

5:4

Horizontal Viewing Angle:

178°

Vertical Viewing Angle:

178°

Mount Type:

Wall Mountable
Pole Mount

Backlight Technology:

LED

Features:

Anti-glare
On-screen Display (OSD)
OnScreen Control

Horizontal Frequency:

30 kHz to 82 kHz

Vertical Frequency:

50 Hz to 75 Hz

Ingress Protection (IP) Rating:

IP54

Impact Protection (IK) Rating:

IK06

Video

Maximum Resolution:

1280 x 1024

Color Supported:

16.7 Million Colors

Native Contrast Ratio:

1,000:1

Brightness:

250 Nit

Audio

Speakers:

Yes

Touchscreen Information

Touchscreen Type:

TouchPro Projected Capacitive

Multi-touch Screen:

Yes

Number of Simultaneous Touchpoints:

10

Interfaces/Ports

HDMI:

Yes

USB:

Yes

VGA:

Yes

Number of USB Ports:

4

Built-in Devices

Built-in Devices:

USB Hub

Power Description

Frequency:

50 Hz
60 Hz

Physical Characteristics

VESA Mount Compatible:

Yes

VESA Mount Standard:

100 x 100

Color Family:

Black

Product Color:

Black

Height:

14"

Width:

16.9"

Depth:

1.6"

Weight (Approximate):

9.48 lb

Item Numbers

GTIN: 0843173150680

UPC: 843173150680

EAN: 0843173150680

UNSPSC: 43211903

Reviews

Accessories

Recommended Accessories

Recommended Accessories for Model: Elo E380478 Touchscreen

Top Digital Signage Display Accessories Purchased With Elo E380478

Elo E066148 Accessory
Stylus, ELO, Stylus Touchpen for PCAP Systems, Minimum Order Quantity: 10

In Stock

$33.09

Add to Quote

Top POS Monitor Accessories Purchased With Elo E380478

Elo E804330 Accessory
Mounting Hardware & Stands, ELO, 24 and 27-Inch Replacement Stand, 02-/03-Series Desktop Monitors, Color: Black

Item on backorder — chat for lead time

$201.50

Add to Quote
Elo E352392 Accessory
Card Reader, ELO, Encrypted Magnetic Stripe Reader, 03-Series Desktop Monitors, Color: White

Item on backorder — chat for lead time

$189.47

Add to Quote
Elo E593253 Accessory
Power Systems & Supplies, ELO, Power Brick Kit, 1.8M Power Cable, 03-Series Desktop Monitors

Item on backorder — chat for lead time

$202.73

Add to Quote

See All POS Monitor Accessories for Elo E380478 Touchscreen >

Top Pos Workstation Accessories Purchased With Elo E380478

Elo E143088 POS Touch Terminal
Mounting Hardware & Stands, ELO, Wall Mount

In Stock

$39.10

Add to Quote

Top Touchscreen Accessories Purchased With Elo E380478

Elo E001002 Accessory
Card Reader, ELO, Magnetic Stripe Reader, Encryptable, Color: Black, Compatible with ELO X Series

In Stock

$172.73

Add to Quote
Elo E043382 Accessory
Mounting Hardware & Stands, ELO, Shelf Mount Bracket I-Series and 02 Series

Item on backorder — chat for lead time

$133.83

Add to Quote
Elo E810917 Accessory
Cables, Connectors, and Adapters, ELO, Q-94608 ELO-KIT-YCABLE-IDS Touchscreens

Item on backorder — chat for lead time

$29.89

Add to Quote

See All Touchscreen Accessories for Elo E380478 Touchscreen >

See All Accessories for Elo E380478 Touchscreen >

Service Contracts

FAQs

Frequently Asked Questions

What are the key features of the Elo E380478 1903LM touchscreen monitor?

The Elo 1903LM is a 19-inch medical-grade touchscreen monitor featuring projected capacitive 10-touch technology, DICOM Part 14 functionality for enhanced clinical review, and a compact zero-bezel design. It delivers HD resolution at 1280 x 1024 and includes both VGA and HDMI video interfaces, making it well-suited for EMR documentation, image viewing, and clinical collaboration in healthcare environments.

Is the Elo 1903LM compliant with healthcare standards and certifications?

Yes, the Elo 1903LM is purpose-built for healthcare and complies with IEC60601-1 4th edition requirements. It is also IP54 certified, which means it meets the durability and contamination resistance standards necessary for healthcare environments including laboratories, pharmacies, and medical device integration.

What connectivity options does the Elo E380478 touchscreen offer?

The Elo 1903LM provides multiple connectivity options including USB and serial touch interfaces for input, along with VGA and HDMI video interfaces for display output. This flexibility allows seamless integration with various healthcare IT systems and clinical workstations.

What are the ideal use cases for the Elo 1903LM medical touchscreen?

The Elo 1903LM is designed for EMR documentation, medical image viewing, clinical collaboration, laboratory and pharmacy deployment, and integration into medical devices. Its anti-glare display and clean design make it particularly effective for environments where healthcare providers need reliable, touch-enabled access to patient information and diagnostic imaging.

Does the Elo 1903LM come with a stand?

No, the Elo 1903LM is supplied without a stand. This allows you to customize the mounting solution based on your specific clinical environment and workflow requirements.

What display technology does the Elo E380478 use?

The Elo 1903LM features a 19-inch LCD display with projected capacitive 10-touch technology and an anti-glare surface. The zero-bezel design minimizes frame width while maintaining the HD 1280 x 1024 resolution needed for clear clinical image and document viewing.
