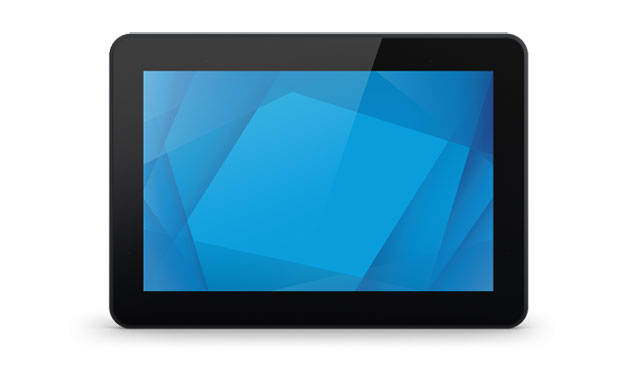

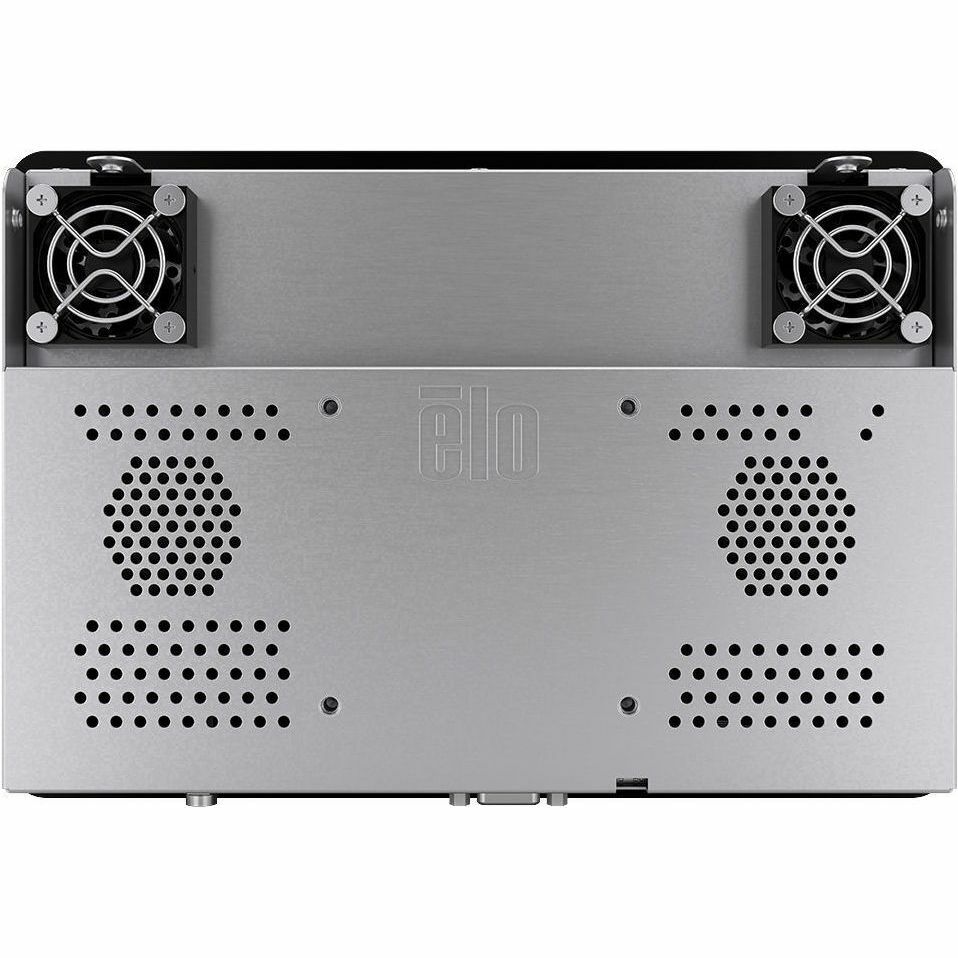

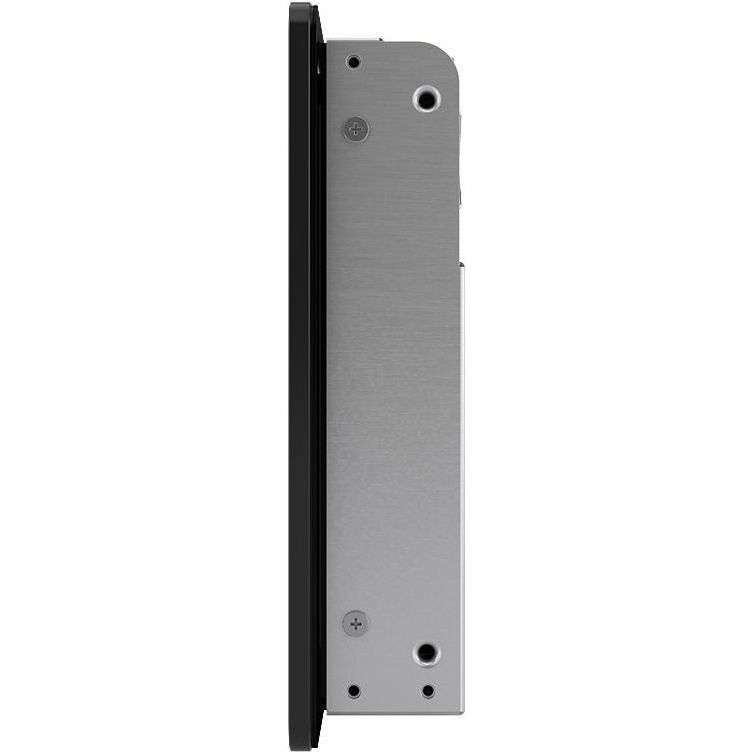

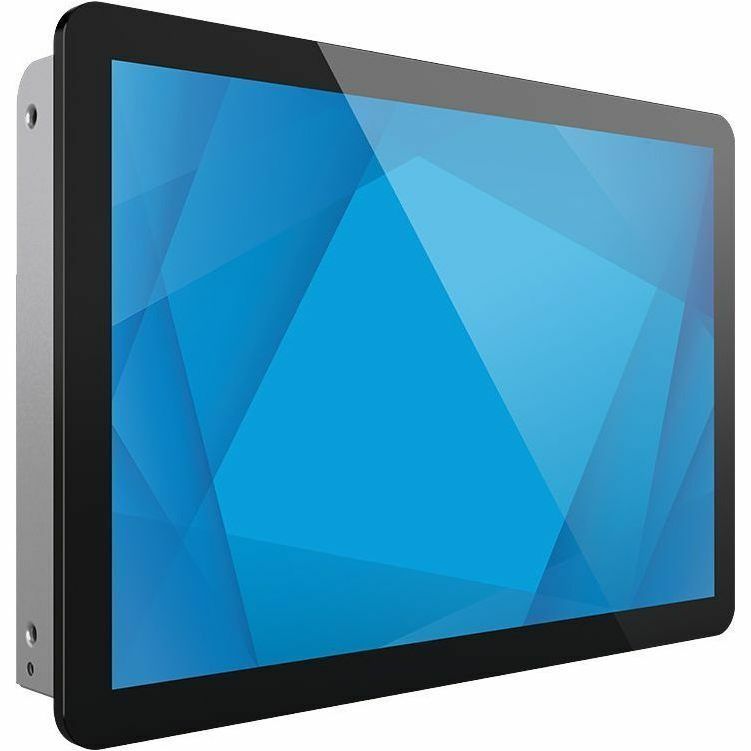

Elo E354792 Touchscreen Signage

Part Number: E354792
Model: 1099L
Add to My Shopping List Add to Compare
$962.59
Item on backorder — chat for lead time

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Ingress Protection (IP) Rating
IP66
Impact Protection (IK) Rating
IK09
Panel Technology
Thin Film Transistor (TFT)
Operation Hours
24 Hours/7 Days

Product Description:

  Touchscreen Signage, ELO 1099L, 10" Wide HD LCD WVA (1000nit LED Backlight), Outdoor Open Frame, PCAP 5-Touch, Zero-Bezel, HDMI, VGA, and Display Port, USB and RS232 Touch, Anti-Glare, No Power Brick
Explore all Elo 1099L Touchscreens
Add to Quote
Elo E354792 Touchscreen Signage
Elo E354792 Touchscreen Signage
Elo E354792 Touchscreen Signage
Elo E354792 Touchscreen Signage
Elo E354792 Touchscreen Signage
Elo E354792 Touchscreen Signage
Elo E354792 Touchscreen Signage Elo E354792 Touchscreen Signage Elo E354792 Touchscreen Signage Elo E354792 Touchscreen Signage Elo E354792 Touchscreen Signage Elo E354792 Touchscreen Signage
Full specifications (PDF)

Elo 1099L Touchscreen Model Overview

Elo's 1099L 10-inch open-frame touchscreen monitor stands out with its rugged design and exceptional visibility, making it ideal for outdoor applications. With a brightness of 1000 NITs, it ensures clear readability in direct sunlight, even while wearing polarized sunglasses. This IK09 rated, weatherproof display is perfect for various setups, from payment systems to digital signage. Enhanced by an ambient light sensor, its brightness adjusts automatically to conserve power and prolong panel life, making it a smart choice for businesses needing reliable performance in challenging environments.
Key features:
  • 1000 NIT brightness for outdoor visibility
  • IK09 impact-rated for durability
  • Wide viewing angles (horizontal & vertical: 85°/170°)
  • Multiple mounting options for flexibility
  • Integrated temperature control for operational stability

Specifications:
  • Model: 1099L
  • Active Display Area: 8.54" x 5.33" / 216.96 mm x 135.60 mm
  • Aspect Ratio: 16:10
  • Native Resolution: 1280x800
  • Brightness (typical): 1000 nits
  • Contrast Ratio: 800:1
  • Operating Temperature: -20 °C to 60 °C
  • Dimensions: 10.08" x 6.93" x 1.61" / 256 mm x 176 mm x 41 mm
  • Weight: 1.67 kg / 3.68 lbs
  • Warranty: 2 years standard
  • MTBF: 50,000 hours
Elo E354792 Touchscreen Signage Overview

10-inch weather­ proof touchscreen that covers you from day to night.

Built to perform outdoors, Elo's 1099 weatherproof

monitor offers IP66 and NEMA 4X when integrated

into an enclosure as well as IK09 impact protection.

With extended operating temperatures from -20 to

60 degrees Celsius, the integrated outdoor digital

signage display can withstand harsh physical and

thermal requirements.

Sunlight readable monitor.

To provide unmitigated performance from day to night, the

ambient light sensor automatically adjusts the display's

brightness to optimize power consumption, extend the life

of the display and enhance the viewing experience.

Outdoor kiosk | solutions.

Elo's 1099L outdoor monitor enables

you to create reliable outdoor kiosks that

will capture audiences and differentiate

your sunlight readable outdoor display.

  • Charging Stations
  • Payment & Ticketing
  • Vending Machine
  • Human Machine Interface
  • Order Pickup Lockers

Flexibility for your install.

Elo's waterproof touchscreen monitor can be mountedin landscape, portrait and upward facing orientations,providing optimal flexibility for integrating in anycounter, kiosk or cabinet design. Whether end users areviewing up close or from a distance, with or withoutpolarized sunglasses, our optically bonded outdoordigital signage display offers what you need whilemaintaining optimal clarity for the viewing experience.

Full specifications (PDF)
Technical Information
Ingress Protection (IP) Rating:
IP66
Impact Protection (IK) Rating:
IK09
Panel Technology:
Thin Film Transistor (TFT)
Operation Hours:
24 Hours/7 Days
Display & Graphics
Viewable Screen Size:
10.10"
Display Screen Type:
LCD
Touchscreen:
Yes
Multi-touch Screen:
Yes
Number of Simultaneous Touchpoints:
5
Display Resolution:
1280 x 800
Response Time:
25 ms
Aspect Ratio:
16:9
Backlight Technology:
LED
Orientation:
Landscape/Portrait
Maximum LED Life:
5.7 Year
Video
Native Contrast Ratio:
800:1
Brightness:
1000 Nit
Network & Communication
Ethernet:
Yes
Interfaces/Ports
USB:
Yes
HDMI:
Yes
DisplayPort:
Yes
Power Description
Input Voltage:
  • 12 V DC
  • 24 V DC
Environmental Conditions
Minimum Operating Temperature:
-4°F (-20°C)
Maximum Operating Temperature:
140°F (60°C)
Minimum Storage Temperature:
-22°F (-30°C)
Maximum Storage Temperature:
176°F (80°C)
Minimum Operating Humidity:
10%
Maximum Operating Humidity:
90%
Minimum Storage Humidity:
10%
Maximum Storage Humidity:
95%
Physical Characteristics
Color Family:
Black
Product Color:
Black
VESA Mount Standard:
200 x 100
Mount Type:
  • Flush Mount
  • Bracket Mount
Height:
6.9"
Width:
10"
Depth:
1.6"
Weight (Approximate):
4.85 lb
Miscellaneous
Application/Usage:
  • Outdoor
  • Kiosk
Environmental Compliance:
  • Restriction of Hazardous Substances (RoHS)
  • China Restriction of Hazardous Substances (China RoHS)
  • Waste Electrical and Electronic Equipment Directive (WEEE)
Item Numbers
GTIN: 0843173150444
UPC: 843173150444
EAN: 0843173150444
UNSPSC: 43211902

Recommended Accessories

Category

  • Cables, Connectors, and Adapters (2)
  • Customer Display Accessories (1)
  • Mounting Hardware and Stands (1)
  • Touchscreen Accessories (4)

Recommended Accessories for Model: Elo E354792 Touchscreen Signage

Top Cables, Connectors, and Adapters Purchased With Elo E354792

Top Customer Display Accessories Purchased With Elo E354792

  • Elo E610090 Accessory
    Elo E610090 Accessory
    Cables, Connectors, and Adapters, ELO, CAB-VIDEO-VGA, 1.8M, BLK-R
    Item on backorder — chat for lead time
    $34.02
    Add to Quote

Top Mounting Hardware and Stands Purchased With Elo E354792

Top Touchscreen Accessories Purchased With Elo E354792

  • Elo E483757 Accessory
    Elo E483757 Accessory
    Spare Part, ELO, Replacement OSD Controller (Wired Remote) for the 3201L/4201L/7001L
    In Stock
    $53.50
    Add to Quote
  • Elo E582895 Accessory
    Elo E582895 Accessory
    Cables, Connectors, and Adapters, ELO, 1.8M Display Port to Display Port Video Cable
    Item on backorder — chat for lead time
    $46.78
    Add to Quote
  • Elo E538507 Accessory
    Elo E538507 Accessory
    Cables, Connectors, and Adapters, ELO, ELO Cable Kit, DVI-D to HDMI Converter
    Item on backorder — chat for lead time
    $28.95
    Add to Quote
See All Touchscreen Accessories for Elo E354792 Touchscreen Signage >

Frequently Asked Questions

The Elo 1099L features an impressive 1000 NITs brightness and an optically bonded, weather-resistant display that performs reliably round-the-clock, even under direct sunlight. Its IK09 vandal resistance rating and edge-to-edge glass design make it exceptionally durable for outdoor installations where seamless integration into enclosures is required.

This model supports multiple connectivity standards including HDMI, VGA, and Display Port for video input, along with USB and RS232 for touch interface communication. These versatile connection options make it compatible with a wide range of control systems and displays used in payment systems, signage, and charging station applications.

Yes, the Elo 1099L can be read with polarized sunglasses, which is a significant advantage for outdoor applications where users may be wearing eyewear in bright sunlight. This capability, combined with its 1000 NITs brightness, ensures excellent visibility in challenging lighting conditions.

The Elo E354792 features PCAP 5-Touch (projected capacitive) technology, which provides reliable multi-touch responsiveness for interactive outdoor signage and payment applications. This technology is responsive and durable for high-traffic environments.

We offer the Elo 1099L for applications including payment systems, outdoor signage, and charging stations where durability, brightness, and weather resistance are essential. Its zero-bezel design and weather-resistant construction make it perfect for seamless integration into outdoor enclosures.

No, the Elo E354792 is designed without a power brick, offering a more streamlined installation for outdoor environments. Contact us today at barcodesinc.com to learn more about power requirements and integration options for your specific application.

The Elo E354792 Touchscreen Signage is also known as ELO-E354792 or E354792.
