Elo E344260 Touchscreen Signage

Elo 4363L Touchscreen Model Overview

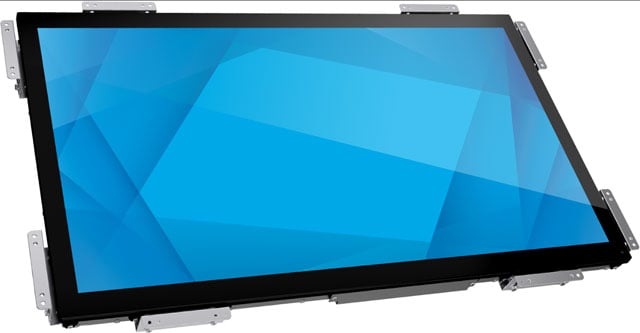

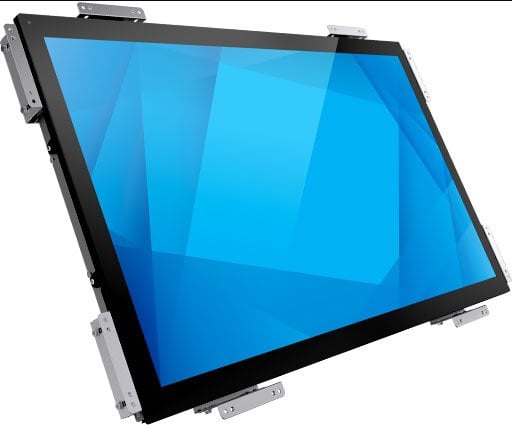

Elo's 4363L 42.5-inch LCD Open-Frame Touchscreen revolutionizes interactivity with its sleek design and robust performance. This commercial-grade monitor features a vivid full HD display and Touch Pro® PCAP technology, allowing for up to 40 simultaneous touches, ensuring an intuitive and engaging user experience. Ideal for use in retail, hospitality, and healthcare environments, the 4363L is built for 24/7 operation with exceptional durability, meeting UL60950 and IK07 standards for impact resistance. Designed to conserve energy with Energy Star 8.0 certification, this touch monitor pairs seamlessly with various enclosures and mounting orientations.

Key Features

42.5-inch Full HD Open-Frame Display: Exceptional clarity and brightness.
Touch Pro® PCAP Technology: Supports palm rejection and through touch capability.
Multi-Touch Support: Up to 40 simultaneous touches for enhanced interactivity.
Energy Star 8.0 Certified: Designed for optimal energy efficiency.
Robust Durability: Exceeds impact resistance standards (UL60950 & IK07).

Specifications

Model: 4363L
Color: Black
Diagonal Size: 42.5" (1080 mm)
Native Resolution: 1920 x 1080 @ 60Hz
Brightness: LCD Panel 450 nits; TouchPro PCAP 387 nits
Touch Technology: TouchPro® PCAP - up to 40 touches
On-Screen Display: Accessible via switches
I/O Ports: HDMI x2, USB 2.0 Type B, RJ45, VGA
Operating Temperature: 0° C to 40° C
Weight: Unpackaged: 37.77 lbs; Packaged: 50.79 lbs
Warranty: 3 years standard; extended options available

Elo E344260 Touchscreen Signage Overview

4363L 43-inch Full HD Open-Frame | The perfect touchscreen for any enclosure.

Elo's 4363L 43-inch full HD open-frame delivers a state-of-the-art slim form factor designed for easy integration into enclosures and kiosks. Whether for self-order and self-checkout kiosks or industrial controls, operating room control boards and way finding solutions, Elo's commercial-grade interactive displays offer the versatility to add touch to your solution.

Brilliant,interactive TouchPro PCAP display.

The 4363L offers anti-glare or anti-friction models with edge-to-edge glass and up to 40 simultaneous touches for an enhanced, tablet-like experience.

Designed for easy integration.

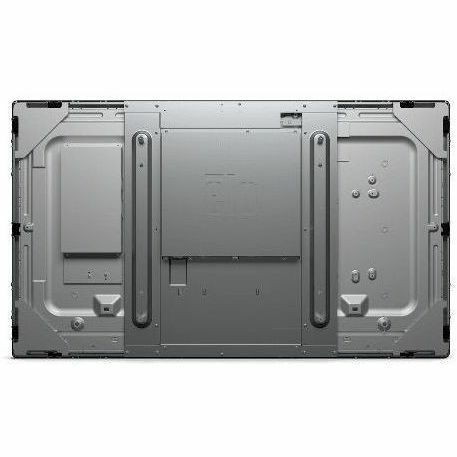

Mount the 4363L touchscreen monitor in landscape, portrait and upward facing orientations, providing optimal flexibility for integrating in any counter, kiosk or cabinet design.

Get the viewing experience you want to see.

Whether viewing straight on or at an angle, close-up or from a distance, Elo's touchscreen displays offer optimal clarity for the viewing experience.

Place your touchscreen behind an extra layer of protection.

For installations that require specific IP ratings or protection from vandalism and harsh environments, Elo's TouchPro PCAP displays offer touch thru capability. With touch thru technology, the display can be mounted behind a front layer of glass up to 6 mm or plastic up to 3 mm to create a fully enclosed kiosk.

Make your digital transformation faster,and more affordable.

Elo Essential Edge™ for Android offers everything you need to build and operate interactive solutions for your business.

The Elo Back pack brings computing power that scales.

With the Elo Backpack you get a powerful, commercial-grade Android compute engine purpose-built to fit in compact spaces. Boasting a small footprint in both size and weight, the Elo Backpack can secure inside any kiosk with the built-in VESA mount. Scaling Elo's commercial Android platform across sizes and form factors has never been easier.

More from the Manufacturer

Detailed Specs

Full specifications (PDF)

Technical Information

Screen Size Class:

43"

Viewable Screen Size:

42.5"

Screen Mode:

Full HD

Panel Technology:

Thin Film Transistor (TFT)

Response Time:

8 ms

Aspect Ratio:

16:9

Horizontal Viewing Angle:

178°

Vertical Viewing Angle:

178°

Mount Type:

Flush Mount

Backlight Technology:

LED

HDCP Supported:

Yes

Features:

Anti-glare
Edge-to-Edge Glass Design
On-screen Display (OSD)
Ambient Light Sensor

Horizontal Frequency:

31.50 kHz to 80 kHz

Vertical Frequency:

47 Hz to 63 Hz

Operation Hours:

24 Hours/7 Days

Ingress Protection (IP) Rating:

IP65

Video

Maximum Resolution:

1920 x 1080

Color Supported:

16.7 Million Colors

Native Contrast Ratio:

4,000:1

Brightness:

450 Nit

Touchscreen Information

Touchscreen Type:

Projected Capacitive

Multi-touch Screen:

Yes

Number of Simultaneous Touchpoints:

40

Interfaces/Ports

HDMI:

Yes

USB:

Yes

VGA:

Yes

USB Type-C:

Yes

Total Number of HDMI Ports:

2

Power Description

Operating Power Consumption:

44.30 W

Frequency:

50 Hz
60 Hz

Physical Characteristics

VESA Mount Compatible:

Yes

VESA Mount Standard:

400 x 400

Color Family:

Black

Product Color:

Black

Height:

23.1"

Width:

39.3"

Depth:

2.6"

Weight (Approximate):

37.85 lb

Miscellaneous

Package Contents:

4363L 42.5-inch LCD Open-Frame Touchscreen
Quick Install Guide
HDMI 1.4 Cable (Type A plug to Type A plug)
VGA Cable (DB-15 male to DB-15 male)
USB Cable (Type A plug to Type B plug)
RJ45 Wired OSD Remote
IEC 60320-C13 to NA Plug
Power Cable
8 x Flushmount Brackets
48 x Screws
Foam Gasket

Energy Star:

Yes

Environmentally Friendly:

Yes

Energy Efficiency Certification:

ENERGY STAR 7.0
ENERGY STAR 8.0

Energy Efficiency Compliance:

Korea E-Standby

Environmental Compliance:

China Restriction of Hazardous Substances (China RoHS)
Restriction of Hazardous Substances (RoHS)
Waste Electrical and Electronic Equipment Directive (WEEE)

Warranty

Limited Warranty:

3 Year

Item Numbers

GTIN: 0843173126937

UPC: 843173126937

EAN: 0843173126937

UNSPSC: 43211903

Reviews

Accessories

Recommended Accessories

Recommended Accessories for Model: Elo E344260 Touchscreen Signage

Top Computer Components Purchased With Elo E344260

Elo E393359 Accessory
Compute Engine, Elo Backpack 4, Standard Model, USB/Ethernet/Bluetooth/Wi-Fi, HDMI, USB-C output, Micro-SD, GPIO, Qualcomm 660 4GB RAM, 64GB Storage, Android 10, Google Mobile Services, Black, Compatible with I-Series 4.

Item on backorder — chat for lead time

$643.61

Add to Quote
Elo E393754 Accessory
Computer Components, Elo Backpack 4 Value, Android 10 with GMS, Rockchip 3399 Processor, 4GB RAM/32GB Flash, HDMI and USB-C out, Wi-Fi/Ethernet/Bluetooth 5.0, EloView Compatible, Black, Worldwide

In Stock

$655.64

Add to Quote

Top Digital Signage Display Accessories Purchased With Elo E344260

Elo E066148 Accessory
Stylus, ELO, Stylus Touchpen for PCAP Systems, Minimum Order Quantity: 10

In Stock

$33.09

Add to Quote

Top Touchscreen Accessories Purchased With Elo E344260

Elo E483757 Accessory
Spare Part, ELO, Replacement OSD Controller (Wired Remote) for the 3201L/4201L/7001L

In Stock

$53.50

Add to Quote

See All Accessories for Elo E344260 Touchscreen Signage >

Service Contracts

FAQs

Frequently Asked Questions

What size is the Elo E344260 touchscreen and what resolution does it offer?

The Elo E344260 is a 43-inch wide LCD open-frame monitor with full HD resolution, delivering crisp visuals suitable for retail, hospitality, healthcare, and industrial signage applications. Its compact open-frame form factor allows it to fit into practically any enclosure, making it highly versatile for custom installations.

How many simultaneous touches does the Elo 4363L support and what is the touch technology?

The Elo 4363L features TouchPro PCAP (projected capacitive) technology that supports up to 40 simultaneous touches, providing a tablet-like interactive experience. The display includes palm rejection and through-touch capabilities up to 6mm, allowing operation even when wearing protective gloves for greater versatility in demanding environments.

What connectivity options are available on the Elo E344260?

The Elo E344260 offers VGA and HDMI 1.4 video inputs along with USB connectivity, providing flexible integration options with various control systems and peripherals. These connection standards ensure compatibility with most modern point-of-sale, kiosk, and signage control platforms.

Is the Elo 4363L durable enough for 24/7 continuous operation?

Yes, the Elo 4363L is engineered for 24/7 usage and delivers high impact resistance by meeting UL60950 ball-drop and IK07 impact immunity criteria. Its anti-glare glass and robust construction make it ideal for demanding kiosk environments in retail, hospitality, healthcare, and industrial sectors.

What display features does the TouchPro technology provide?

The Elo 4363L's TouchPro PCAP anti-friction and anti-glare displays feature edge-to-edge glass with dazzling and engaging visuals. The anti-glare coating reduces reflections while maintaining touch responsiveness, making the display suitable for high-traffic public-facing applications.

Is the Elo E344260 energy efficient?

Yes, the Elo 4363L holds Energy Star 8.0 certification, indicating excellent energy conservation that reduces power consumption and heat dissipation. This makes it an environmentally responsible choice for continuous-operation signage and kiosk deployments.
