Elo E338457 Touchscreen

The Elo E338457 Touchscreen has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.

Elo 1528L Medical - Elo 1528L 15" LCD Touchscreen Monitor - 4:3 - 8 ms - 15" Class - 5-wire Resistive - 1024 x 768 - XGA - Adjustable Display Angle - 16.2 Million Colors - 400:1 - 350 Nit - Speakers - DVI - USB - VGA - Beige

The XGA lcd touchscreen monitor is perfect for point-of-sale, hospitality, and many other retail applications
5-wire Resistive technology can be activated with virtually any object such as a stylus, gloved hand, pen and your fingers
The XGA touchscreen highlights XGA display with the resolution of up to 1024 x 768 pixels
The 400:1 contrast ratio produces enhanced sharpness and shading accuracy in each picture
The 350 Nit brightness gives an exceptionally visible display for clear and consistent on-screen pictures

Need a different version? See all Elo 1528L Medical Touchscreens

Discontinued Need Assistance?

Add to Quote

Overview

Full specifications (PDF)

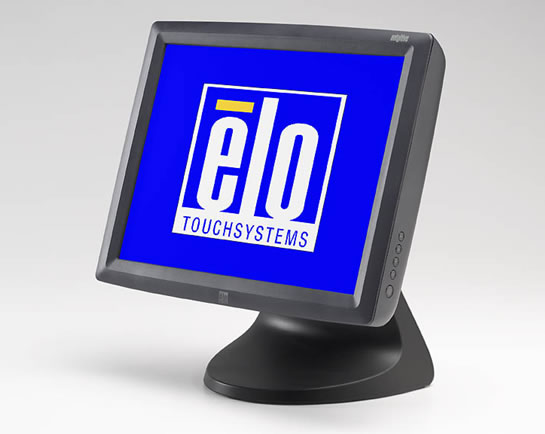

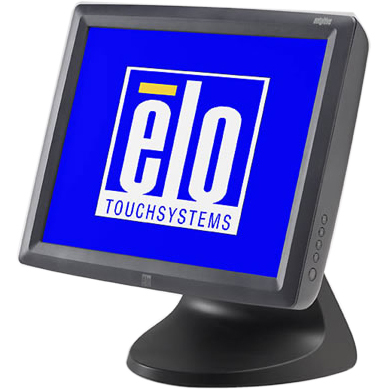

Elo 1528L Medical Touchscreen Model Overview

Elo's 1528L Medical 15" LCD Medical Desktop touchmonitor delivers cost-effective solutions for critical care and patient-centric professionals in the medical and healthcare markets. This compact touch monitor is "designed for touch" with Elo's proven expertise and reliability built in from the start. Simplified worldwide approvals cover the entire monitor that is designed, built, serviced, and supported by Elo, a true single source supplier. This monitor can be safely placed in patient care areas, such as the operating room, where contamination may occur.

Elo E338457 Touchscreen Overview

The 1528L 15" LCD medical desktop touchmonitor is an integrated solution for medical equipment OEMs and healthcare system integrators seeking a reliable, durable and cost-effective touchmonitor. Typical applications include patient self-service, nurse station and medical OEMs. This monitor can be safely placed in patient care areas, such as the operating room, where contamination may occur. The touchmonitor's innovative IPX1 enclosure design, coupled with the addition of a special gasket, sheds water and resists liquid drops and spills.

The 1528L is available with IntelliTouch surface wave touch technology or AccuTouch five-wire resistive touch technology. AccuTouch is the most widely used technology for medical equipment applications. AccuTouch touchscreens can be activated with a gloved hand or any stylus - an important feature for medical applications.

Detailed Specs

Full specifications (PDF)

Technical Information

Screen Size Class:

15"

Viewable Screen Size:

15"

Screen Mode:

XGA

Response Time:

8 ms

Aspect Ratio:

4:3

Horizontal Viewing Angle:

150°

Vertical Viewing Angle:

125°

Adjustable Display Angle:

Yes

Features:

Security Lock

Video

Maximum Resolution:

1024 x 768

Color Supported:

16.2 Million Colors

Contrast Ratio:

400:1

Brightness:

350 Nit

Audio

Speakers:

Yes

Touchscreen Information

Touchscreen:

Yes

Touchscreen Type:

5-wire Resistive

Interfaces/Ports

DVI:

Yes

USB:

Yes

VGA:

Yes

Serial Port:

Yes

Power Description

Operating Power Consumption:

48 W

Standby Power Consumption:

6 W

Physical Characteristics

VESA Mount Compatible:

Yes

VESA Mount Standard:

75 x 75

Product Color:

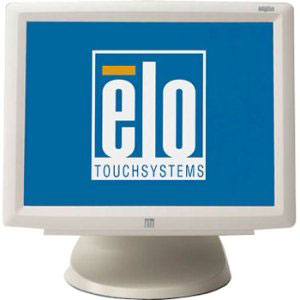

Beige

Height with Stand:

13.80"

Width with Stand:

14"

Depth with Stand:

Weight (Approximate):

10.80 lb

Item Numbers

GTIN: 5054484195238, 7411493314186

EAN: 5054484195238, 7411493314186

UNSPSC: 43211903

Reviews

Q&A

Accessories

Questions? Get help from
a POS Expert!

The Elo E338457 Touchscreen is also known as ELO-E338457 or E338457.
