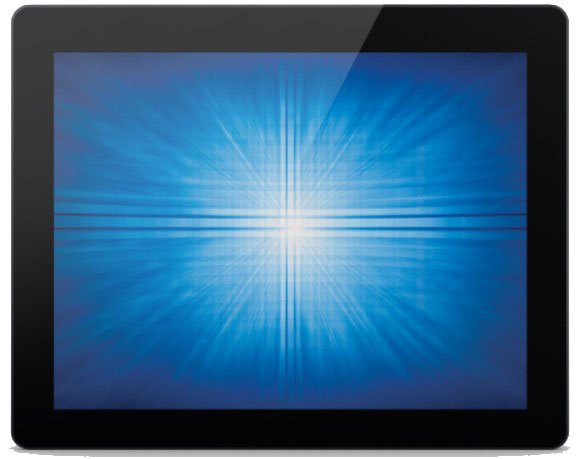

The Elo 1590L 15-inch Open-Frame Touch Display is engineered with advanced touch technology and designed to deliver exceptional reliability for various applications including kiosks, retail self-service, and industrial automation. With a sleek design and energy-efficient LED backlight, this touch display not only enhances usability but also minimizes power consumption. Featuring a choice of industry-leading touch technologies, this display ensures precise, drift-free operation, making it an ideal solution for demanding environments. Backed by a three-year warranty, the Elo 1590L is a perfect blend of performance and value.
Key features
Choice of Elo touch technologies: IntelliTouch SAW, SecureTouch anti-vandal SAW, AccuTouch five-wire resistive, or Projected Capacitive (PCAP).
Zero-bezel design for a seamless look and enhanced touch durability.
Power Consumption: 16W (ON), 1.2W (SLEEP), 0.5W (OFF)
Weight: Unpackaged: 6.4 lbs (2.9 kg)
Warranty: 3 years standard
Elo E334530 Touchscreen Overview
The Elo 1590L 15-inch open-frame LCD touch display features a slim design and narrow outside dimensions due to the state-of-the-art, energy-saving LED backlight, using less electricity to operate and generating less heat. This compact touch display is designed for touch, with proven Elo expertise and reliability built in. The 1590L provides stable, drift-free operation with outstanding image clarity and light transmission-for accurate touch responses and vivid images. Instantly grabbing and holding users' attention, the 15-inch open frame is perfect for kiosks, casino and amusement, retail self-service, and industrial automation environments.
Easily integrated.
The touchscreen is sealed against dirt, dust and liquids, which simplifies integration into the final enclosure. Projected capacitive (PCAP) units can be sealed into a solution and obtain an IP65 rating on the front side of the unit. With the design and tooling being controlled by Elo, long-lasting product availability can be expected.
Touch ready.
The 1590L is available with a choice of industry-leading single-touch or multi-touch technologies. The seamless zero-bezel 15-inch multi-touch display is available with our latest TouchPro™ PCAP two-glass solution (2GS) technology that delivers both a 10-touch tablet-like experience along with two-touch thru-glass functionality-both modes support single or dual latex gloves as well as cloth gloves. Standard bezel, single-touch display options include AccuTouch® five-wire resistive, IntelliTouch® SAW or SecureTouch® anti-vandal SAW.
Commercial-grade.
The Elo open frame touchscreen display delivers the quality and reliability Elo is known for, and is backed by our three-year standard warranty. We design, build and are responsible for the complete solution, with touch integrated from the start. Using our touchscreens combined with our software and drivers, everything is designed to work together and is tested as part of our life-testing processes. All our products go through rigorous reliability testing (over 20 tests) to deliver 50,000 MTBF.
Other features.
Projected capacitive (PCAP) two glass solution (2GS) offers pristine optical clarity and touch durability that passes UL-60950 & IK-07 impact testing
Display Port and VGA video interfaces
10-touch TouchPro projected capacitive (PCAP) with two-touch thru-glass capabilities
What are the key features of the Elo E334530 1590L touchscreen?
The Elo 1590L is a 15-inch open-frame LCD touchscreen with a 1024 x 768 resolution and 4:3 aspect ratio, delivering 264 nits brightness and 700:1 contrast ratio. It features SecureTouch single-touch technology, an energy-saving LED backlight that reduces power consumption and heat generation, and anti-glare coating for clear visibility. The display is designed for drift-free operation and accurate touch responses, making it ideal for commercial and industrial applications.
What connectivity options does the Elo 1590L touchscreen offer?
The Elo 1590L provides multiple video interface options including HDMI, VGA, and Display Port, allowing flexible integration with various systems and equipment. Touch input is handled through a USB controller interface, and the display includes an RJ45 OSD remote for on-screen menu control. We offer this model fully equipped with HDMI and VGA cables included in the box.
Is the Elo E334530 suitable for kiosk and retail applications?
Yes, the Elo 1590L is specifically designed for kiosk and retail self-service environments, as well as gaming, casino, and amusement applications. Its open-frame design, reliable touch response, and vivid image clarity make it an excellent choice for customer-facing self-service solutions. The industrial-grade construction ensures dependable performance in high-traffic commercial settings.
What makes the Elo 1590L suitable for industrial automation?
The Elo 1590L delivers industrial-grade reliability with proven Elo expertise built into its design, featuring stable drift-free operation and accurate touch responses required for automation environments. Its energy-efficient LED backlight and compact slim design reduce operational costs and heat generation, while the open-frame construction provides the versatility needed for integration into industrial control systems and automation applications.
What is included in the box with the Elo E334530?
The Elo 1590L ships with an HDMI cable, VGA cable, RJ45 OSD remote, USB touch cable, quick install guide, L-shaped side mount brackets with screws, and regulatory documentation including an EEI label and Japan Class-B information sheet. The display does not include a power brick, allowing for flexible power integration into your system.
What warranty and support does the Elo 1590L come with?
The Elo E334530 1590L includes a 3-year warranty, providing extended coverage for your investment. Contact us today at barcodesinc.com for detailed warranty terms, technical support, and assistance with integration or configuration questions.
The Elo E334530 Touchscreen is also known as
ELO-E334530
or E334530.
Full specifications (PDF)
