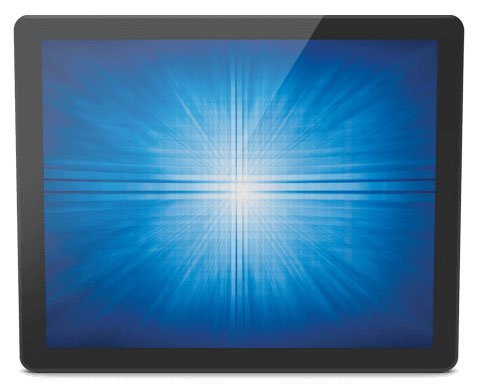

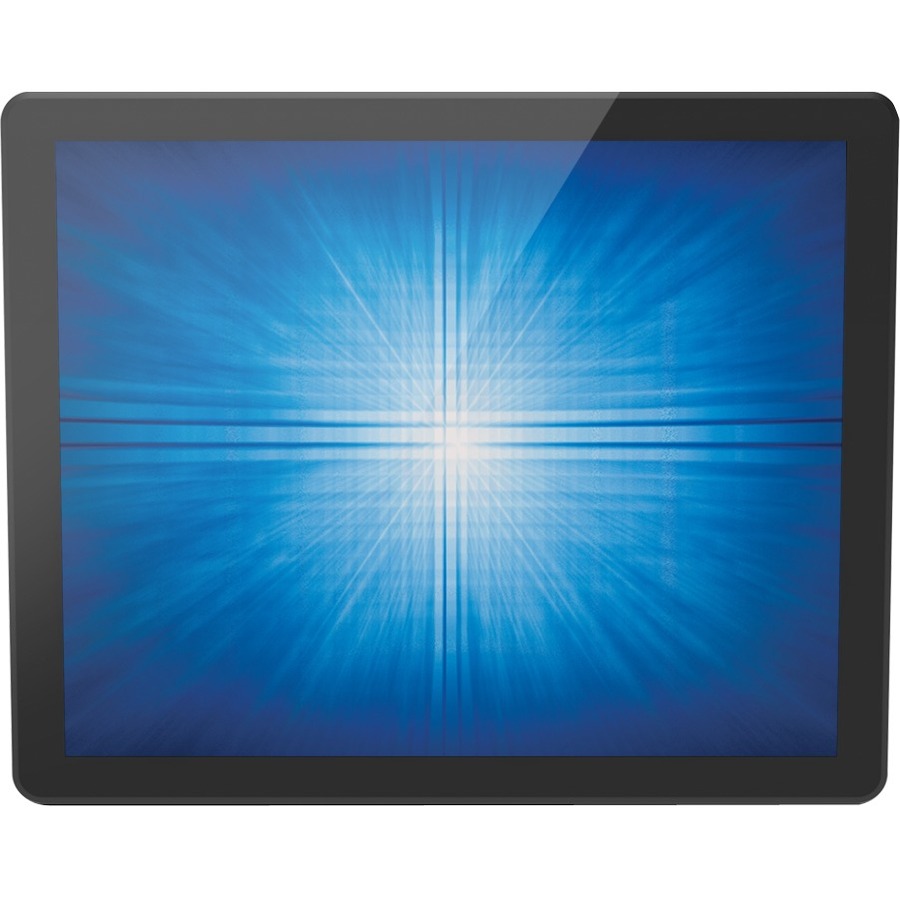

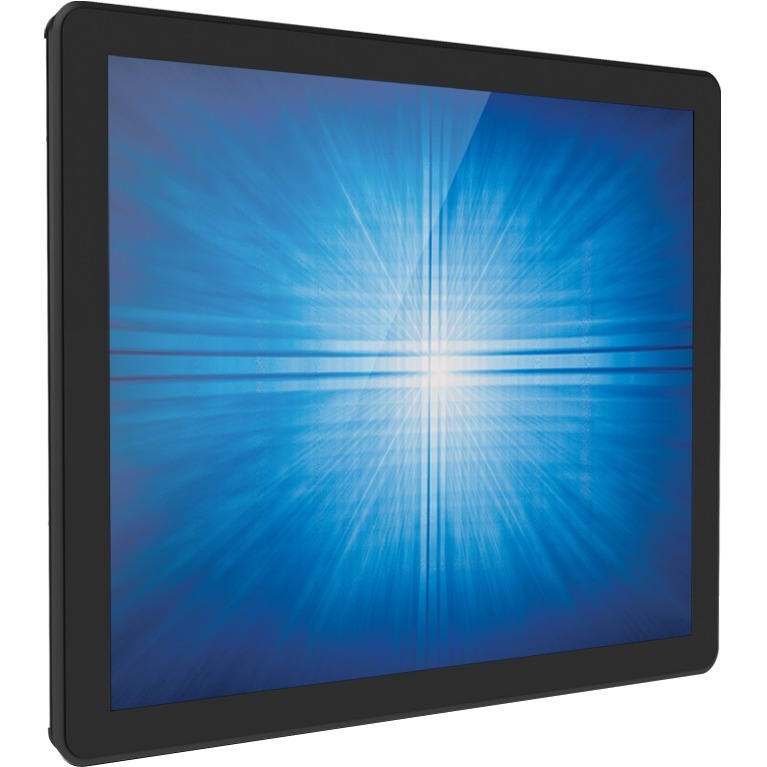

The Elo 1291L 12.1-inch Open-Frame Touch Display is engineered for superior reliability and performance, featuring a pure-glass touchscreen that delivers exceptional image quality. With a sleek design and innovative energy-efficient LED backlighting, this compact display is perfect for a range of applications including kiosks, gaming machines, retail self-service, and industrial automation. The 1291L ensures a stable, drift-free experience, while its sealed touchscreen protects against dirt, dust, and liquids. Designed for integration, this display supports various advanced touch technologies, including multi-touch functionality, making it a versatile choice for any project.
Key Features
Choice of Touch Technologies: IntelliTouch SAW and Projected Capacitive (PCAP) options available.
Outstanding Durability: Sealed against dirt, and liquids for longevity.
Energy Efficient: LED backlighting reduces power consumption with a slim profile.
Thru-glass Functionality: Supports latex and cloth gloves for enhanced usability.
Comprehensive Support: Backed by extensive worldwide agency approvals.
Specifications
Model: 1291L
Screen Size: 12.1 inches (diagonal)
Native Resolution: 800 x 600 @ 60Hz
Brightness: 450 nits
Response Time: 25 ms
Contrast Ratio: 1500:1
Viewing Angle: 89°/178° horizontal and vertical
Video Interfaces: VGA and DisplayPort
Power Consumption: 15W (ON), 1.5W (SLEEP), 0.5W (OFF)
Operating Temperature: 0 °C to 40 °C
Weight: 5.8 lbs (unpackaged)
Warranty: 3 years standard
Elo E331595 Touchscreen Overview
The Elo 1291L 12-inch open-frame LCD touchscreen features a slim design and narrow outside dimensions thanks to the state-of-the-art, energy-saving LED backlight, using less electricity to operate and generating less heat. This compact display is designed for touch with proven Elo expertise and reliability built in. The 1291L provides stable, drift-free operation with outstanding image clarity and light transmission-for accurate touch responses and vivid images. Featuring a brilliant wide viewing angle panel, the open-frame touchscreen instantly grabs and holds the users' attention for kiosks, casino and amusement, retail self-service, and industrial automation environments.
Easily integrated.
The touchscreen is sealed against dirt, dust and liquids, which simplifies integration into the final enclosure. Projected capacitive (PCAP) units can be sealed into a solution and obtain an IP65 rating on the front side of the unit. With the design and tooling being controlled by Elo, long-lasting product availability can be expected, as well as backwards compatibility, helping to minimize enclosure costs.
Touch ready.
Available with a choice of industry-leading single-touch or multi-touch technologies, including IntelliTouch® single-touch surface acoustic wave (SAW) touchscreen technology, and Elo's latest TouchPro™ PCAP two glass solution (2GS) 10-touch with Zero-bezel, offering pristine optical clarity and touch durability.
Commercial-grade.
The Elo open frame touchscreen display delivers the quality and reliability Elo is known for, and is backed by our three-year standard warranty. We design, build and are responsible for the complete solution, with touch integrated from the start. Using our touchscreens combined with our software and drivers, everything is designed to work together and is tested as part of our life testing processes. All our products go through rigorous reliability testing (over 20 tests) to deliver 50,000 MTBF.
Other features.
Viewing angle of 178° (h) x 178° (v), for sharp colors and graphics in both portrait and landscape modes
10-touch TouchPro projected capacitive (PCAP) with two-touch thru-glass capabilities
Projected capacitive (PCAP) two glass solution (2GS) offers pristine optical clarity and touch durability that passes UL-60950 & IK-07 impact testing
The Elo E331595 Touchscreen is also known as
ELO-E331595
or E331595.
