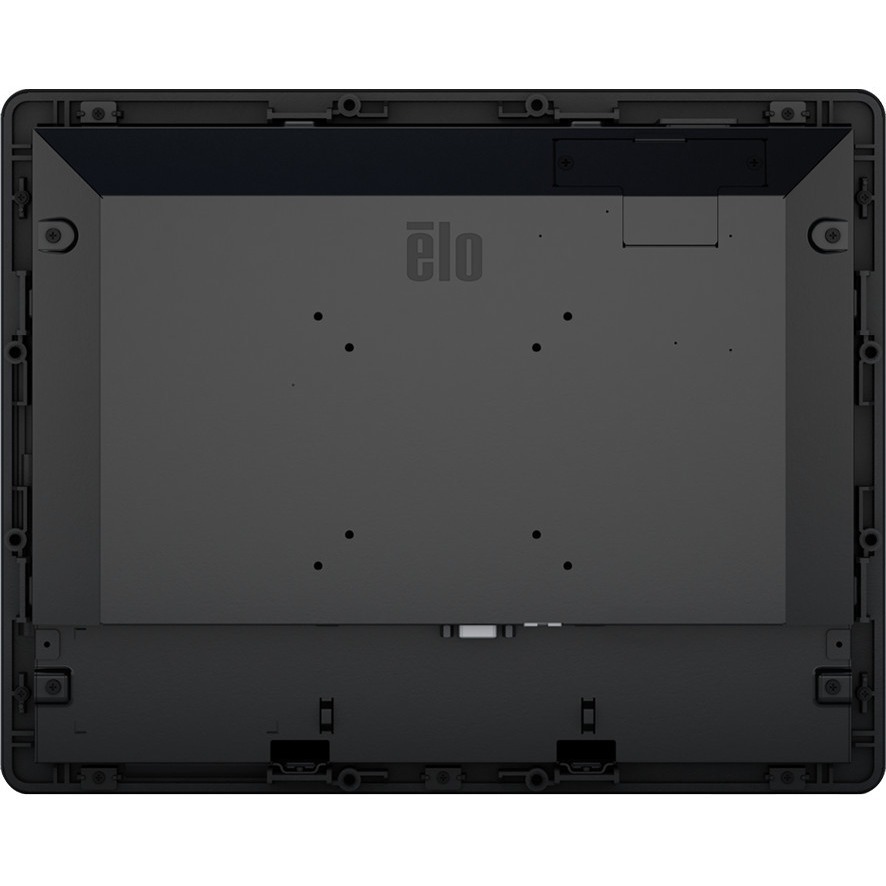

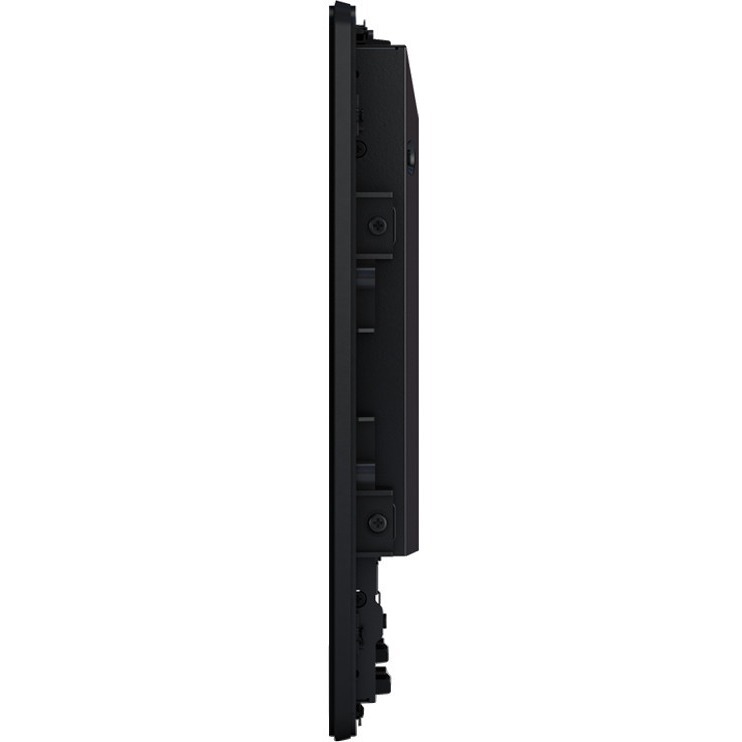

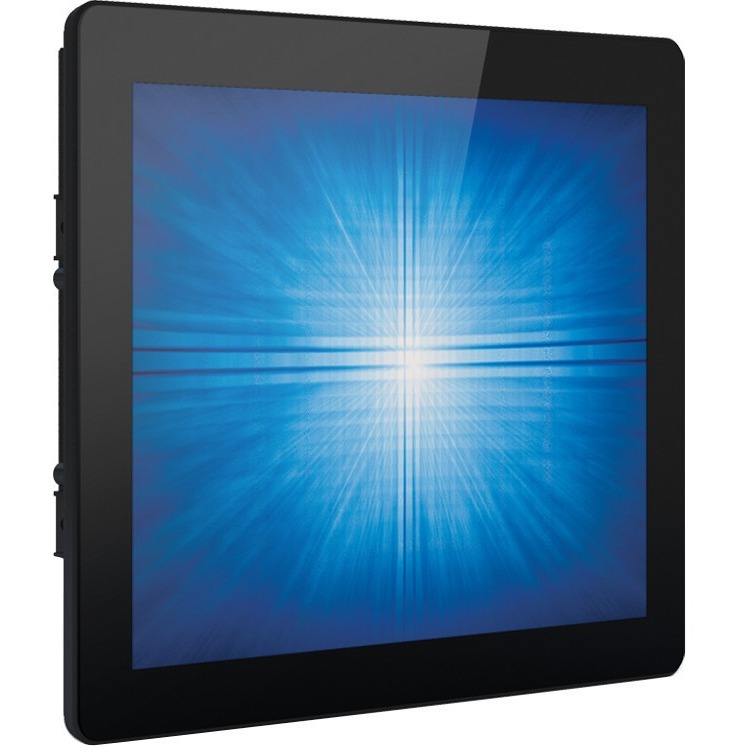

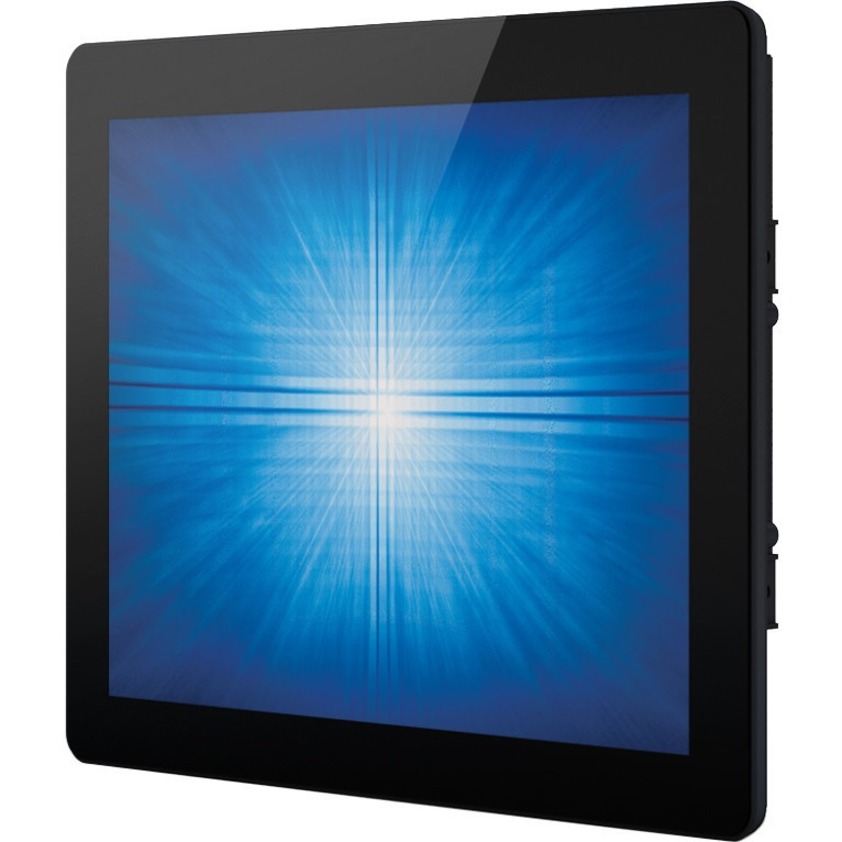

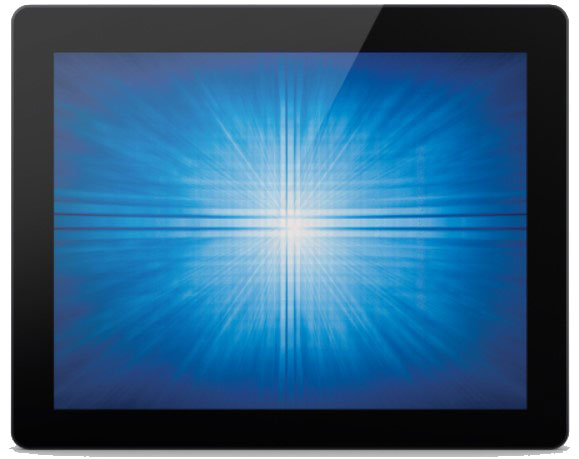

Elo E326154 Touchscreen

Part Number: E326154
Model: 1590L
to get Free Ground Shipping on your order.
Add to My Shopping List Add to Compare
$646.42
In Stock

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Screen Size Class
15"
Viewable Screen Size
15"
Screen Mode
XGA
Response Time
16 ms

Product Description:

  15" Touchscreen Monitor, Elo 1590L, Open-Frame LCD, 4:3 Aspect Ratio, AccuTouch Single-Touch, 1024 x 768, 16.2 million Colors, 240 nits Brightness (typical), LED Backlight, 700:1 Contrast Ratio (typical), HDMI, VGA & Display Port Video Interface, USB Touch Controller Interface, Anti-Glare, Bezel, (Side Mount) Brackets, Black, 3-Year Warranty, No Power Brick, Worldwide. Box Includes HDMI Cable (Part# E538507), VGA Cable, RJ45 OSD Remote (Part# E483757), Touch USB Cable, Quick Install Guide, EEI Label, Japan Class-B TM Info Sheet, (Side Mount) Brackets and w/Screws (Part# E203787).
Explore all Elo 1590L Digital Signage Displays
Add to Quote
Elo E326154 Touchscreen
Elo E326154 Touchscreen
Elo E326154 Touchscreen
Elo E326154 Touchscreen
Elo E326154 Touchscreen
Elo E326154 Touchscreen
Elo E326154 Touchscreen Elo E326154 Touchscreen Elo E326154 Touchscreen Elo E326154 Touchscreen Elo E326154 Touchscreen

Full specifications (PDF)

Elo 1590L Digital Signage Display Model Overview

The Elo 1590L 15-inch Open-Frame Touch Display is engineered with advanced touch technology and designed to deliver exceptional reliability for various applications including kiosks, retail self-service, and industrial automation. With a sleek design and energy-efficient LED backlight, this touch display not only enhances usability but also minimizes power consumption. Featuring a choice of industry-leading touch technologies, this display ensures precise, drift-free operation, making it an ideal solution for demanding environments. Backed by a three-year warranty, the Elo 1590L is a perfect blend of performance and value.


Key features
  • Choice of Elo touch technologies: IntelliTouch SAW, SecureTouch anti-vandal SAW, AccuTouch five-wire resistive, or Projected Capacitive (PCAP).
  • Zero-bezel design for a seamless look and enhanced touch durability.
  • 10-touch capability with Thru-glass features, passing rigorous UL-60950 & IK-07 Impact testing.
  • Ideal for casino games, kiosks, and industrial automation.

Specifications
  • Model: 1590L
  • Color: Black
  • Active Display Area: 304 x 228 mm / 12 x 9 inches
  • Diagonal: 15"
  • Native Resolution: 1024 x 768
  • Brightness: 250 nits (LCD Panel)
  • Response Time: 16ms
  • Viewing Angle: Horizontal 80°/160°, Vertical 70°/140°
  • Contrast Ratio: 700:1
  • Power Consumption: 16W (ON), 1.2W (SLEEP), 0.5W (OFF)
  • Weight: Unpackaged: 6.4 lbs (2.9 kg)
  • Warranty: 3 years standard
Elo E326154 Touchscreen Overview
The Elo 1590L 15-inch open-frame LCD touch display features a slim design and narrow outside dimensions due to the state-of-the-art, energy-saving LED backlight, using less electricity to operate and generating less heat. This compact touch display is designed for touch, with proven Elo expertise and reliability built in. The 1590L provides stable, drift-free operation with outstanding image clarity and light transmission-for accurate touch responses and vivid images. Instantly grabbing and holding users' attention, the 15-inch open frame is perfect for kiosks, casino and amusement, retail self-service, and industrial automation environments.

Easily integrated.

The touchscreen is sealed against dirt, dust and liquids, which simplifies integration into the final enclosure. Projected capacitive (PCAP) units can be sealed into a solution and obtain an IP65 rating on the front side of the unit. With the design and tooling being controlled by Elo, long-lasting product availability can be expected.

Touch ready.

The 1590L is available with a choice of industry-leading single-touch or multi-touch technologies. The seamless zero-bezel 15-inch multi-touch display is available with our latest TouchPro™ PCAP two-glass solution (2GS) technology that delivers both a 10-touch tablet-like experience along with two-touch thru-glass functionality-both modes support single or dual latex gloves as well as cloth gloves. Standard bezel, single-touch display options include AccuTouch® five-wire resistive, IntelliTouch® SAW or SecureTouch® anti-vandal SAW.

Commercial-grade.

The Elo open frame touchscreen display delivers the quality and reliability Elo is known for, and is backed by our three-year standard warranty. We design, build and are responsible for the complete solution, with touch integrated from the start. Using our touchscreens combined with our software and drivers, everything is designed to work together and is tested as part of our life-testing processes. All our products go through rigorous reliability testing (over 20 tests) to deliver 50,000 MTBF.

Other features.

  • Projected capacitive (PCAP) two glass solution (2GS) offers pristine optical clarity and touch durability that passes UL-60950 & IK-07 impact testing
  • Display Port and VGA video interfaces
  • 10-touch TouchPro projected capacitive (PCAP) with two-touch thru-glass capabilities
Full specifications (PDF)
Technical Information
Screen Size Class:
15"
Viewable Screen Size:
15"
Screen Mode:
XGA
Response Time:
16 ms
Aspect Ratio:
4:3
Mount Type:
  • Rack-mountable
  • Front Mount
Backlight Technology:
LED
Video
Maximum Resolution:
1024 x 768
Color Supported:
16.2 Million Colors
Contrast Ratio:
700:1
Brightness:
250 Nit
Touchscreen Information
Touchscreen Type:
5-wire Resistive
Interfaces/Ports
HDMI:
Yes
USB:
Yes
VGA:
Yes
DisplayPort:
Yes
Power Description
Operating Power Consumption:
12.50 W
Physical Characteristics
VESA Mount Compatible:
Yes
Product Color:
Black
Height:
10.4"
Width:
13.2"
Depth:
1.7"
Weight (Approximate):
6.40 lb
Miscellaneous
Package Contents:
  • 1590L 15" Open Frame Touchscreen (Rev B)
  • HDMI cable
  • VGA Cable
  • RJ45 OSD Remote
  • Touch USB Cable
  • User Manual CD
  • Quick Install Guide
  • "L" (Side Mount) Brackets and w/Screws
  • EEI Label
  • Japan Class-B TM info sheet
Certifications & Standards:
  • TÜV
    • Environmentally Friendly:
    Yes
    Environmental Certification:
    • RoHS
    • China RoHS
    • WEEE
    Warranty
    Limited Warranty:
    3 Year
    Item Numbers
    GTIN: 0037322598564, 0815335025785, 0818239891647, 0818240055113
    UPC: 037322598564, 815335025785, 818239891647, 818240055113
    EAN: 0037322598564, 0815335025785, 0818239891647, 0818240055113
    UNSPSC: 43211903
