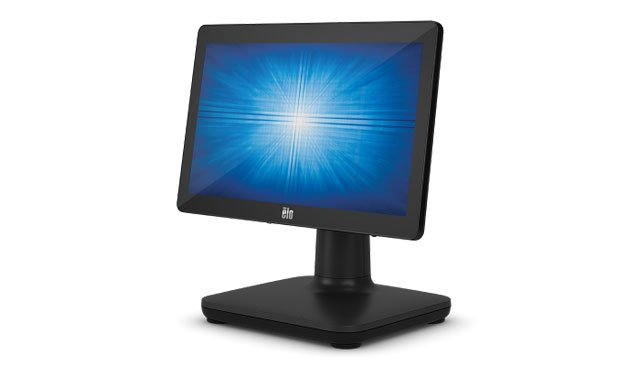

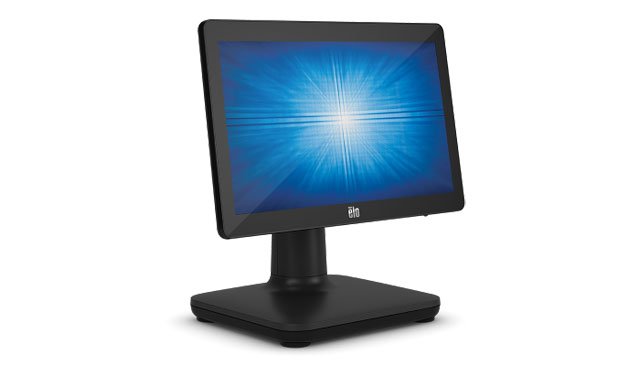

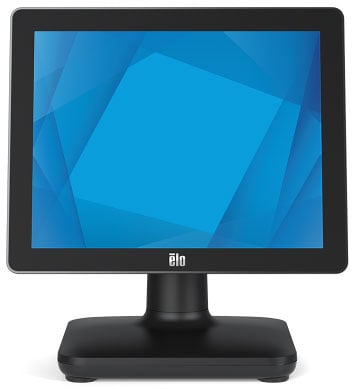

Elo 15-Inch (16:9) EloPOS POS System Model Overview
Combining modern aesthetics, modular flexibility and commercial-grade reliability the EloPOS System was purpose-built for point of sale. Equipped with a 15.6" touchscreen display, choice of Intel 8th generation processors and an integrated expansion hub to connect the peripherals you need. Designed to offer flexibility across environments whether you need a fixed-lane point of sale system or a self-order solution, the EloPOS can help ensure that every touch delivers the experience users need and customers expect.
Elo E317130 POS System Overview
EloPOS System | Modern. Modular. Made for Retail.
The versatile EloPOS System combines modern aesthetics, modular flexibility and commercial-grade reliability. Purpose-built for point of sale, EloPOS offers a 15-inch touchscreen display, choice of Intel's 9th generation processors and an integrated expansion hub to connect the peripherals you need - whether a customer facing display, payment reader, printer, cash drawer, barcode scanner or scale. From traditional POS to self-service applications, EloPOS delivers the durability needed to survive continuous public use and is backed by Elo's standard 3-year warranty.
Interactive Points of Sale
The EloPOS System is designed to offer flexibility across environments. Whether you need a fixed-lane point of sale system or a self-order solution, EloPOS can help ensure that every touch delivers the experience your employees need and your customers expect.
Technical Information
Bluetooth Standard:
Bluetooth 5.0
Processor & Chipset
Processor Manufacturer:
Intel
Maximum Turbo Speed:
3.20 GHz
Processor Model:
i3-9100TE
Memory
Memory Technology:
DDR4 SDRAM
Maximum Memory Supported:
32 GB
Storage
Solid State Drive Capacity:
128 GB
Solid State Drive Interface:
M.2/SATA
Display & Graphics
Active Display Size (Horizontal):
13.55"
Active Display Size (Vertical):
7.62"
Touchscreen Technology:
Projected Capacitive
Number of Simultaneous Touch Points:
10
Color Supported:
262,000 Colors
Horizontal Viewing Angle:
160°
Vertical Viewing Angle:
160°
Graphics Controller Manufacturer:
Intel
Graphics Controller Model:
UHD Graphics 630
Network & Communication
Ethernet Technology:
Gigabit Ethernet
Interfaces/Ports
Number of Micro USB 2.0 Ports:
4
Number of USB 3.0 Ports:
3
Number of USB Type C Ports:
1
Built-in Devices
Software
Operating System:
Windows 10 IoT Enterprise LTSC (64-bit)
Power Description
Physical Characteristics
Mount Type:
Wall Mountable Pole Mountable
Weight (Approximate):
10.80 lb
Miscellaneous
Package Contents:
EloPOS POS Terminal North America Power Cord EU Power Cord Power Adapter - 180W Cable RJ-45 to DB-9 Cable Cover Locking Screw Quick Installation Guide (QIG) Stand
Energy Efficiency Certification:
ENERGY STAR 7.1
Warranty
Item Numbers
GTIN:
0843173150321
UPC:
843173150321
EAN:
0843173150321
UNSPSC:
43211505
