Elo E309750 Touchscreen

The Elo E309750 Touchscreen has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.
Elo 1919L - Elo 1919L 19" LCD Touchscreen Monitor - 16:9 - 5 ms - 19" Class - Projected Capacitive - 1366 x 768 - WXGA - Adjustable Display Angle - 16.7 Million Colors - 1,000:1 - 250 Nit - Speakers - USB - VGA - Black, Dark Gray - WEEE, RoHS, China RoHS - 3 Year
  • Experience an energetic display of colors, contrast and pictures with the wxga lcd touchscreen monitor
  • Projective Capacitive touchscreen technology offers two essential advantages, not only can you touch the panel with your bare finger, but you can also actuate it with surgical gloves or slender cotton gloves on
  • The WXGA touchscreen highlights WXGA display with the resolution of up to 1366 x 768 pixels
  • The 1,000:1 contrast ratio produces enhanced sharpness and shading accuracy in each picture
  • Furnishes captivating visuals with about 250 Nit brightness levels
Read More
Discontinued Need Assistance?
Add to Quote

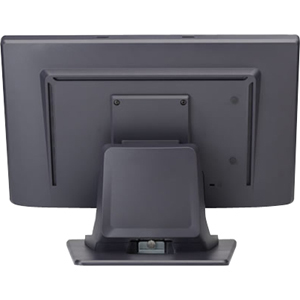

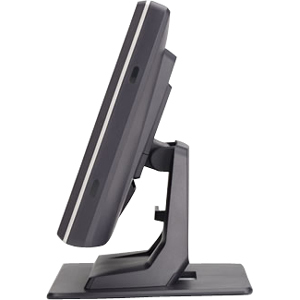

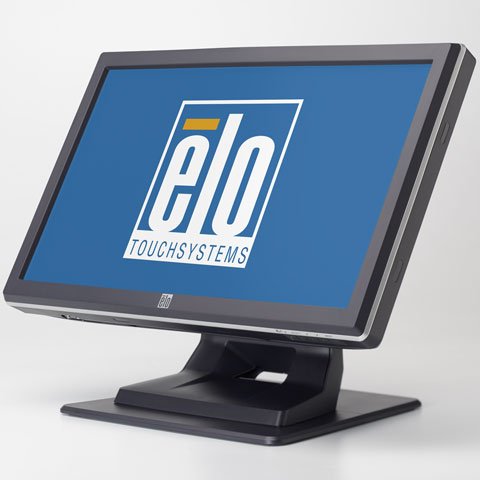

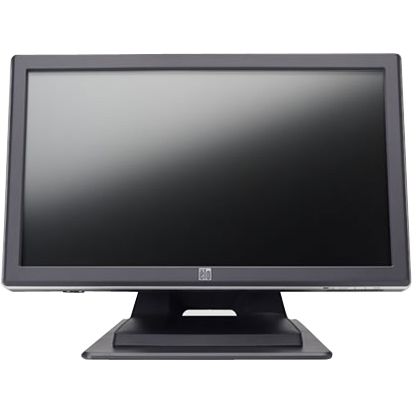

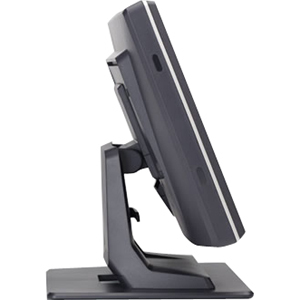

Elo 1919L Touchscreen Model Overview
The ELO 1919L is a wide-screen display that is easier to use and incorporate into more environments than traditional desktop touchmonitors. It allows extra content on the screen and is well-suited for corporate environment uses such as spreadsheets, publishing, and dual-window applications. The 1919L is available in three industry-leading ELO touch technologies: zero-bezel APR, which senses touch on the display by recognizing the unique pattern of sounds, standard-bezel IntelliTouch surface acoustic wave and zero-bezel AccuTouch 5-wire resistive. Additional applications well-suited to take advantage of the monitor's features include point-of-sale (POS), point-of-information (POI), point-of-service, interactive digital signage, loyalty systems, kiosk information systems, light industrial shop-floor automation and home control.
Elo E309750 Touchscreen Overview

The 1919L is a wide-screen display that is easier to use and incorporate into more environments than traditional desktop touchmonitors. It allows extra content on the screen and is well-suited for corporate environment uses such as spreadsheets, publishing, and dual-window applications. The 1919L is available in five industry-leading Elo touch technologies: zero-bezel APR, which senses touch on the display by recognizing the unique pattern of sounds, standard-bezel IntelliTouch surface acoustic wave, zero-bezel AccuTouch 5-wire resistive, zero-bezel iTouch surface acoustic wave which combines the pure-glass surface of IntelliTouch with the stylish glass-to-edge design of APR and projected capacitive (PCAP) for superior optical performance. Additional applications well-suited to take advantage of the monitor's features include point-of-sale (POS), point-of-information (POI), point-of-service, interactive digital signage, loyalty systems, kiosk information systems, light industrial shop-floor automation and home control.

Technical Information
Screen Size Class:
19"
Viewable Screen Size:
19"
Screen Mode:
WXGA
Response Time:
5 ms
Aspect Ratio:
16:9
Horizontal Viewing Angle:
170°
Vertical Viewing Angle:
160°
Adjustable Display Angle:
Yes
Adjustable Display Pivot:
Yes
Display Orientation:
Landscape/Portrait
Mount Type:
  • Wall Mountable
  • Arm-mountable
Video
Maximum Resolution:
1366 x 768
Standard Refresh Rate:
60 Hz
Color Supported:
16.7 Million Colors
Contrast Ratio:
1,000:1
Brightness:
250 Nit
Audio
Speakers:
Yes
Touchscreen Information
Touchscreen:
Yes
Touchscreen Type:
Projected Capacitive
Interfaces/Ports
USB:
Yes
VGA:
Yes
Headphone:
Yes
Power Description
Input Voltage:
  • 110 V AC
  • 220 V AC
Operating Power Consumption:
20.70 W
Physical Characteristics
VESA Mount Compatible:
Yes
VESA Mount Standard:
100 x 100
Product Color:
  • Black
  • Dark Gray
Height:
16"
Height with Stand:
12.60"
Width with Stand:
17.90"
Depth with Stand:
9.30"
Weight (Approximate):
10.20 lb
Weight with Stand (Approximate):
15.10 lb
Miscellaneous
Compatibility:
  • UL
  • cUL
  • NOM
  • CB
  • S-mark
  • CCC
  • VCCI
  • KC
  • KKC
  • BSMI
  • IMERC
  • CE
Platform Supported:
PC
Environmentally Friendly:
Yes
Environmental Certification:
  • WEEE
  • RoHS
  • China RoHS
Warranty
Limited Warranty:
3 Year
Item Numbers
GTIN: 0741149327886, 4054318055876, 7411493278860
UPC: 741149327886
EAN: 0741149327886, 4054318055876, 7411493278860
UNSPSC: 43211903
Questions? Get help from
a POS Expert!

What is your POS application?

The Elo E309750 Touchscreen is also known as ELO-E309750 or E309750.
