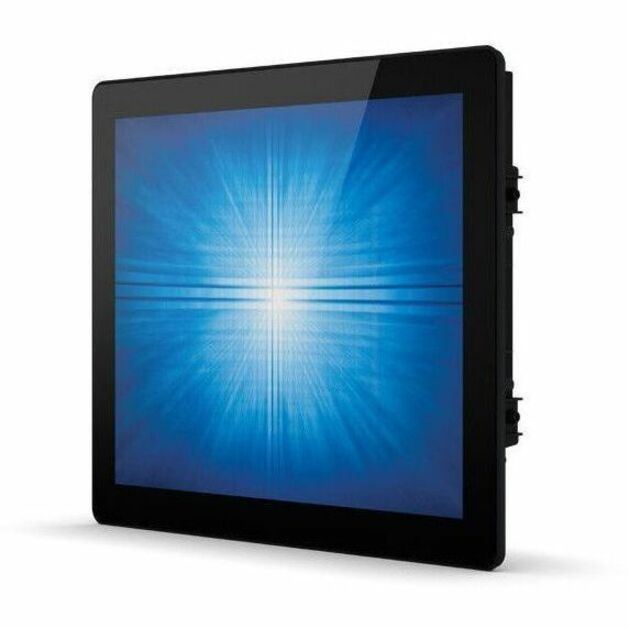

Elo E296315 POS Touch Terminal

Part Number: E296315
Model: 1790L
Add to My Shopping List Add to Compare
$681.04
Item on backorder — chat for lead time

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Screen Size Class
17"
Viewable Screen Size
17"
Screen Mode
SXGA
Panel Technology
Thin Film Transistor (TFT)

Product Description:

  POS Touch Terminal, Elo 1790L, 17" Class Open-frame LED Touchscreen Monitor, 5:4, 5 ms, 17"" Viewable, TouchPro Projected Capacitive, 10 Point(s) Multi-touch Screen, 1280 x 1024, SXGA, Thin Film Transistor (TFT), 16.7 Million Colors, 225 Nit, LED Backlight, HDMI, USB, VGA, DisplayPort, 1 x HDMI In, Black, 3 Year
Explore all Elo 1790L Digital Signage Displays
Add to Quote
Elo E296315 POS Touch Terminal
Elo E296315 POS Touch Terminal
Elo E296315 POS Touch Terminal Elo E296315 POS Touch Terminal
Full specifications (PDF)

Elo 1790L Digital Signage Display Model Overview

The Elo 1790L 17-inch Open-Frame Touch Display is expertly designed for various applications including kiosks, gaming, and industrial automation. Its slim profile and energy-efficient LED backlight not only reduce power consumption but also generate less heat. This compact touch display features advanced touch technologies for accurate touch responses and vibrant imagery. Protected against dust and water, it easily integrates into your systems, making it a reliable choice for system integrators and VARs.


Key Features
  • Choice of Elo touch technologies: Standard bezel (IntelliTouch SAW, SecureTouch anti-vandal SAW, AccuTouch five-wire resistive) and Zero-bezel (Projected Capacitive PCAP 2GS)
  • High quality energy-saving LED panel
  • 10 touch projected capacitive (PCAP) with Thru-glass capabilities
  • User-friendly video interfaces: Display Port and VGA

Specifications
  • Model: 1790L
  • Color: Black
  • Active Display Area: 337.9 x 270.3 mm / 13.3 x 10.6 inches
  • Diagonal: 17"
  • Native Resolution: 1280 x 1024 at 60Hz
  • Brightness (typical): 250 nits (LCD panel)
  • Weight: Unpackaged 7.9 lb (3.6 kg)
  • Warranty: 3 years standard
  • Agency Approvals: UL, FCC, CE, RoHS, and more
Elo E296315 POS Touch Terminal Overview

Elo 1790L Open Frame Touchscreen Display

The Elo 1790L 17-inch open frame touchscreen display delivers an industrial-grade solution that is cost-effective for OEMs and systems integrators requiring a reliable product for their customers. Designed with reliability from the start, Elo's open frames deliver outstanding image clarity and light transmission with stable, drift-free operation for accurate touch responses. The 90-Series product line is available in a wide range of sizes, touch technologies and brightness, offering the versatility needed for commercial kiosk applications from self-service and gaming to industrial automation and healthcare.

Enabling Partners to Build Smarter Kiosks

With EloView® and the Backpack, managing kiosks is EASY! The Elo Backpack is an Android powered compute engine capable of transforming Elo touchscreens into an affordable, scalable, single-architecture media platform. With its simplified content-delivery and remote-management capabilities via the EloView portal, the Backpack provides a low-power, solid-state, fan-less computing solution with the capability to simplify deployments and remotely manage kiosks out-of-the-box.

Flexibility for Your Install

Our commercial-grade open frames can be mounted in landscape, portrait, and face-up orientations providing optimal flexibility for mounting in any table, kiosk, or cabinet design. Whether viewing directly, at an angle, or from a distance, our open frames offer what you need while maintaining optimal clarity and the viewing experience you want to deliver.

Touch Thru Glass Enabled with PCAP

Our TouchPro® PCAP technology supports touch thru functionality for installations that require a front layer of glass with thickness's up to 6mm or solutions that require specific IP ratings. Whether you need a flush-mounted display or one that is fully-encased behind a cover glass, our robust PCAP Open Frames are purpose-built for durability in various applications and environments: from self-service kiosks to highly used gaming cabinets to harsh industrial machines.

Built for Commercial Use

We pride ourselves on being one of the best manufacturers in the market - We design and build the complete solution, with touch integrated from the start. Our robust touchscreen solutions offer flexibility for diverse environments and have undergone rigorous testing to ensure the longest life possible for our product - maximizing your ROI.

Full specifications (PDF)
Technical Information
Screen Size Class:
17"
Viewable Screen Size:
17"
Screen Mode:
SXGA
Panel Technology:
Thin Film Transistor (TFT)
Response Time:
5 ms
Aspect Ratio:
5:4
Horizontal Viewing Angle:
170°
Vertical Viewing Angle:
160°
Mount Type:
  • Flush Mount
  • Rear Mount
Backlight Technology:
LED
Features:
  • Color Temperature Selection
  • On-screen Display (OSD)
  • Landscape/Portrait Viewable
  • Anti-glare
  • Wide Viewing Angle
Horizontal Frequency:
30 kHz to 82 kHz
Vertical Frequency:
50 Hz to 75 Hz
Ingress Protection (IP) Rating:
IP65
Impact Protection (IK) Rating:
IK07
Active Display Area (H x V):
13.30" x 10.60"
Video
Maximum Resolution:
1280 x 1024
Color Supported:
16.7 Million Colors
Native Contrast Ratio:
1,000:1
Brightness:
225 Nit
Maximum Refresh Rate:
60 Hz
Touchscreen Information
Touchscreen Type:
TouchPro Projected Capacitive
Multi-touch Screen:
Yes
Number of Simultaneous Touchpoints:
10
Interfaces/Ports
HDMI:
Yes
USB:
Yes
VGA:
Yes
DisplayPort:
Yes
Number of HDMI Inputs:
1
Total Number of HDMI Ports:
1
Number of USB Ports:
1
Number of VGA Ports:
1
USB Type-B:
Yes
Environmental Conditions
Operating Temperature Range:
32°F (0°C) to 104°F (40°C)
Operating Humidity Range:
20% to 80% (Non-condensing)
Power Description
Maximum Power Consumption:
9.90 W
Physical Characteristics
VESA Mount Compatible:
Yes
VESA Mount Standard:
  • 75 x 75
  • 100 x 100
Color Family:
Black
Product Color:
Black
Height:
12.1"
Width:
14.5"
Depth:
1.9"
Weight (Approximate):
7.94 lb
Miscellaneous
Package Contents:
  • 1790L 17" Open Frame Touchscreen
  • HDMI cable
  • VGA Cable
  • RJ45 OSD Remote
  • Touch USB Cable
  • Quick Install Guide
  • Flush Mount Brackets w/Screws
  • Japan Class-B info sheet
Environmental Compliance:
  • Restriction of Hazardous Substances (RoHS)
  • China Restriction of Hazardous Substances (China RoHS)
  • Waste Electrical and Electronic Equipment Directive (WEEE)
Application/Usage:
  • Commercial
  • Kiosk System
  • Industrial
  • Automation
  • Healthcare
  • Gaming
Warranty
Limited Warranty:
3 Year
Item Numbers
GTIN: 0843173150178
UPC: 843173150178
EAN: 0843173150178
UNSPSC: 43211903

Recommended Accessories

Category

  • Data Networking Device Accessories (1)
  • Digital Signage Display Accessories (1)
  • Mounting Hardware and Stands (1)
  • Service Contract (2)
  • Touchscreen Accessories (17)

Recommended Accessories for Model: Elo E296315 POS Touch Terminal

Top Data Networking Device Accessories Purchased With Elo E296315

  • Elo E239980 Accessory
    Elo E239980 Accessory
    Power Systems & Supplies, ELO, ELO-Kit Power Converter 24VDC to 12VDC
    Item on backorder — chat for lead time
    $73.69
    Add to Quote

Top Digital Signage Display Accessories Purchased With Elo E296315

Top Mounting Hardware and Stands Purchased With Elo E296315

Top Service Contract Purchased With Elo E296315

Top Touchscreen Accessories Purchased With Elo E296315

  • Elo D82064-000 Accessory
    Elo D82064-000 Accessory
    Stylus, ELO, Color: Black, Soft Tip Stylus Pen for IntelliTouch Monitors
    Item on backorder — chat for lead time
    $29.00
    Add to Quote
  • Elo E860319 Accessory
    Elo E860319 Accessory
    Mounting Hardware & Stands, ELO, Front Mount Bezel (Converts Rear to Front Mount) for the 1739L
    In Stock
    $189.54
    Add to Quote
  • Elo E939253 Accessory
    Elo E939253 Accessory
    Mounting Hardware & Stands, ELO, Rack Mount Bracket for 1739L
    Item on backorder — chat for lead time
    $157.90
    Add to Quote
See All Touchscreen Accessories for Elo E296315 POS Touch Terminal >

Frequently Asked Questions

The Elo 1790L offers multiple touch technology options to suit different applications. Standard bezel models include IntelliTouch SAW, SecureTouch anti-vandal SAW, and AccuTouch five-wire resistive, while the zero-bezel option features Projected Capacitive PCAP 2GS with 10-point multi-touch and thru-glass capabilities. Contact us today to select the right touch technology for your deployment.

The Elo 1790L is protected against dust and water, making it suitable for demanding environments. It features an energy-efficient LED backlight that reduces power consumption and generates less heat, contributing to reliable operation in various industrial and commercial settings. For specific environmental requirements, visit barcodesinc.com or contact our team for detailed specifications.

The Elo 1790L includes user-friendly video interfaces with both DisplayPort and VGA connectivity, along with HDMI input capability. This multi-interface design ensures compatibility with a wide range of POS systems, kiosks, and industrial automation platforms available from us.

The Elo 1790L is a 17-inch open-frame touch display with a native resolution of 1280 x 1024 at 60Hz in 5:4 aspect ratio, delivering an active display area of 337.9 x 270.3 mm (13.3 x 10.6 inches). This compact size and resolution make it ideal for kiosks, gaming applications, and industrial automation installations.

The Elo 1790L comes with a 3-year standard warranty and holds multiple agency approvals including UL, FCC, CE, and RoHS compliance. These certifications ensure the product meets international safety and environmental standards for deployment across various markets.

The Elo 1790L features a high-quality energy-saving LED panel with typical brightness of 250 nits and supports 16.7 million colors through its TFT technology. The 5 ms response time ensures responsive touch interaction, making it well-suited for fast-paced retail and industrial applications available from us.

The Elo E296315 POS Touch Terminal is also known as ELO-E296315 or E296315.
