Full specifications (PDF)
Features:
- Open Pluggable Specification (OPS)
- Progressive Scan

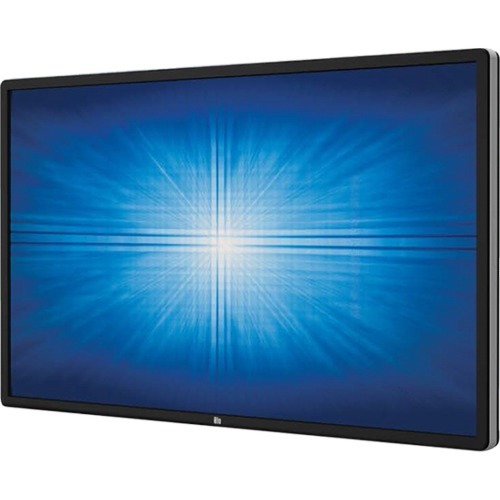

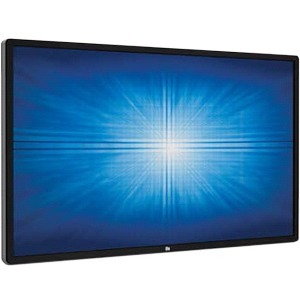

Elo E268254 Digital Signage Display
Part Number:
E268254
Model:
5501LT
Elo 5501LT Digital Signage Display Model Overview
The 5501LT Interactive Digital Signage display combines an infrared multi-touch touchscreen with a professional-grade, large format display in a slim, integrated package. For retail, hospitality, commercial real estate, education and other commercial applications, the large wide-screen format offers a high-quality, interactive canvas for attracting and engaging consumers. The 5501LT offers system integrators and value-added resellers (VARs) a high performance solution that is easy to deploy and maintain. With a total thickness of 3.4", the 5501LT is compliant with the ADA requirement of less than 4" protrusion for wallmounted products when used with a compatible wall-mount.
Elo E268254 Digital Signage Display Overview
The 5501LT Interactive Digital Signage display combines an infrared multi-touch touchscreen with a professional-grade, large format display in a slim, integrated package. For retail, hospitality, commercial real estate, education and other commercial applications, the large wide-screen format offers a high-quality, interactive canvas for attracting and engaging consumers. The 5501LT offers system integrators and value-added resellers (VARs) a high performance solution that is easy to deploy and maintain. With a total thickness of 3.4 inches (87mm), the 5501LT is compliant with the ADA requirement of less than 4" protrusion for wallmounted products when used with a compatible wall-mount.
With a 500 nit LED panel, the 5501LT is a bright, high quality display suitable for public environments. The infrared touchscreen enables up to ten simultaneous touches for multi-user interaction. This touch technology offers a fast and extremely sensitive response similar to the experience on mobile devices. It is also compatible with Microsoft Windows® 7, Windows® 8 and Android operating systems. The touchscreen is 4mm thick with fully tempered glass.
Technical Information
Display & Graphics
Screen Size:
55"
Display Screen Type:
LCD
Touchscreen:
Yes
Touchscreen Technology:
Optical Imaging
Multi-touch Screen:
Yes
Display Resolution:
1920 x 1080
Response Time:
6 ms
Aspect Ratio:
16:9
Horizontal Viewing Angle:
178°
Vertical Viewing Angle:
176°
Backlight Technology:
LED
HDCP Supported:
Yes
Audio
Number of Speakers:
4
Speakers:
Yes
RMS Output Power:
20 W
Video
Scan Format:
1080p
Standard Refresh Rate:
60 Hz
Native Contrast Ratio:
4,000:1
Brightness:
500 Nit
Interfaces/Ports
USB:
Yes
VGA:
Yes
HDMI:
Yes
DisplayPort:
Yes
Audio Line In:
Yes
Power Description
Input Voltage:
- 120 V AC
- 230 V AC
Power Consumption:
120 W
Physical Characteristics
VESA Mount Compatible:
Yes
VESA Mount Standard:
600 x 600
Height:
29.1"
Width:
49.9"
Depth:
3.4"
Weight (Approximate):
98.99 lb
Miscellaneous
Environmentally Friendly:
Yes
Warranty
Limited Warranty:
3 Year
Item Numbers
GTIN:
0778781003229, 0834619007996
UPC:
778781003229, 834619007996
EAN:
0778781003229, 0834619007996
UNSPSC:
43211902
