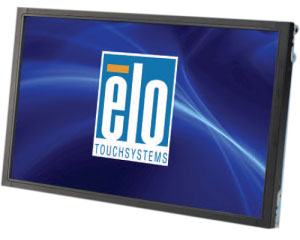

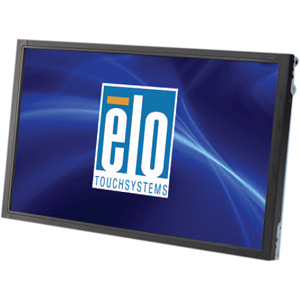

Elo E236501 Touchscreen

Part Number: E236501
Model: 2243L
Add to My Shopping List Add to Compare
Discontinued See Replacement

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Screen Size Class
22"
Viewable Screen Size
22"
Screen Mode
Full HD
Screen Surface
Anti-glare

Product Description:

  Elo 2243L 22" Open-frame LCD Touchscreen Monitor - 16:9 - 5 ms - 22" Class - Acoustic Pulse Recognition - 1920 x 1080 - Full HD - 16.7 Million Colors - 1,000:1 - 250 Nit - LED Backlight - DVI - USB - VGA - Black
Explore all Elo 2243L Touchscreens
Add to Quote
Elo E236501 Touchscreen
Elo E236501 Touchscreen
Elo E236501 Touchscreen
Elo E236501 Touchscreen Elo E236501 Touchscreen Elo E236501 Touchscreen
Full specifications (PDF)

Elo 2243L Touchscreen Model Overview

The 22" ELO 2243L open-frame LCD touchmonitor with its slim design and narrow outside dimensions gives kiosk integrators an edge in developing the most aesthetically pleasing products. Wide-aspect displays like the ELO 2243L are easier to use and incorporate than traditional open-frame touchmonitors. Wide-screen format displays allow extra content on the screen and are quickly becoming preferred in casino gaming, amusement and entertainment settings and are increasingly popular in public venue environments due to the high-definition cinematic-like experience. Typical applications for the 2243L include: gaming and amusement, information kiosks and self-service, as well as interactive digital signage applications.
Elo E236501 Touchscreen Overview

The Elo TouchSystems 2243L open-frame LCD touchmonitor with its slim design and narrow outside dimensions gives kiosk integrators an edge in developing the most aesthetically pleasing products. Wide-aspect displays like the Elo 2243L are easier to use and incorporate than traditional open-frame touch monitors. Wide-screen format displays allow extra content on the screen and are quickly becoming preferred in casino gaming, amusement and entertainment settings and are increasingly popular in public venue environments due to the high-definition cinematic-like experience. Typical applications for the 2243L include: gaming and amusement, information kiosks and self-service, as well as interactive digital signage applications.

Full specifications (PDF)
Technical Information
Screen Size Class:
22"
Viewable Screen Size:
22"
Screen Mode:
Full HD
Screen Surface:
Anti-glare
Response Time:
5 ms
Aspect Ratio:
16:9
Horizontal Viewing Angle:
170°
Vertical Viewing Angle:
160°
Backlight Technology:
LED
Video
Maximum Resolution:
1920 x 1080
Color Supported:
16.7 Million Colors
Contrast Ratio:
1,000:1
Brightness:
250 Nit
Touchscreen Information
Touchscreen:
Yes
Touchscreen Type:
Acoustic Pulse Recognition
Interfaces/Ports
DVI:
Yes
USB:
Yes
VGA:
Yes
Power Description
Operating Power Consumption:
22 W
Standby Power Consumption:
2.20 W
Off-Mode Power Consumption:
1.10 W
Physical Characteristics
VESA Mount Compatible:
Yes
VESA Mount Standard:
100 x 100
Product Color:
Black
Height:
11.7"
Width:
20.2"
Depth:
1.7"
Weight (Approximate):
10.58 lb
Item Numbers
GTIN: 7411493248610
EAN: 7411493248610
UNSPSC: 43211903

Recommended Accessories

Category

  • Touchscreen Accessories (6)

Recommended Accessories for Model: Elo E236501 Touchscreen

Top Touchscreen Accessories Purchased With Elo E236501

See All Touchscreen Accessories for Elo E236501 Touchscreen >
Questions? Get help from
a POS Expert!

What is your POS application?

The Elo E236501 Touchscreen is also known as ELO-E236501 or E236501.
