Elo E230376 Touchscreen

The Elo E230376 Touchscreen has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.
Elo 2239L - Elo 2239L 22" Open-frame LCD Touchscreen Monitor - 16:10 - 5 ms - 22" Class - Surface Acoustic Wave - 1680 x 1050 - WSXGA+ - 16.7 Million Colors - 1,000:1 - 300 Nit - DVI - USB - VGA - Black - 3 Year
  • The open-frame lcd touchscreen monitor is simply ideal for clubhouse gaming, entertainment, and self-administration booth applications
  • The WSXGA+ touchscreen highlights WSXGA+ display with the resolution of up to 1680 x 1050 pixels
  • The 1,000:1 contrast ratio produces enhanced sharpness and shading accuracy in each picture
  • The 300 Nit brightness gives an exceptionally visible display for clear and consistent on-screen pictures
  • VESA mount compatibility allows you to mount the touch screen on a wall or with a stand depending on your specific needs
Read More
Discontinued Need Assistance?
Recommended TrueSupport Coverage (/mo.)

x

Are you sure you don't need TrueSupport?

The average internal IT
cost for device support is over per year!

With TrueSupport you're
covered - and for way less!
  • Hardware Helpdesk Support
  • RMA Repair Facilitation
  • OEM Service Contract Management
  • Premium Phone & Email Support
  • Billed annually per device

Only /month
Subtotal ( items)

x
You've just added this product to the cart:

Go To Cart
Add to Quote

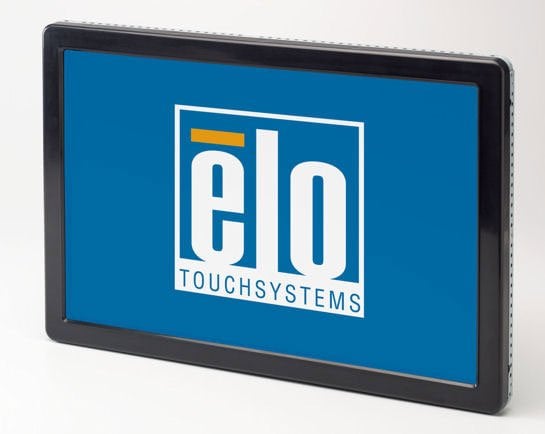

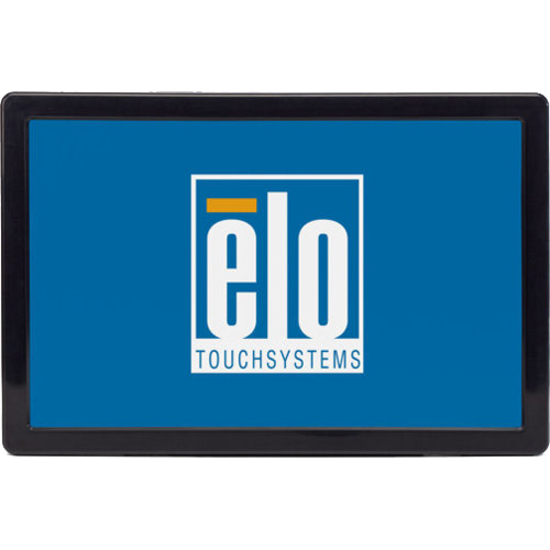

Elo 2239L Touchscreen Model Overview
The ELO 2239L open-frame touchmonitor delivers a cost-effective touch solution for OEMs and systems integrators, and complements Elo's expanded family of touch solutions for gaming and amusement, retail self-service and kiosk applications. This compact 3000-series touchmonitor is "designed for touch," with Elo's proven expertise and reliability built-in, not added as an afterthought by altering an existing monitor.
Elo E230376 Touchscreen Overview

The 2239L open-frame touchmonitor delivers a cost-effective touch solution for OEMs and systems integrators, and complements the expanded family of Elo touch solutions for gaming and amusement, retail self-service and kiosk applications. This compact touchmonitor is "designed for touch," with proven expertise and reliability built-in, not added as an afterthought by altering an existing monitor.

Technical Information
Screen Size Class:
22"
Viewable Screen Size:
22"
Screen Mode:
WSXGA+
Response Time:
5 ms
Aspect Ratio:
16:10
Horizontal Viewing Angle:
170°
Vertical Viewing Angle:
160°
Video
Maximum Resolution:
1680 x 1050
Standard Refresh Rate:
75 Hz
Color Supported:
16.7 Million Colors
Contrast Ratio:
1,000:1
Brightness:
300 Nit
Touchscreen Information
Touchscreen:
Yes
Touchscreen Type:
Surface Acoustic Wave
Interfaces/Ports
DVI:
Yes
USB:
Yes
VGA:
Yes
Power Description
Input Voltage:
  • 110 V AC
  • 220 V AC
Operating Power Consumption:
50 W
Physical Characteristics
VESA Mount Compatible:
Yes
VESA Mount Standard:
100 x 100
Product Color:
Black
Height with Stand:
13.90"
Width with Stand:
20.90"
Depth with Stand:
3.10"
Weight (Approximate):
18.70 lb
Miscellaneous
Environmentally Friendly:
Yes
Environmental Certification:
  • RoHS
  • China RoHS
  • WEEE
Warranty
Limited Warranty:
3 Year
Item Numbers
GTIN: 7411493055010
EAN: 7411493055010
UNSPSC: 43211903
Questions? Get help from
a POS Expert!

What is your POS application?

The Elo E230376 Touchscreen is also known as ELO-E230376 or E230376.
