Elo E218072 Touchscreen


0.0

(No reviews)

Be the first to

Write a Review

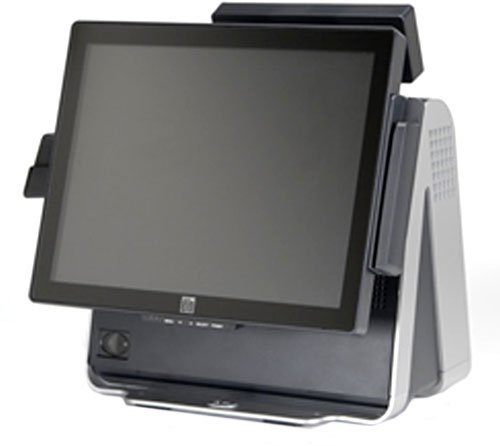

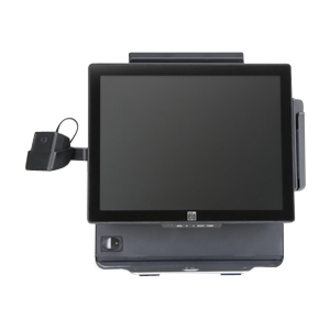

Elo 17D2 Touchcomputer - 17 inch All-in-One LCD Desktop Touchcomputer (IntelliTouch Touch Technology, USB Touch Interface, Windows XP Pro and Anti-glare Surface Treatment)
Touchscreen sealed from the factory - prevents accidental damage when liquids are spilled

The ELO 17D Series 17" All-in-One Touchcomputers bring style, flexibility and functionality to point-of-sale (POS), retail and hospitality businesses. With a wide array of field-installable peripherals, spill-resistant sealing, and a range of input/output port connection options, the 17D1 and 17D2 are versatile and powerful. These touchcomputers are designed with the future in mind, allowing easy serviceability of the main components and excellent performance utilizing Intel Dual-Core 2.2 GHz or Intel Core Duo 3.0 GHz processors. The 17D Series expands the ELO TouchSystems high profile family of reliable, easy-to-integrate multi-function touch solutions.

General Information

  • Product Type: POS Terminal
  • Brand Name: Elo
  • Manufacturer: Elo Touch Solutions, Inc
  • Product Model: 17D2
  • Product Name: 17D2 POS Terminal

Physical Characteristics

  • Height: 11.3"
  • Width: 15"
  • Depth: 8.4"
  • Weight (Approximate): 25.99 lb
  • Color: Dark Gray

Interfaces/Ports

  • USB: Yes
  • Network (RJ-45): Yes
  • Cash Drawer Port: Yes
  • Audio Line In: Yes
  • Audio Line Out: Yes
  • Serial Port: Yes
  • Parallel Port: Yes
  • PS/2 Port: Yes

Other

  • Green Compliant: Yes
  • Green Compliance Certificate/Authority: RoHS
  • Package Contents:
    • 17D2 POS Terminal
    • Power Cable
    • 17D2 POS Terminal
    • Power Cable

Display & Graphics

  • Display Screen Type: LCD
  • Screen Size: 17"
  • Touchscreen: Yes
  • Brightness: 300 Nit
  • Display Resolution: 1280 x 1024

Processor & Chipset

  • Processor Manufacturer: Intel
  • Processor Speed: 3 GHz
  • Processor Type: Core 2 Duo

Power Description

  • Input Voltage:
    • 220 V AC
    • 110 V AC

Storage

  • Hard Drive Capacity: 160 GB
  • Hard Drive Interface: SATA

Memory

  • Memory Technology: DDR2 SDRAM
  • Standard Memory: 2 GB

Software

  • Operating System: Windows XP Professional

Warranty

  • Limited Warranty: 3 Year

I/O Expansions

  • Number of CompactFlash Card Slots: 1

Full specifications (PDF)

Full specifications (PDF)

Brand Elo
Model 17D Series
Interface USB
Hard Drive Size 160GB
Processor Intel 3.0GHz
Form Factor Desktop
Operating System Windows XP Pro
Touch Technology Surface Wave
Color Gray
RAM Memory 2GB
Screen Size 17 inches
Display Type LCD
Fanless Options Fan-Cooled
Magstripe Option Magstripe


Customer Review Summary

Recommended Accessories for Model: Elo 17D Series Touchscreen
Elo Accessories (E005277)
Power brick (12V, 4.16A, 50W, US) for the 1517L, 1739L, 1729L, 1939L, and 2244L.
In Stock: Ships Same Day
$28.90
+ Add to Quote
Elo Accessories (E114692)
Power supply Brick (12V DC) for the 17A2
In Stock: Ships Same Day
$66.00
+ Add to Quote
Elo Service Contracts - 2 year (E794114)
Extended Warranty for Touchcomputers, must have one year of warranty left on the original warranty in order to be eligible for warranty plan.
Ships in 3-5 Days
$185.00
+ Add to Quote
Elo 15D2 (E145919)
Magnetic stripe reader (3-track) for the 15D1 and 17D2 Touchcomputers
Ships in 3-5 Days
$58.00
+ Add to Quote
Elo (E177037)
Magnetic Strip Reader for 1515L touchsystems, Gray, Field Installable
In Stock: Ships Same Day
$61.00
+ Add to Quote
Protect Your Product

The Elo E218072 is also known as Elo Touch Systems ELO-E218072 .
