Elo E179842 Digital Signage Display

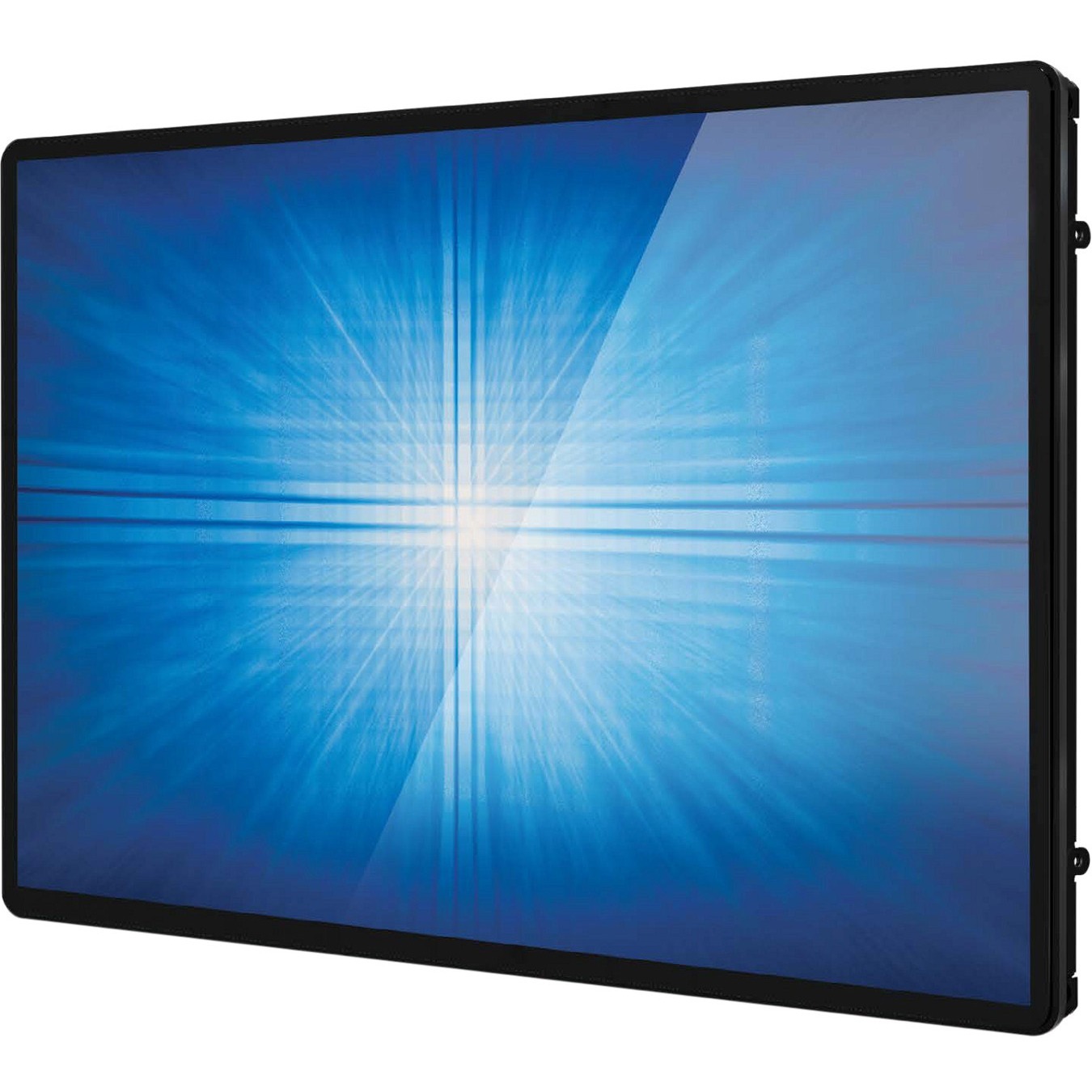

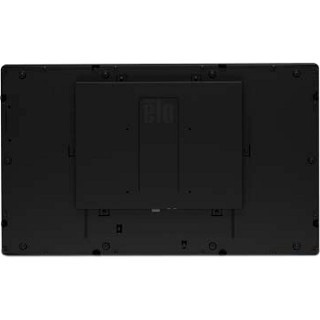

Elo 2293L - 22" Open-frame LCD Touchscreen Monitor - 16: 9 - 5 ms - 22" Class - IntelliTouch Plus - 1920 x 1080 - Full HD - 16.7 Million Colors - 1,000: 1 - 250 Nit - LED Backlight - USB - VGA - DisplayPort - Black
  • The open-frame lcd touchscreen monitor is simply ideal for clubhouse gaming, entertainment, and self-administration booth applications
  • LED backlight technology provides for industry-leading low power consumption and less hazardous materials
  • The 1,000:1 contrast ratio produces enhanced sharpness and shading accuracy in each picture
  • The 250 Nit brightness gives an exceptionally visible display for clear and consistent on-screen pictures
  • The IntelliTouch Plus touchscreens comprise of a glass overlay with the transmitting and accepting piezoelectric transducers for the X and Y-axis
  • VESA mount compatibility allows you to mount the touch screen on a wall or with a stand depending on your specific needs
Read More

Full specifications (PDF)

Sensitive touch performance with "Built for Touch" reliability
This compact touch display is "designed for touch" with proven Elo expertise and reliability built in. The 2293L provides stable "drift-free" operation with outstanding image clarity and light transmission - for accurate touch responses and vivid images. The touchscreen is sealed against dirt, dust and liquids, which simplifies integration into the final enclosure. Long-lasting product availability can be expected as the design and tooling is controlled by Elo specifications.
Elo E179842 Overview

The Elo 2293L 22" open-frame LCD touch display features a slim design and narrow outside dimensions due to the state-of-the art energy-saving LED backlight, using less electricity to operate and generating less heat. The 2293L instantly grabs and holds the users' attention for kiosks, casino and amusement, retail self-service, and industrial floor automation.

This compact touch display is "designed for touch" with proven Elo expertise and reliability built in. The 2293L provides stable "drift-free" operation with outstanding image clarity and light transmission-for accurate touch responses and vivid images. The touchscreen is sealed against dirt, dust and liquids, which simplifies integration into the final enclosure. Long-lasting product availability can be expected as the design and tooling is controlled by Elo specifications.

Available with a choice of industry-leading touch technologies, in single-, dual- or multi-touch technology, including IntelliTouch® Plus dual-touch surface acoustic wave (SAW), and Elo's latest projected capacitive (PCAP) 2GS (two glass solution) multi-touch display with zero-bezel, offering both a ten touch "tablet like" interactive experience along with thru-glass functionality - both modes support single or dual latex gloves as well as cloth gloves.

At Elo, we design, build and are responsible for the complete solution with touch integrated from the start. We use our own touchscreens combined with our software and drivers, everything is designed to work together and tested as part of our life testing processes.

Worldwide agency approvals cover the whole display, which is developed, built, serviced and supported by a true single source supplier. The 2293L open-frame LCD touch display provides an economical solution for system integrators and VARs.

Protect Your Product

Full specifications (PDF)

Technical Information
Screen Size Class:
22"
Viewable Screen Size:
22"
Screen Mode:
Full HD
Response Time:
5 ms
Aspect Ratio:
16:9
Mount Type:
  • Front Mount
  • Rack-mountable
Backlight Technology:
LED
Video
Maximum Resolution:
1920 x 1080
Color Supported:
16.7 Million Colors
Contrast Ratio:
1,000:1
Brightness:
250 Nit
Touchscreen Information
Touchscreen Type:
IntelliTouch Plus
Interfaces/Ports
USB:
Yes
VGA:
Yes
DisplayPort:
Yes
Power Description
Operating Power Consumption:
18 W
Physical Characteristics
VESA Mount Compatible:
Yes
Color:
Black
Height:
11.7"
Width:
20.1"
Depth:
1.7"
Weight (Approximate):
11.24 lb
Item Numbers
GTIN: 0053926243631
UPC: 053926243631
EAN: 0053926243631
UNSPSC: 43211903
