Elo E176026 Touchscreen

Elo E396119 Touchscreen A newer version of this item is available.
It is replaced by the Elo E396119 Touchscreen.
Elo 1919L - Elo 1919L 19" LCD Touchscreen Monitor - 16:9 - 5 ms - 19" Class - Surface Acoustic Wave - 1366 x 768 - WXGA - Adjustable Display Angle - 16.7 Million Colors - 1,000:1 - 250 Nit - Speakers - USB - VGA - Black, Dark Gray - RoHS, China RoHS, WEEE - 3 Year
  • The WXGA lcd touchscreen monitor is perfect for point-of-sale, hospitality, and many other retail applications
  • The Surface Acoustic Wave (SAW) touchscreens comprise of a glass overlay with the transmitting and accepting piezoelectric transducers for the X and Y-axis
  • The WXGA touchscreen highlights WXGA display with the resolution of up to 1366 x 768 pixels
  • The 1,000:1 contrast ratio produces enhanced sharpness and shading accuracy in each picture
  • Furnishes captivating visuals with about 250 Nit brightness levels
  • VESA mount compatibility allows you to mount the touch screen on a wall or with a stand depending on your specific needs
Read More
Discontinued See Replacement
Add to Quote

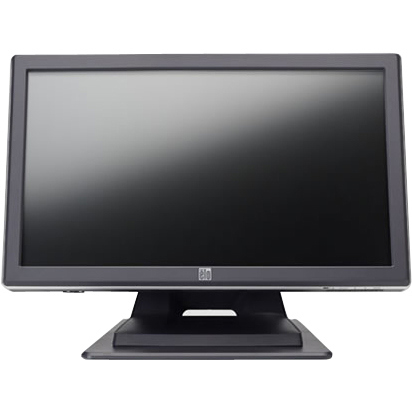

Elo 1919L Touchscreen Model Overview
The ELO 1919L is a wide-screen display that is easier to use and incorporate into more environments than traditional desktop touchmonitors. It allows extra content on the screen and is well-suited for corporate environment uses such as spreadsheets, publishing, and dual-window applications. The 1919L is available in three industry-leading ELO touch technologies: zero-bezel APR, which senses touch on the display by recognizing the unique pattern of sounds, standard-bezel IntelliTouch surface acoustic wave and zero-bezel AccuTouch 5-wire resistive. Additional applications well-suited to take advantage of the monitor's features include point-of-sale (POS), point-of-information (POI), point-of-service, interactive digital signage, loyalty systems, kiosk information systems, light industrial shop-floor automation and home control.
Elo E176026 Touchscreen Overview

The 1919L is a wide-screen display that is easier to use and incorporate into more environments than traditional desktop touchmonitors. It allows extra content on the screen and is well-suited for corporate environment uses such as spreadsheets, publishing, and dual-window applications. The 1919L is available in five industry-leading Elo touch technologies: which senses touch on the display by recognizing the unique pattern of sounds, standard-bezel IntelliTouch surface acoustic wave, zero-bezel AccuTouch 5-wire resistive, zero-bezel iTouch surface acoustic wave and projected capacitive (PCAP) for superior optical performance. Additional applications well-suited to take advantage of the monitor's features include point-of-sale (POS), point-of-information (POI), point-of-service, interactive digital signage, loyalty systems, kiosk information systems, light industrial shop-floor automation and home control.

Technical Information
Screen Size Class:
19"
Viewable Screen Size:
19"
Screen Mode:
WXGA
Response Time:
5 ms
Aspect Ratio:
16:9
Horizontal Viewing Angle:
170°
Vertical Viewing Angle:
160°
Adjustable Display Angle:
Yes
Adjustable Display Pivot:
Yes
Display Orientation:
Landscape/Portrait
Mount Type:
  • Arm-mountable
  • Wall Mountable
  • Desk Mountable
Video
Maximum Resolution:
1366 x 768
Standard Refresh Rate:
60 Hz
Color Supported:
16.7 Million Colors
Contrast Ratio:
1,000:1
Brightness:
250 Nit
Audio
Speakers:
Yes
Touchscreen Information
Touchscreen:
Yes
Touchscreen Type:
Surface Acoustic Wave
Interfaces/Ports
USB:
Yes
VGA:
Yes
Headphone:
Yes
Serial Port:
Yes
Power Description
Input Voltage:
  • 110 V AC
  • 220 V AC
Operating Power Consumption:
20.70 W
Physical Characteristics
VESA Mount Compatible:
Yes
VESA Mount Standard:
100 x 100
Product Color:
  • Black
  • Dark Gray
Height with Stand:
12.60"
Width with Stand:
17.90"
Depth with Stand:
9.30"
Weight (Approximate):
10.20 lb
Weight with Stand (Approximate):
15.10 lb
Miscellaneous
Certifications & Standards:
  • UL
  • cUL
  • NOM
  • CB
  • S-mark
  • CCC
  • VCCI
  • KC
  • KKC
  • BSMI
  • IMERC
  • CE
Platform Supported:
PC
Environmentally Friendly:
Yes
Environmental Certification:
  • RoHS
  • China RoHS
  • WEEE
Warranty
Limited Warranty:
3 Year
Item Numbers
GTIN: 0799860668252, 7411493250804
UPC: 799860668252
EAN: 0799860668252, 7411493250804
UNSPSC: 43211903
