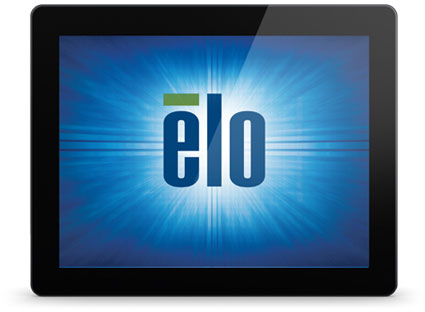

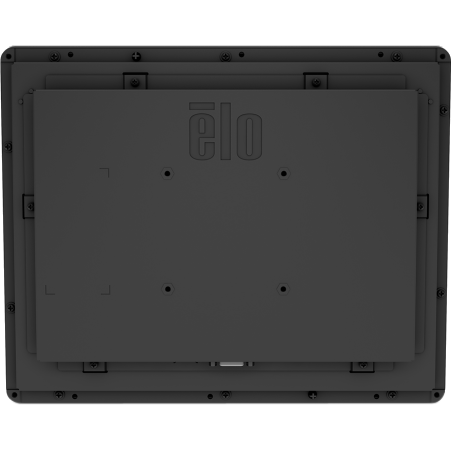

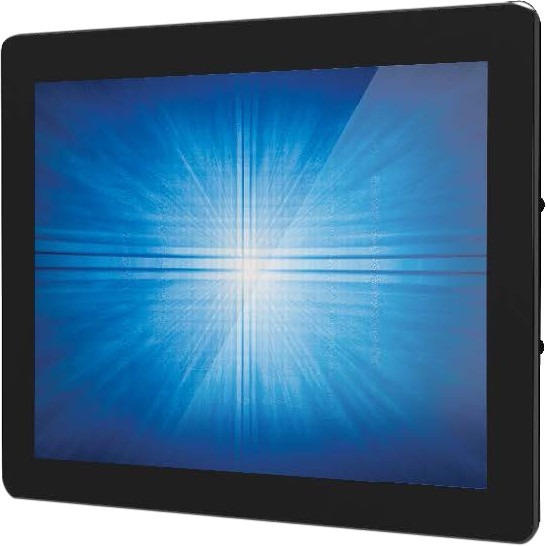

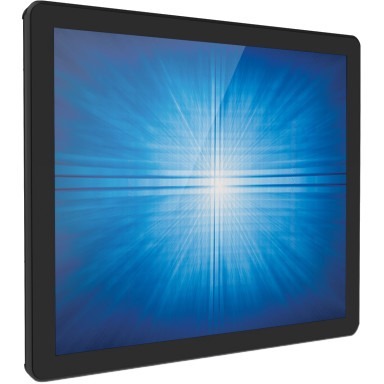

Elo E175964 Touchscreen

Elo 1291L - 12" Open-frame LCD Touchscreen Monitor - 4: 3 - 25 ms - 12" Class - IntelliTouch Surface Wave - 800 x 600 - SVGA - 16.2 Million Colors - 1,500: 1 - 450 Nit - LED Backlight - USB - VGA - DisplayPort - Black
  • The open-frame lcd touchscreen monitor is simply ideal for clubhouse gaming, entertainment, and self-administration booth applications
  • LED backlight technology provides for industry-leading low power consumption and less hazardous materials
  • The 1,500:1 contrast ratio produces enhanced sharpness and shading accuracy in each picture
  • View your content easily in well-lit areas with 450 Nit brightness
  • The IntelliTouch Surface Wave touchscreens comprise of a glass overlay with the transmitting and accepting piezoelectric transducers for the X and Y-axis
  • VESA mount compatibility allows you to mount the touch screen on a wall or with a stand depending on your specific needs
Read More

Full specifications (PDF)

12.1-inch Open-Frame Touch Display
The Elo 1291L 12.1" open-frame LCD touch display features a slim design and narrow outside dimensions due to the state-of-the art energy-saving LED backlight, using less electricity to operate and generating less heat. The 1291L instantly grabs and holds the users' attention for kiosks, casino and amusement, retail self-service, and industrial floor automation. This compact touch display is "designed for touch" with proven Elo expertise and reliability built in. The 1291L provides stable "drift-free" operation with outstanding image clarity and light transmission""for accurate touch responses and vivid images. The touchscreen is sealed against dirt, dust and liquids, which simplifies integration into the final enclosure. Long-lasting product availability can be expected as the design and tooling is controlled by Elo specifications.
Elo E175964 Overview
The Elo 1291L 12-inch open-frame LCD touch display features a slim design and narrow outside dimensions thanks to the state-of-the-art, energy-saving LED backlight, using less electricity to operate and generating less heat. This compact touch display is designed for touch with proven Elo expertise and reliability built in. The 1291L provides stable, drift-free operation with outstanding image clarity and light transmission-for accurate touch responses and vivid images. Featuring a brilliant wide viewing angle panel, the 1291L instantly grabs and holds the users' attention for kiosks, casino and amusement, retail self-service, and industrial automation environments.

Easily integrated.

The touchscreen is sealed against dirt, dust and liquids, which simplifies integration into the final enclosure. Projected capacitive (PCAP) units can be sealed into a solution and obtain an IP65 rating on the front side of the unit. With the design and tooling being controlled by Elo, long-lasting product availability can be expected, as well as backwards compatibility, helping to minimize enclosure costs.

Touch ready.

Available with a choice of industry-leading single-touch or multi-touch technologies, including IntelliTouch® single-touch surface acoustic wave (SAW) touchscreen technology, and Elo's latest TouchPro™ PCAP two glass solution (2GS) 10-touch with Zero-bezel, offering pristine optical clarity and touch durability.

Commercial-grade.

The Elo open frame touchscreen display delivers the quality and reliability Elo is known for, and is backed by our three-year standard warranty. We design, build and are responsible for the complete solution, with touch integrated from the start. Using our touchscreens combined with our software and drivers, everything is designed to work together and is tested as part of our life testing processes. All our products go through rigorous reliability testing (over 20 tests) to deliver 50,000 MTBF.

Protect Your Product

Full specifications (PDF)

Technical Information
Screen Size Class:
12"
Viewable Screen Size:
12"
Screen Mode:
SVGA
Response Time:
25 ms
Aspect Ratio:
4:3
Mount Type:
  • Wall Mountable
  • Rear Mount
Backlight Technology:
LED
Video
Maximum Resolution:
800 x 600
Color Supported:
16.2 Million Colors
Contrast Ratio:
1,500:1
Brightness:
450 Nit
Touchscreen Information
Touchscreen Type:
IntelliTouch Surface Wave
Interfaces/Ports
USB:
Yes
VGA:
Yes
DisplayPort:
Yes
Power Description
Operating Power Consumption:
15 W
Physical Characteristics
VESA Mount Compatible:
Yes
Color:
Black
Height:
9.5"
Width:
11.9"
Depth:
2"
Weight (Approximate):
5.84 lb
Item Numbers
GTIN: 0834619006425
UPC: 834619006425
EAN: 0834619006425
UNSPSC: 43211903
