Elo E143585 Accessory

Part Number: E143585
Model: Backpack
to get Free Ground Shipping on your order.
Add to My Shopping List Add to Compare
$428.89
In Stock

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Processor Model
RK3399
Processor Core
Single-core (1 Core)
Standard Memory
4 GB
Memory Technology
LPDDR4

Product Description:

  Computer Components, Elo, Elo Backpack, Linux Debian 10, Rockchip 3399 Processor, 4GB RAM, 32GB Flash, HDMI and USB-C out, Wi-Fi, Ethernet, Bluetooth 5.0, Black, Worldwide
Explore all Elo Backpack Accessories
Add to Quote
Elo E143585 Accessory
Elo E143585 Accessory
Elo E143585 Accessory
Elo E143585 Accessory
Elo E143585 Accessory
Elo E143585 Accessory Elo E143585 Accessory Elo E143585 Accessory Elo E143585 Accessory Elo E143585 Accessory
Full specifications (PDF)

Elo Backpack Accessory Model Overview

The Elo backpack compute engine can transforms touchscreen monitors and signage displays into commercial grade system that can run audio and video content, interactive HTML webpages and Android base apps. Seamlessly manage and update digital content across multiple locations with ease.
Elo E143585 Accessory Overview

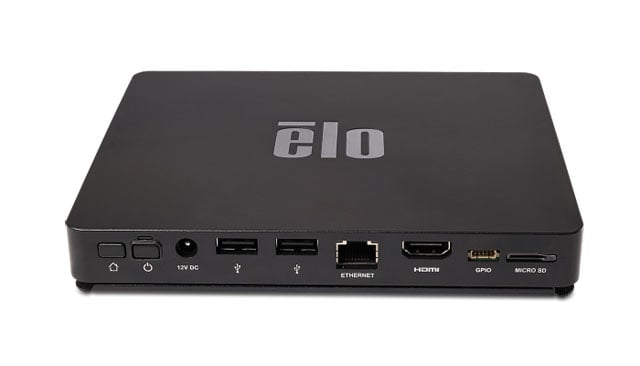

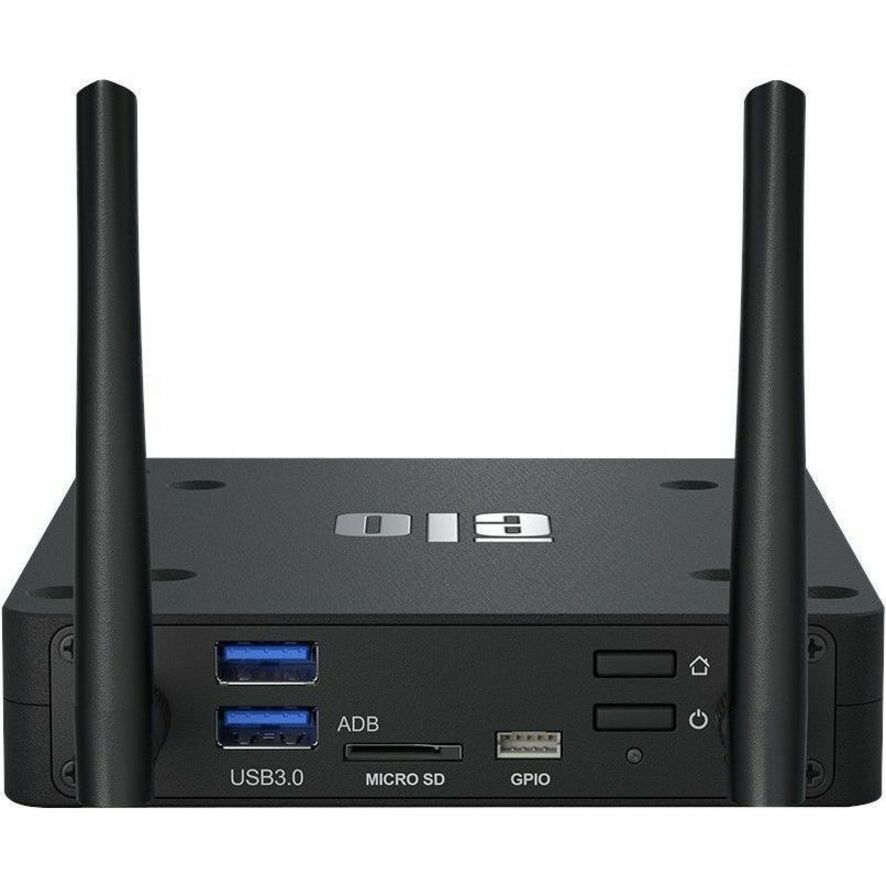

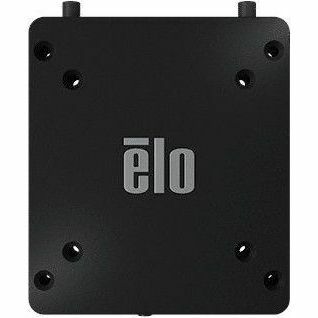

The Elo Backpack is a powerful, commercial-grade Linux PC complete with a low-power, high-performance Rockchip processor. Purpose-built to fit in compact spaces, the Elo Backpack boasts a small footprint in both size and weight and can secure to any counter or in a kiosk easily with the built-in 75 mm or 100 mm VESA mount.

Designed to simplify scaling Elo's enterprise Linux platform across sizes and form factors, simply pair the Elo Backpack with any Elo touchscreen from 7-65 inches to create a consistent deployment that is cost effective and optimized for commercial use.

With decades of development and customizations made to support global enterprise customers, Elo's Linux-based platform offers Linux device drivers, uniform SDKs, a constantly growing set of tools and an expansive lineup across sizes and form factors.

Full specifications (PDF)
Processor & Chipset
Processor Model:
RK3399
Processor Core:
Single-core (1 Core)
Memory
Standard Memory:
4 GB
Memory Technology:
LPDDR4
Display & Graphics
Display Resolution:
3840 x 2160
Graphics Modes:
4K UHD
Video
Scan Format:
2160p
Network & Communication
Ethernet:
Yes
Wireless LAN:
Yes
Bluetooth:
Yes
Interfaces/Ports
USB:
Yes
HDMI:
Yes
Number of USB 3.0 Ports:
4
USB Type-C:
Yes
Number of Network (RJ-45) Ports:
1
Software
Operating System:
Linux Debian 10
Power Description
Input Voltage:
  • 120 V AC
  • 230 V AC
Off-Mode Power Consumption:
280 mW
Environmental Conditions
Minimum Operating Temperature:
32°F (0°C)
Maximum Operating Temperature:
104°F (40°C)
Minimum Storage Temperature:
-4°F (-20°C)
Maximum Storage Temperature:
122°F (50°C)
Minimum Operating Humidity:
20%
Maximum Operating Humidity:
80%
Minimum Storage Humidity:
10%
Maximum Storage Humidity:
95%
Physical Characteristics
Color Family:
Black
Product Color:
Black
VESA Mount Standard:
100 x 100
Height:
1"
Width:
4.5"
Depth:
5.5"
Weight (Approximate):
13.05 oz
Miscellaneous
Package Contents:
  • Backpack Digital Signage Appliance
  • North American Power Cable
  • European Power Cable
  • 1 x Power Brick
  • Locking Screw
  • 2 x Antenna
  • Quick Install Guide
Application/Usage:
  • Commercial
  • Kiosk
Warranty
Limited Warranty:
2 Year
Item Numbers
GTIN: 0843173156583
UPC: 843173156583
EAN: 0843173156583
UNSPSC: 43211507
