Elo E143391 POS Touch Terminal
Full specifications (PDF)

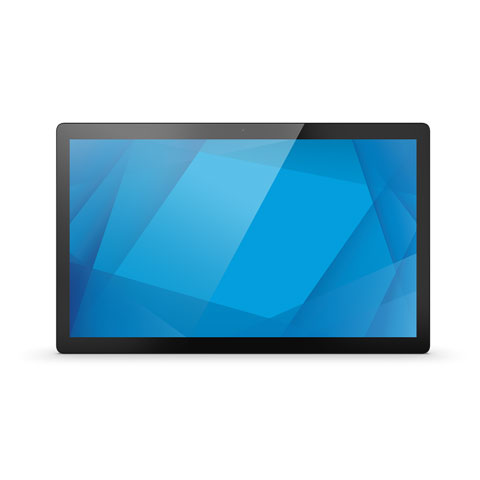

Elo 22-Inch I-Series with Linux POS Touch Terminal Model Overview
The Elo 22" I‑Series Linux is a hardened, future‑proof touchscreen platform built for operational reliability and flexibility. With Linux at its core, modular accessories, and commercial-grade components, it's an excellent fit for businesses looking to deploy interactive solutions in demanding environments.
Key Features
Linux Debian Official Platform
Ship-ready with Debian 10 (or newer) and full support for Linux drivers, SDKs, and peripheral tools.Powerful Rockchip RK3399 CPU
6‑core SoC delivers responsive performance for multimedia and enterprise apps.22″ Full HD 10‑Point Touch Display
1920×1080 IPS with PCAP (TouchPro) glass and edge‑to‑edge design for intuitive interaction.Modular & Expandable
Connect EMV readers, cameras, scanners, and more via four micro‑USB "Edge Connect" ports; plus USB‑C, USB 3.0, Gigabit LAN, micro‑SD, GPIO.PoE Support Available
Optional Power‑over‑Ethernet adapter (PN E413396) simplifies deployment by delivering power and data via a single cable.Integrated 5 MP Auto‑Focus Webcam
Useful for video applications, remote service, and communication.Wireless & Audio
Comes with Wi‑Fi (802.11 a/b/g/n/ac), Bluetooth 5.0, 2 W stereo speakers, and mic.Commercial‑Grade Endurance
Rated for 50,000 hr MTBF, operating from 0–40 °C, and sealed for durability and hygiene.VESA‑Compatible Mounting
Supports 75 mm & 100 mm mounts—wall, pole, countertop, or kiosk—to suit varied settings.EloCare Support
Optional services include advance unit replacement, extended warranty, and even accidental damage protection.
Ideal For
Retail self‑checkout, QSR ordering, and POS stations
Industrial control panels and price-check kiosks
Visitor management, digital signage, and information systems
