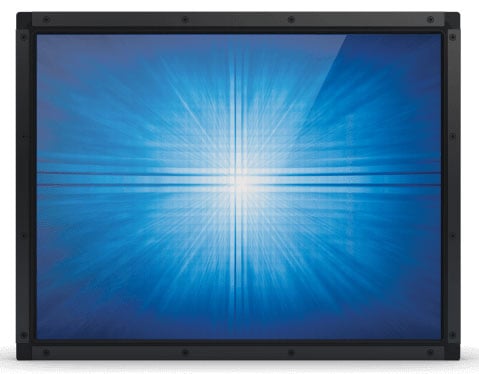

The Elo 1598L 15-inch open-frame LCD touchscreen display is designed for exceptional performance in various commercial environments. Its state-of-the-art LED backlight offers energy efficiency while delivering a bright 500 nit display. Featuring an extended operating temperature range, this display excels in factory automation and instrumentation control applications. With proven Elo touch technology, it guarantees stable and drift-free operation, ensuring accurate touch responses and a vivid viewing experience. The sleek design makes it an ideal choice for kiosks, retail self-service systems, and industrial automation setups. Key features:
15-inch high-bright LCD display with 500 nit brightness
Integrated AccuTouch touchscreen technology for single-touch capabilities
Sealed against dirt, dust, and liquids for reliable performance
Multiple video interfaces: HDMI, VGA & DisplayPort
3-Year warranty for peace of mind
Specifications:
Model: 1598L
Active Display Area: 11.97" x 8.98" / 304.1 mm x 228.1 mm
Native Resolution: 1024 x 768 at 60, 75 Hz
Brightness: 500 nits (LCD), 400 nits (AccuTouch)
Operating Temperature: 0° C to 50°C / 32° F to 122° F
The Elo 1598L 15-inch open-frame LCD touch display features a slim design and narrow outside dimensions due to the state-of-the-art, energy-saving LED backlight, using less electricity to operate and generating less heat. The 1598L includes a 500 nit high bright display and extended temperature range to 50 C (122° F) making it ideal for factory automation and other instrumentation control applications. With an optional 24 VDC converter kit included with the unit, manufacturers can leverage a common 24V power supply in their design with a single AC connection. This compact touch display is designed for touch with proven Elo expertise and provides stable, drift-free operation with outstanding image clarity and light transmission-for accurate touch responses and vivid images. Instantly grabbing and holding users' attention, the 15-inch open frame is perfect for kiosks, casino and amusement, retail self-service, and industrial automation environments.
Easily integrated.

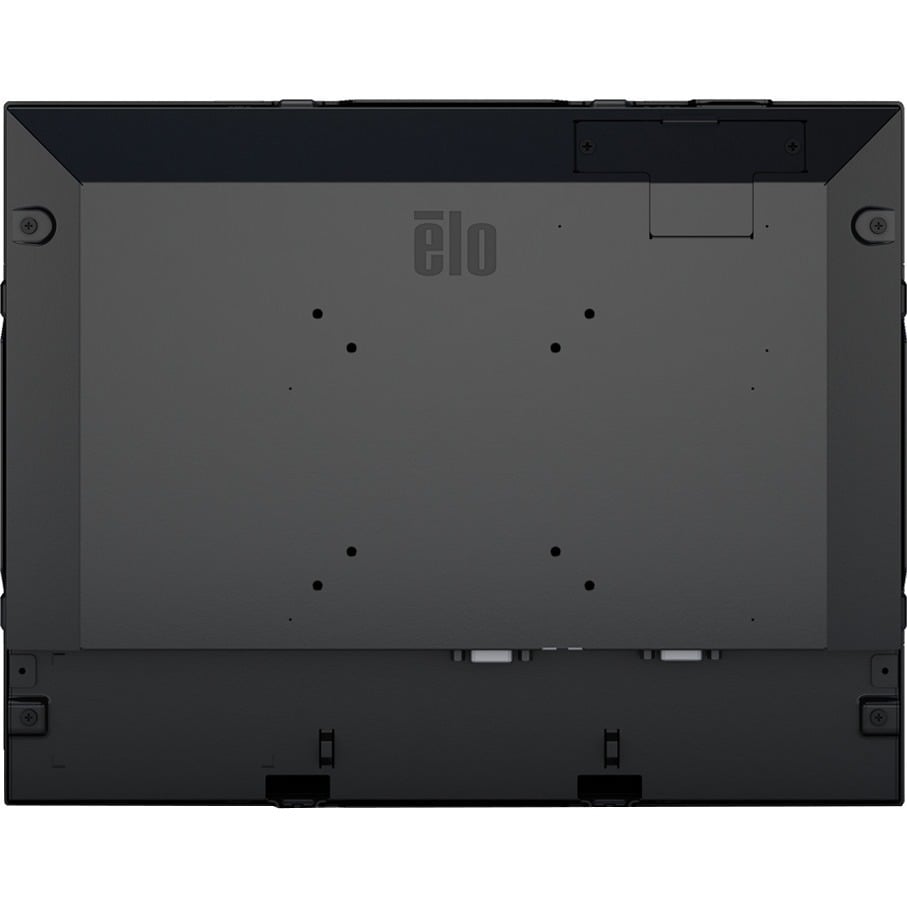

The touchscreen is sealed against dirt, dust and liquids, which simplifies integration into the final enclosure. With the design and tooling being controlled by Elo, long-lasting product availability can be expected. The 1598L also offers mounting features that enable the power converter to be mounted on the back of the monitor for ease of integration.
Touch ready.
The 1598L is available with Elo's industry-leading AccuTouch® five-wire resistive with a standard bezel and single-touch technology, the preferred solution for applications that demand reliability, input flexibility, and contamination resistance.
Commercial-grade.
The Elo open frame touchscreen display delivers the quality and reliability Elo is known for, and is backed by our three-year standard warranty. We design, build and are responsible for the complete solution, with touch integrated from the start. Using our touchscreens combined with our software and drivers, everything is designed to work together and is tested as part of our life-testing processes. All our products go through rigorous reliability testing (over 20 tests) to deliver 50,000 MTBF.
Other features.
HDMI, Display Port and VGA video interfaces
Backed by a standard three-year warranty extendable to five years, including the LCD panel
What are the key specifications of the Elo E126407 1598L touchscreen?
The Elo 1598L is a 15-inch open-frame LCD touchscreen with 1024 x 768 XGA resolution, 500 nits brightness, 1500:1 contrast ratio, and AccuTouch five-wire resistive single-touch technology. It features a 4:3 aspect ratio, 16.2 million colors, LED backlighting for energy efficiency, and operates across an extended temperature range to 50°C (122°F), making it ideal for industrial automation and instrumentation control applications.
What video and connectivity options does the Elo 1598L offer?
The Elo 1598L provides multiple video interfaces including HDMI, VGA, and Display Port, ensuring compatibility with a wide range of systems and installations. Touch input is controlled via USB, and the unit includes a tethered remote OSD control box for on-screen display adjustments. Contact us today for cable and adapter options available from us.
Is the Elo 1598L suitable for outdoor or high-temperature environments?
Yes, the Elo 1598L is designed for industrial environments with an extended operating temperature range up to 50°C (122°F), making it well-suited for factory automation and instrumentation control applications. The touchscreen is sealed against dirt, dust, and liquids to simplify integration into final enclosures and protect against environmental contaminants.
What power supply options are available for the Elo 1598L?
The Elo 1598L uses DC 24V or DC 12V power input. An optional 24 VDC converter kit is available separately, allowing manufacturers to leverage a common 24V power supply in their design with a single AC connection. The unit does not include a power brick—contact us today for power supply options available from us.
What is included in the box with the Elo E126407?
The Elo 1598L package includes HDMI cable, USB touch cable, VGA cable, remote OSD control box, L-shaped side mount brackets with screws, and a quick installation guide. A power brick is not included, but we offer optional power supply kits and converters separately. Visit barcodesinc.com to view all included accessories and optional components.
What warranty and support does the Elo 1598L come with?
The Elo 1598L includes a 3-year manufacturer warranty on the touchmonitor and touch technology. The AccuTouch touchscreen carries a 5-year warranty, ensuring long-term reliability for commercial kiosk, retail self-service, and industrial automation applications. Contact us today for warranty details and technical support options available from us.
The Elo E126407 Touchscreen is also known as
ELO-E126407
or E126407.
Full specifications (PDF)
