Elo E124537

Elo ELO 2203LM 22 inch Medical Grade Touchscreen Monitor - 2203LM 21.5" LCD Touchscreen Monitor - 16: 9 - 25 ms - 22" Class - TouchPro Projected CapacitiveMulti-touch Screen - 1920 x 1080 - Full HD - 16.7 Million Colors - 250 Nit, 240 Nit - LCD Panel, TouchPro PCAP - LED Backlight - Speakers - HDMI - USB - VGA - White
  • LED backlight technology provides for industry-leading low power consumption and less hazardous materials
  • The 250 Nit - LCD Panel brightness gives an exceptionally visible display for clear and consistent on-screen pictures
  • HDMI (High Definition Multimedia Interface) delivers fantastic sound/video quality alongside a single-cable comfort
  • VESA mount compatibility allows you to mount the touch screen on a wall or with a stand depending on your specific needs
Read More
$877.00
In Stock:
Ships Same Day

Full specifications (PDF)

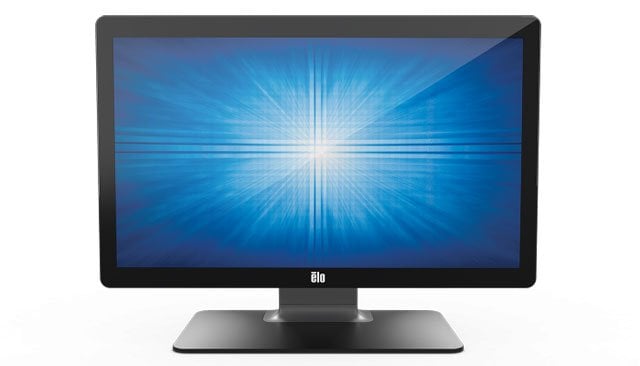

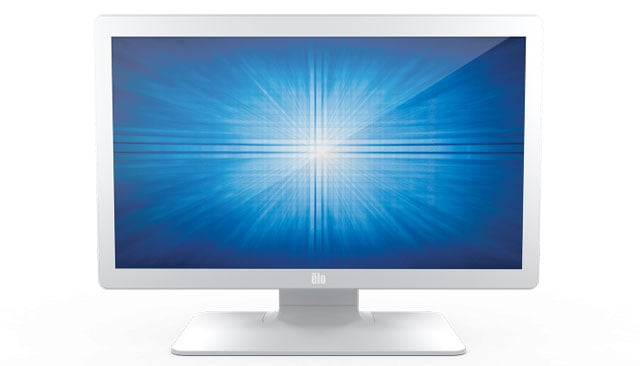

2203LM 22" Medical Grade Touchscreen Monitor
The Elo 2203LM 22-inch Medical Grade Touchscreen Monitor merges best-in-class touchscreen technology with DICOM Part 14 functionality to help enhance clinical review for health care providers while increasing patient engagement. With a compact form factor and clean design, the touchscreen monitors are well-suited for EMR documentation, image viewing, clinical collaboration, deployment within the laboratory and pharmacy and for integration into medical devices. Purpose-built for health care, the 03-Series medical monitors comply with IEC60601-1 4th edition requirements and are IP54 certified to support health care environments.
Elo E124537 Overview

03-Series Healthcare Touchscreen Monitors

The Elo 03-Series of Touchscreen Monitors designed for the Healthcare applications includes four sizes - a 19-inch square aspect ratio display and 22, 24 and 27-inch wide aspect ratio displays. With a compact form factor and clean design for easy integration the 03-Series monitors are well-suited for point-of-sale, point of information, signage and hospitality applications. Additionally, the 03-Series offers IEC60601-1 4th edition and IP54 compliance to support healthcare installations.

Brilliant Displays from 19 to 27-inches

The clear glass touchscreens with Elo's industry-leading TouchPro® PCAP technology offer wide viewing angles with excellent image clarity, resolution, and light transmission for accurate touch response and vivid images. With up to 10 touches enabled, the 03-Series Monitors provide a tablet-like experience.

Well-Suited for

The 03-Series Touchscreen Monitors offer flexibility for installation in a variety of healthcare environments - from exam rooms and lab clinics to patient check-in and pharmacy check out. Whether you need a touchscreen at a nurse's station to enable support or as a directory to help patients and visitors get around the healthcare facility, the line of 03-Series monitors can support increased communication among patients and healthcare providers.

Privacy Matters

Optional privacy screen can be used as an additional physical safeguard for private health information or sensitive administrative data. Whether you are a physician or a patient, privacy matters.

Get a handle on it

Some healthcare applications require a display with flexibility of movement to support the appointment with a patient. With handles connected to the monitor, a physician can easily move the display to a comfortable orientation.

Mount with Flexibility

Delivering a seamless experience from patient check-in to check-out is important, so monitor placement matters. The monitors can be mounted on a stand or any mount compatible with VESA configuration - allowing integrators to meet the IT monitor placement requirements demanded by healthcare providers.

The Elo Advantage

Customization

Elo offers customized solutions with everything from slight modifications to ground up designs. If you need something customized.

Global Reach

Elo products are distributed and available across the globe. Every 21 seconds, an Elo touchscreen is installed somewhere in the world.

Long Life Cycle

We do everything in our power to minimize design changes and we have kept some monitors available to order for over seven years.

Built-to-Last

The 03-Series Touchscreen Monitors deliver the quality and reliability Elo is known for and are backed by our 3-year standard warranty with an optional extension to 5-years. We design and build the complete solution, with touch integrated from the start.

Protect Your Product
Elo Service Contracts (E898648)
3 Year Extended Warranty - Warranty - Advance Unit Replacement - Maintenance - Parts & Labor
Temporarily out of stock; available to order
$43.40
+ Add to Quote
Elo Service Contracts (E898449)
Warranty/Support - 5 Year Extended Warranty - Warranty - Service Depot - Maintenance - Parts & Labor - Physical Service
Temporarily out of stock; available to order
$43.40
+ Add to Quote
Elo Service Contracts (E898247)
Warranty/Support - 4 Year Extended Warranty - Warranty - Maintenance - Parts & Labor - Physical Service
Temporarily out of stock; available to order
$22.10
+ Add to Quote
Elo Service Contracts (E895125)
5 Year Extended Warranty - Warranty - Advance Unit Replacement - Maintenance - Parts & Labor
Temporarily out of stock; available to order
$107.10
+ Add to Quote
Elo Service Contracts (E894921)
4 Year Warranty Coverage - Warranty - Advance Unit Replacement - Technical
Temporarily out of stock; available to order
$74.80
+ Add to Quote

Full specifications (PDF)

Technical Information
Screen Size Class:
22"
Viewable Screen Size:
21.5"
Screen Mode:
Full HD
Response Time:
25 ms
Aspect Ratio:
16:9
Mount Type:
  • Wall Mountable
  • Pole Mount
  • Shelf Mount
Backlight Technology:
LED
Horizontal Frequency:
30 kHz to 82 kHz
Vertical Frequency:
50 Hz to 75 Hz
Video
Maximum Resolution:
1920 x 1080
Color Supported:
16.7 Million Colors
Native Contrast Ratio:
1,000:1
Brightness:
  • 250 Nit - LCD Panel
  • 240 Nit - TouchPro PCAP
Audio
Speakers:
Yes
Touchscreen Information
Touchscreen Type:
TouchPro Projected Capacitive
Multi-touch Screen:
Yes
Interfaces/Ports
HDMI:
Yes
USB:
Yes
VGA:
Yes
Power Description
Operating Power Consumption:
22.50 W
Physical Characteristics
VESA Mount Compatible:
Yes
VESA Mount Standard:
100 x 100
Color:
White
Height with Stand:
15.11"
Width with Stand:
20.74"
Depth with Stand:
7.61"
Weight (Approximate):
11.46 lb
Weight with Stand (Approximate):
14.99 lb
Item Numbers
GTIN: 0843173124018
UPC: 843173124018
EAN: 0843173124018
UNSPSC: 43211903
