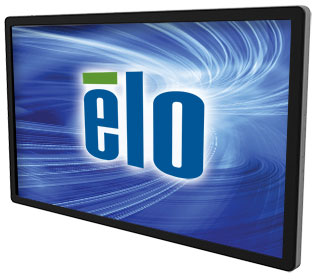

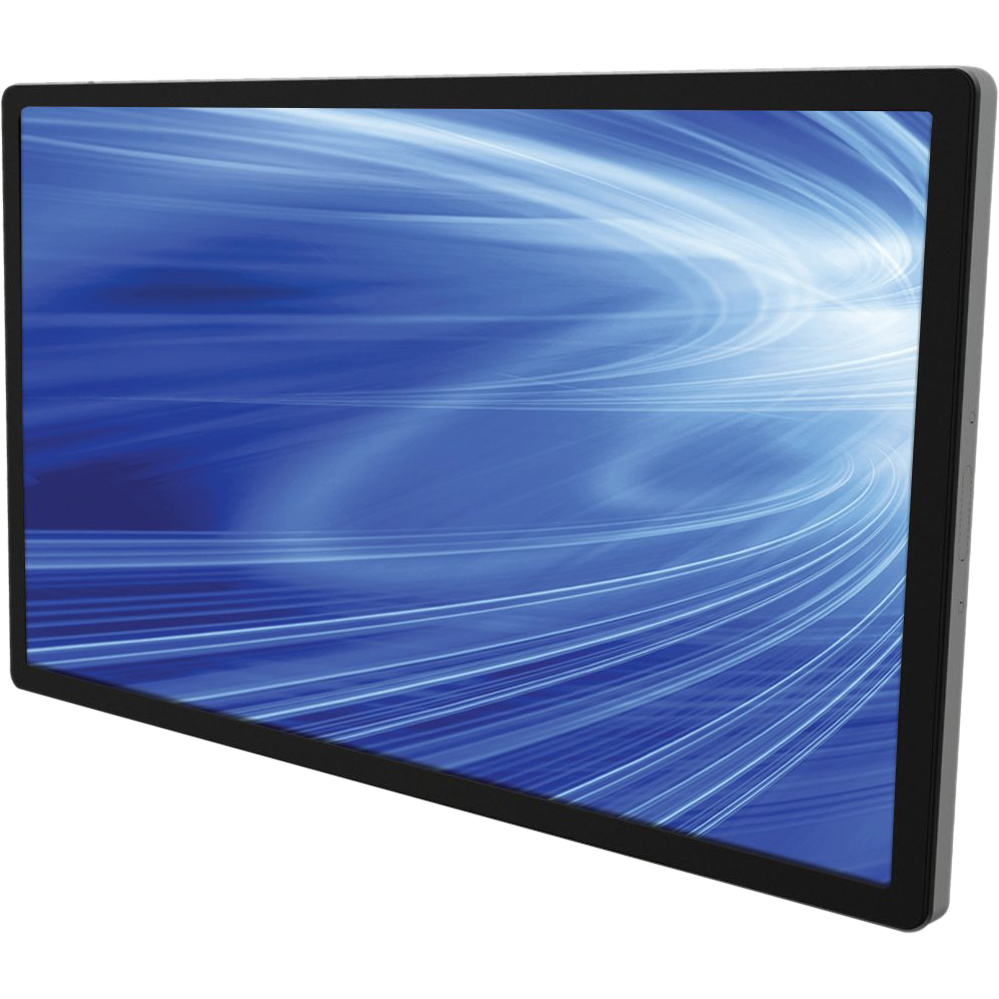

Elo E107085 Digital Signage Display

Part Number: E107085

Model: 4201L

Discontinued See Replacement

Price Match Guarantee - We'll match any authorized retailer's price i

Quantity:

Product Highlights

View All

Screen Size Class

42"

Viewable Screen Size

42"

Screen Mode

Full HD

Response Time

6 ms

Product Description:

Elo 4201L 42" LCD Touchscreen Monitor - 16:9 - 6 ms - 42" Class - OpticalMulti-touch Screen - 1920 x 1080 - Full HD - 16.7 Million Colors - 4,000:1 - 700 Nit - LED Backlight - Speakers - HDMI - USB - VGA - DisplayPort - Black - RoHS, China RoHS

Explore all Elo 4201L Digital Signage Displays

Add to Quote

Overview

Full specifications (PDF)

Elo 4201L Digital Signage Display Model Overview

Eloâ€™s new 4201L 42-inch interactive digital signage touch screen delivers a professional-grade large format display in a slim, integrated package. Designed from the bottom up for retail, hospitality, healthcare and other commercial markets, the Elo IDS is a high-quality, interactive canvas for attracting and engaging consumers. The 4201L offers system integrators and value-added resellers (VARs) a high performance solution that is easy to deploy and maintain in public environments. With a total thickness of 3.2 inches (81 mm), the 4201L is compliant with ADA and IBC requirements of less than 4-inch protrusion for wall-mounted products when used with a compatible wall-mount.

Elo E107085 Digital Signage Display Overview

Elo's new 4201L 42-inch interactive digital signage touch screen delivers a professional-grade large format display in a slim, integrated package. Designed from the bottom up for retail, hospitality, healthcare and other commercial markets, the Elo IDS is a high-quality, interactive canvas for attracting and engaging consumers. The 4201L offers system integrators and value-added resellers (VARs) a high performance solution that is easy to deploy and maintain in public environments. With a total thickness of 3.2 inches (81 mm), the 4201L is compliant with ADA and IBC requirements of less than 4-inch protrusion for wall-mounted products when used with a compatible wall-mount.

Detailed Specs

Full specifications (PDF)

Technical Information

Screen Size Class:

42"

Viewable Screen Size:

42"

Screen Mode:

Full HD

Response Time:

6 ms

Aspect Ratio:

16:9

Horizontal Viewing Angle:

178°

Vertical Viewing Angle:

178°

Mount Type:

Wall Mountable
Desk Mountable

Backlight Technology:

LED

HDCP Supported:

Yes

Features:

Digital Signage Ready

Horizontal Frequency:

73 kHz

Video

Maximum Resolution:

1920 x 1080

Standard Refresh Rate:

60 Hz

Color Supported:

16.7 Million Colors

Contrast Ratio:

4,000:1

Brightness:

700 Nit

Audio

Speakers:

Yes

Touchscreen Information

Touchscreen:

Yes

Touchscreen Type:

Optical

Multi-touch Screen:

Yes

Interfaces/Ports

HDMI:

Yes

USB:

Yes

VGA:

Yes

Headphone:

Yes

DisplayPort:

Yes

Power Description

Operating Power Consumption:

85 W

Standby Power Consumption:

14 W

Off-Mode Power Consumption:

2 W

Physical Characteristics

VESA Mount Compatible:

Yes

VESA Mount Standard:

400 x 400

Product Color:

Black

Height:

23.1"

Width:

39.2"

Depth:

3.2"

Weight (Approximate):

52.40 lb

Miscellaneous

Platform Supported:

Environmentally Friendly:

Yes

Environmental Certification:

RoHS
China RoHS

Item Numbers

GTIN: 0741149331876, 0754568800731, 7411493318764

UPC: 741149331876, 754568800731

EAN: 0741149331876, 0754568800731, 7411493318764

UNSPSC: 43211903
