Elo E103738 Touchscreen Signage
Request a Bulk Pricing Quote
Chat with a Product Expert

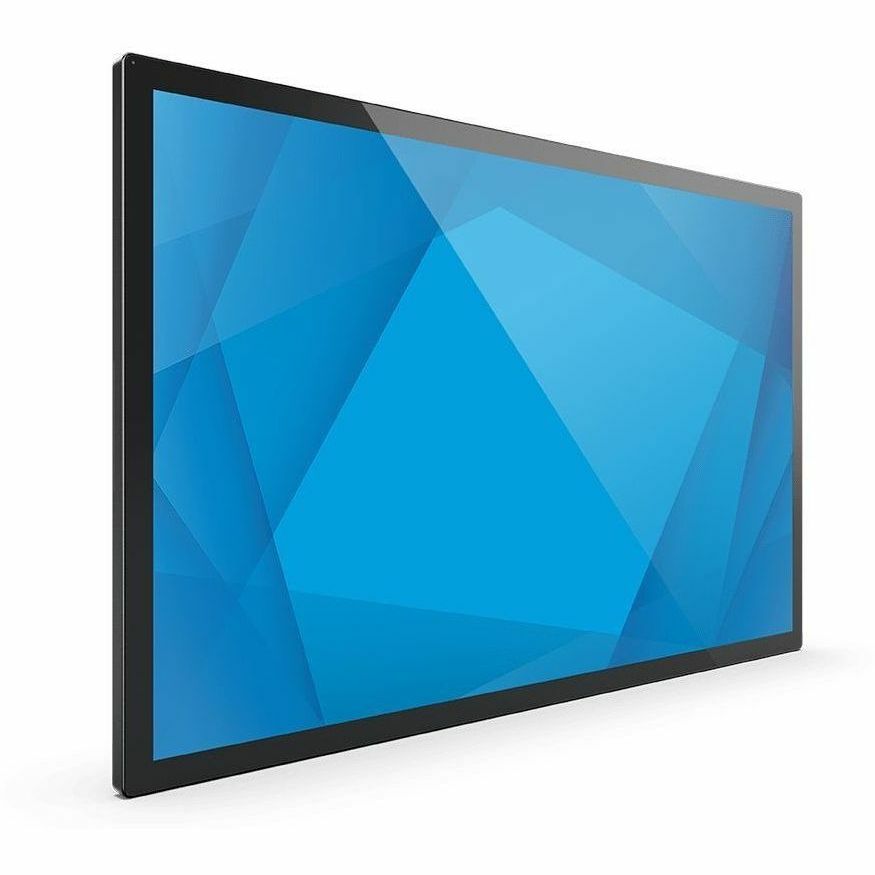

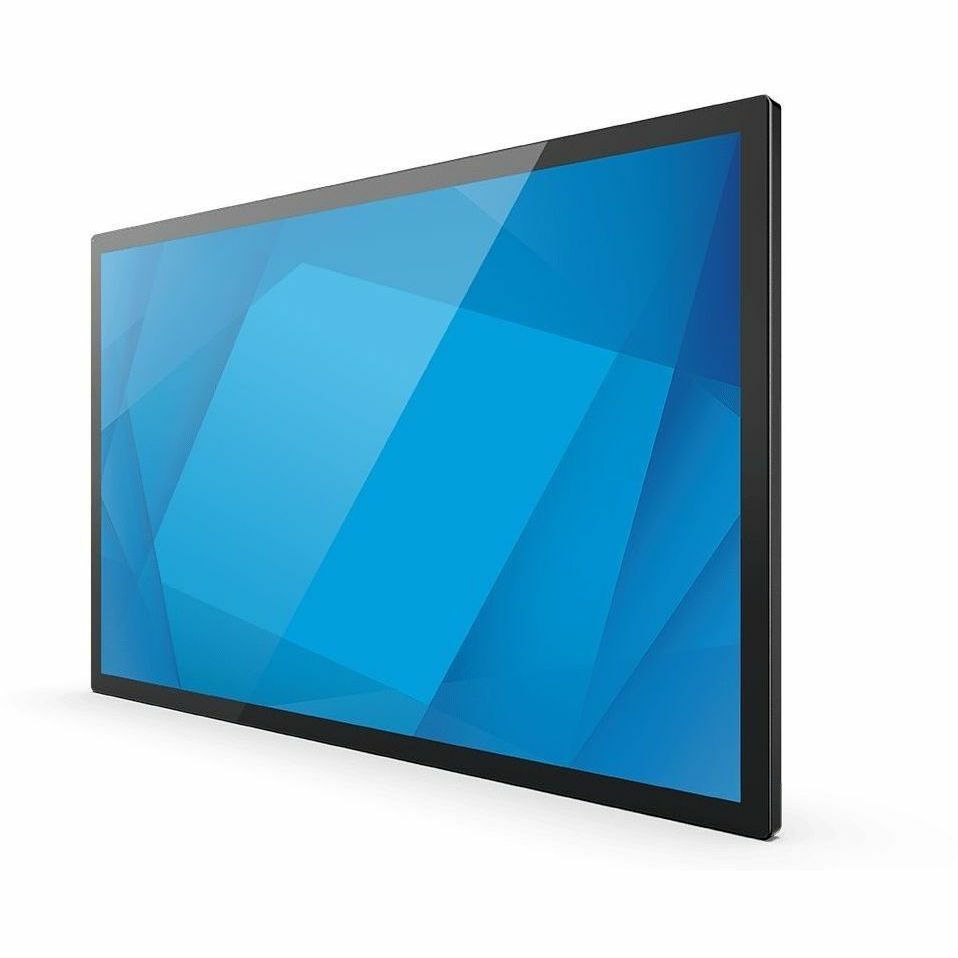

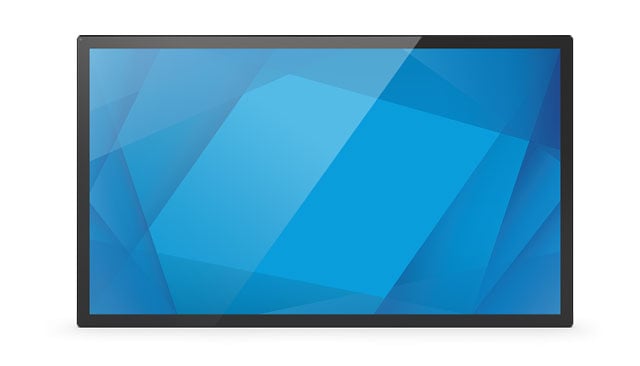

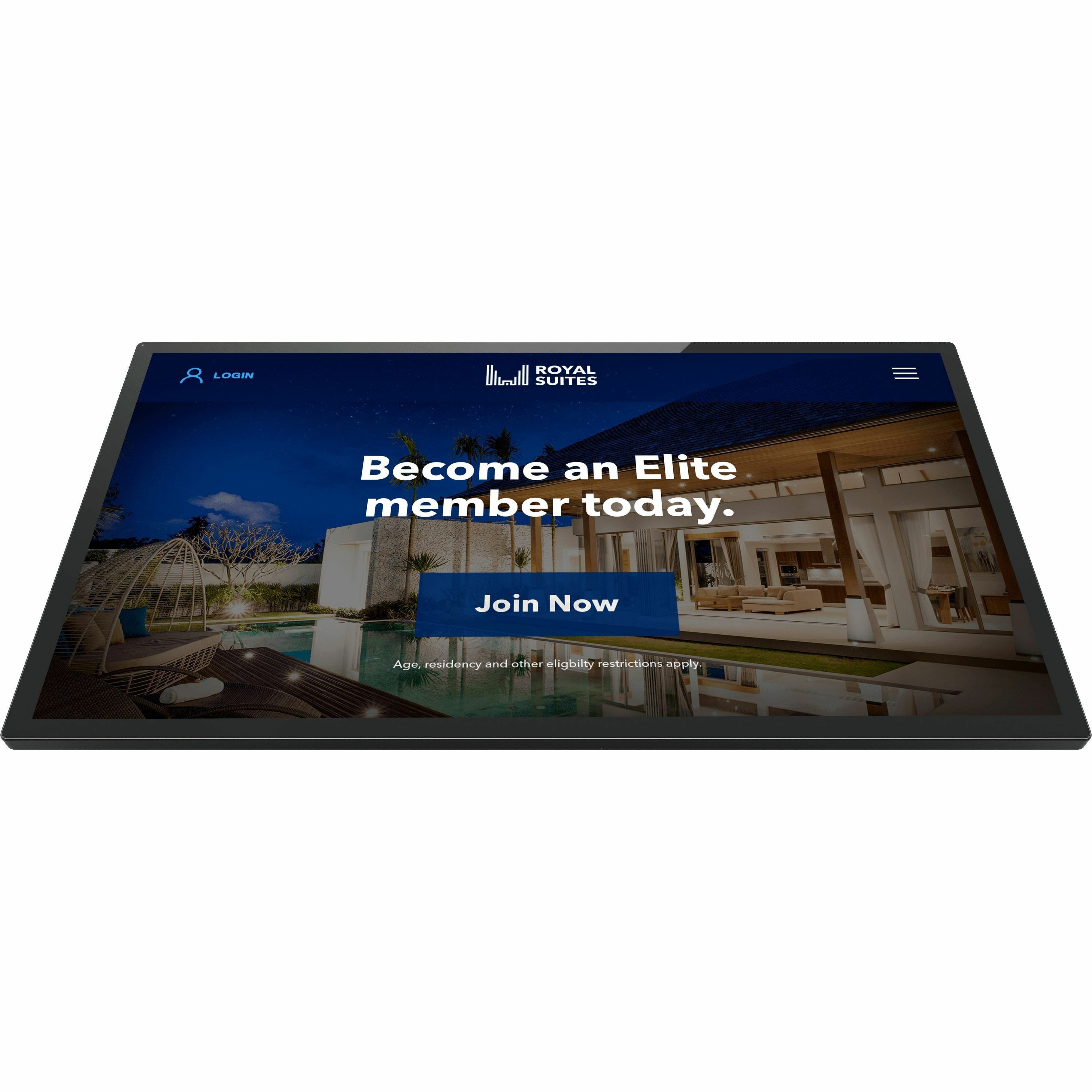

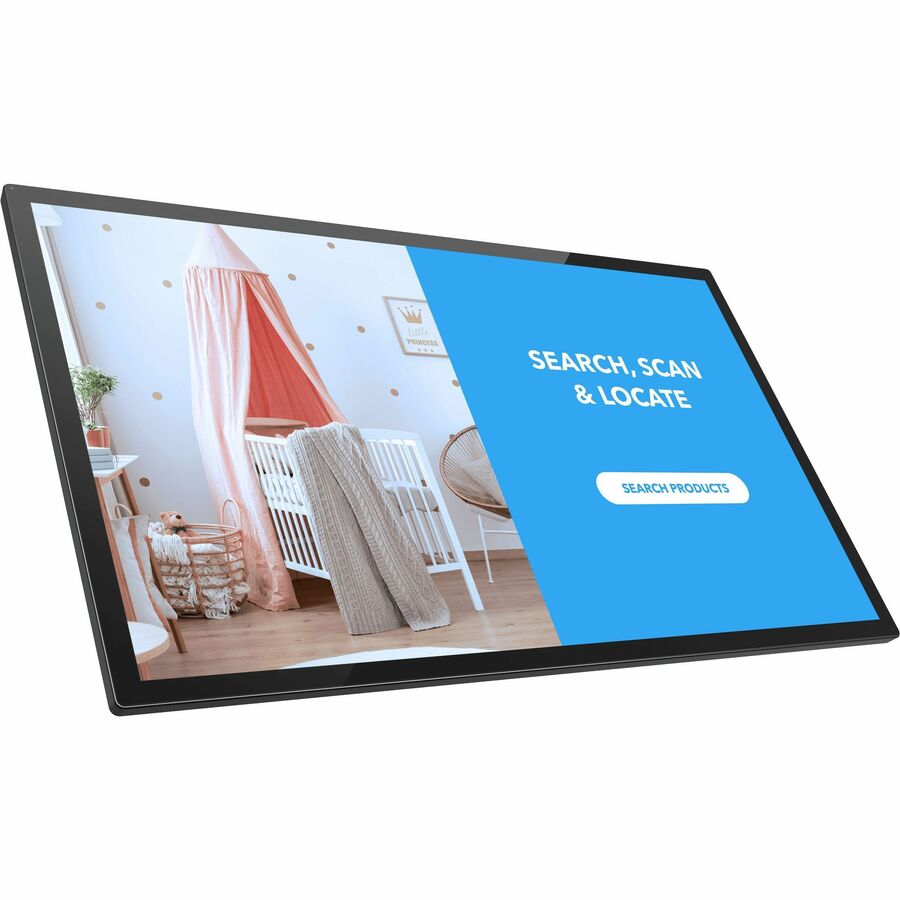

Elo 5054L Touchscreen Signage Model Overview
The Elo 5054L 50" Touchscreen Signage delivers an exceptional interactive experience, making it perfect for retail environments, transportation hubs, and public displays. With its sleek black bezel, this 50" active matrix TFT LCD touchscreen boasts a stunning 3840 x 2160 native resolution and a wide viewing angle of ±89°. Enhanced with TouchPro® PCAP technology, it supports up to 40 simultaneous touches, ensuring responsive and intuitive interactions. Additional features, such as built-in IoT control and robust connectivity options, create a versatile display solution to meet various digital signage needs.
Key Features Native Resolution: 3840 x 2160 @ 60 HzTouch Technology: TouchPro® PCAP and InfraredBrightness: 500 nits typicalWide Viewing Angle: ±89° horizontal and verticalIntegrated IoT Control: EloView supportedVersatile Mounting Options: VESA 400 x 400mmSpecifications Display Size: 50" / 1270 mm diagonalActive Display Area: 43.14" x 24.27" / 1095.8 mm x 616.4 mmAspect Ratio: 16:9Contrast Ratio: 4000:1Response Time: 9.5 msecOperating Temperature: 0 °C to 40 °CWeight: 56.79 lbs / 24.23 kg (unpackaged)Warranty: 3 years standardPower Consumption: 99 W ON, 1.8 W SLEEP, 0.28 W OFFShipping Dimensions: 51.57" x 37" x 7.36"
Technical Information
Impact Protection (IK) Rating:
IK07
Panel Technology:
Thin Film Transistor (TFT)
Operation Hours:
24 Hours/7 Days
Display & Graphics
Viewable Screen Size:
50"
Number of Simultaneous Touchpoints:
40
Display Resolution:
3840 x 2160
Backlight Technology:
LED
Orientation:
Landscape/Portrait
Video
Native Contrast Ratio:
4,000:1
Network & Communication
Interfaces/Ports
Digital Audio Optical Output:
Yes
Number of HDMI 2.0 Ports:
2
Power Description
Environmental Conditions
Minimum Operating Temperature:
32°F (0°C)
Maximum Operating Temperature:
104°F (40°C)
Minimum Storage Temperature:
-4°F (-20°C)
Maximum Storage Temperature:
140°F (60°C)
Minimum Operating Humidity:
20%
Maximum Operating Humidity:
80%
Minimum Storage Humidity:
10%
Maximum Storage Humidity:
95%
Physical Characteristics
VESA Mount Standard:
400 x 400
Mount Type:
Table Mount Wall Mountable
Weight (Approximate):
56.70 lb
Miscellaneous
Application/Usage:
Conference Room Retail Kiosk Hospitality Commercial
Item Numbers
GTIN:
0843173156071
UPC:
843173156071
EAN:
0843173156071
UNSPSC:
43211902
