Elo E103208 Touchscreen

A newer version of this item is available.
It is replaced by the Elo E512043 Touchscreen.

Elo 1537L - Elo 1000 Series 1537L Touch Screen Monitor - 15" - Capacitive - 1024 x 768 - 5:4 - Black

The XGA lcd touchscreen monitor is perfect for point-of-sale, hospitality, and many other retail applications
Capacitive touchscreens must be impelled with a stylus carrying an electrical charge or by the touch of human skin
The XGA touchscreen highlights XGA display with the resolution of up to 1024 x 768 pixels
The 500:1 contrast ratio produces enhanced sharpness and shading accuracy in each picture
The 200 Nit brightness gives an exceptionally visible display for clear and consistent on-screen pictures

Need a different version? See all Elo 1537L Touchscreens

Discontinued See Replacement

Add to Quote

Overview

Full specifications (PDF)

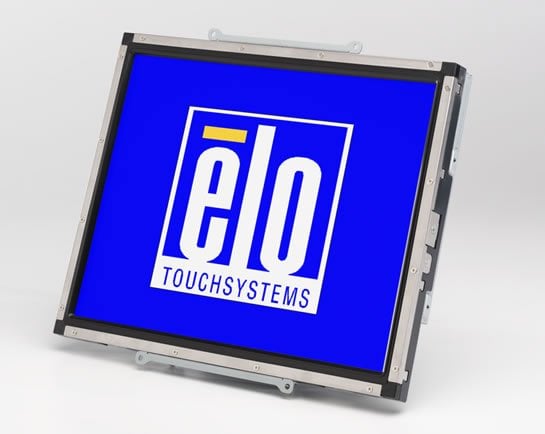

Elo 1537L Touchscreen Model Overview

The 1537L has a compact form factor with thin borders and multiple mounting options for easy integration. It features a high qualitly panel along with a unique, injection-molded minibezel with virtually invisible watertight seal and choice of touch technology. Future generation panels can be phased-in without external changes. Multilingual on-screen display.

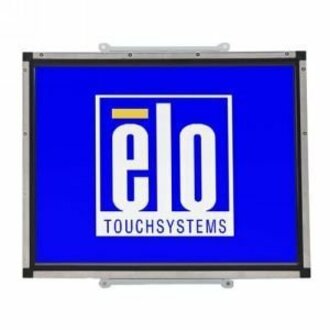

Elo E103208 Touchscreen Overview

Elo's chassis LCD monitors have a long-lasting product cycle because the enclosure is controlled by Elo's specifications. Future panel improvements are therefore possible without external changes. It features a high quality panel along with a unique, injection-molded mini bezel with virtually invisible watertight seal and choice of touch technology.

Detailed Specs

Full specifications (PDF)

Technical Information

Screen Size Class:

15"

Viewable Screen Size:

15"

Screen Mode:

XGA

Screen Surface:

Anti-glare

Response Time:

14.50 ms

Aspect Ratio:

5:4

Video

Maximum Resolution:

1024 x 768

Standard Refresh Rate:

75 Hz

Color Supported:

16.2 Million Colors

Contrast Ratio:

500:1

Brightness:

200 Nit

Touchscreen Information

Touchscreen:

Yes

Touchscreen Type:

Capacitive

Interfaces/Ports

USB:

Yes

Physical Characteristics

Product Color:

Black

Height:

10.4"

Width:

13.2"

Depth:

1.6"

Weight (Approximate):

6.60 lb

Miscellaneous

Platform Supported:

Item Numbers

GTIN: 7411493013812

EAN: 7411493013812

UNSPSC: 43211903

Reviews

Q&A

Questions? Get help from
a POS Expert!

The Elo E103208 Touchscreen is also known as ELO-E103208 or E103208.
