Elo E103164 Touchscreen Signage

Part Number: E103164
Model: 3204L
$1,576.24
In Stock

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Panel Technology
Thin Film Transistor (TFT)
Operation Hours
24 Hours/7 Days
Number of Screens
1
Viewable Screen Size
31.50"

Product Description:

  Touchscreen Signage, Elo 3204L, 32-inch wide LCD Monitor, FHD, HDMI 1.4 & DisplayPort 1.2, Projected Capacitive 40-Touch with Palm Rejection & Touch Thru, Clear Anti-friction Glass, USB-C, Black

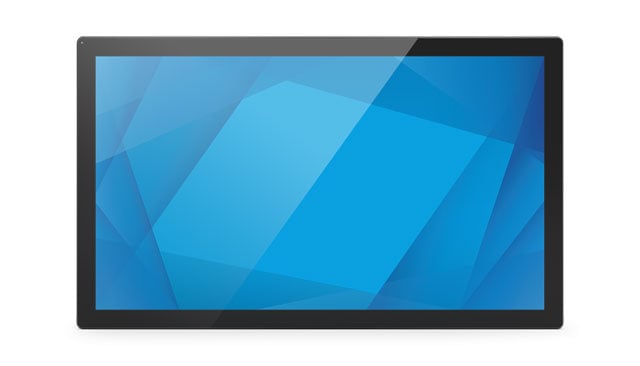

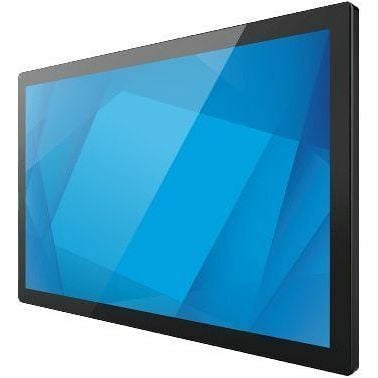

Elo 3204L Touchscreen Signage Model Overview

The Elo 3204L 32-inch touchscreen signage monitor merges cutting-edge technology with design excellence, making it ideal for high-traffic environments. With a sleek, minimalistic aesthetic, this display enhances customer interaction through applications like self-service kiosks, wayfinding, and more. It features a robust touch interface that supports up to 40 simultaneous touches, ensuring rapid responsiveness and user satisfaction, even in continuous commercial use.


Key Features
  • 32-inch Touchscreen with TouchPro® PCAP technology for up to 40 touches.
  • Built-in IoT Control for seamless device management.
  • Designed for 24/7 Operation with UL-60950 and IK-07 compliance.
  • Versatile Mounting Options including VESA for external PC integration.
  • High Brightness of 400 nits for excellent visibility.

Specifications
  • Display: 32-inch active matrix TFT LCD
  • Active Display Area: 27.5" x 15.47" / 698.4 mm x 392.9 mm
  • Native Resolution: 1920 x 1080 @ 60Hz
  • Brightness: 400 nits
  • Viewing Angle: ±89° Horizontal / ±89° Vertical
  • Weight: Unpackaged: 26.17 lbs / Packaged: 33.75 lbs
  • Power Consumption: ON: 44W, SLEEP: 1.43W, OFF: 0.29W
  • Temperature Range: Operating: 0° C to 40° C
  • Regulatory Approvals: UL 62368-1, CE, FCC
  • Warranty: 3 years standard with AUR included
Elo E103164 Touchscreen Signage Overview

3204L 32" | Interactive Display

Elevate your applications with Elo's 3204L 32-inch touch screen monitor that brings interactivity to any setting. With support for up to 40 simultaneous touches, lightning-fast responsiveness, and anti-friction glass, Elo's 3204L prioritizes the user experience. And by combining the touch display with the Elo Backpack or a Brightsign player, you can effortlessly convert this display into a versatile, life-sized 32-inch tablet.

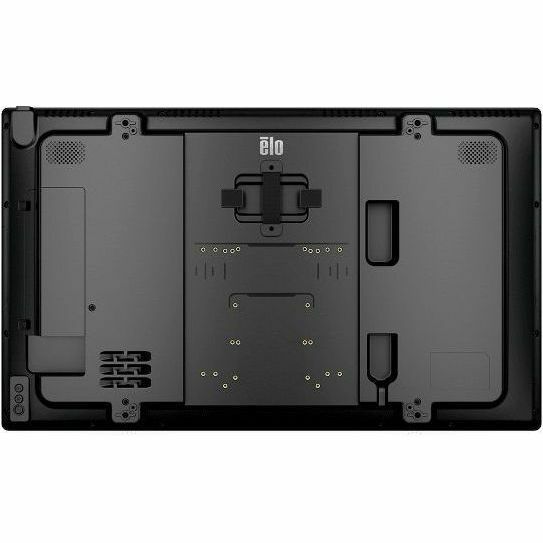

The back of your display never looked so clean. | Remote device management enabled with EloView.

With the addition of the integrated IoT control, you can easily manage your device settings with EloView, Crestron or your preferred MDM solution via provided APIs.

Find the perfect digital signage display for your applications, with sizes ranging from 32 inches to 55 inches. | Connect your accessories to the edge. With up to 1.2 Amps, you can easily run four Elo Edge Connect peripherals at one time.

Whether you're enhancing your retail environment with endless aisle, engaging customers with easy to use self-service kiosks, guiding visitors with interactive wayfinding or helping doctors and patients interact in the hospital, the 3204L digital signage display offers a sleek, minimalistic design engineered to withstand the demands of continuous commercial use.

Touch Thru Glass Enabled with PCAP

With touch thru capability, Elo's TouchPro® PCAP interactive displays can be mounted behind a mirror, in a counter or in a fully encased kiosk for added durability or aesthetics.

Versatile mounting options for commercial interactive displays.

Our commercial-grade interactive displays can be mounted in landscape, portrait and tabletop orientations, providing optimal flexibility for mounting to a wall, in a kiosk or tabletop.

Designed for the demands of commercial environments.

Built for 24/7 use in high-traffic environments with UL-60950 and IK-07 compliance, Elo's 3204L delivers the reliability and durability businesses need even in the most demanding conditions. With the addition of extended product life cycles and global certifications, you can trust in the long-term performance and suitability of the 3204L for diverse international markets.

Get peace of mind with EloCare.?

EloCare delivers service and support from the people who know your Elo products best. And as part of the three-year standard warranty for large format digital signage displays, Elo offers complimentary advance unit replacement to cover you in the unfortunate event your device requires service.

Quality that is built to last.

We engineer each product with a goal that goes beyond meeting expectations; we aim to exceed them. By integrating our technology into your operations, you are partnering with us - and as your partner, we are committed to delivering reliable products so you can focus on growth and innovation, confident in the knowledge that we stand behind our products, ready to support you every step of the way.

Technical Information
Panel Technology:
Thin Film Transistor (TFT)
Operation Hours:
24 Hours/7 Days
Display & Graphics
Number of Screens:
1
Viewable Screen Size:
31.50"
Display Screen Type:
LCD
Touchscreen:
Yes
Multi-touch Screen:
Yes
Number of Simultaneous Touchpoints:
40
Display Resolution:
1920 x 1080
Response Time:
8 ms
Aspect Ratio:
16:9
Backlight Technology:
LED
Maximum LED Life:
5.7 Year
Video
Scan Format:
1080p
Native Contrast Ratio:
3,000:1
Color Depth:
8-bit
Brightness:
400 Nit
Network & Communication
Ethernet:
Yes
Wireless LAN:
Yes
Interfaces/Ports
USB:
Yes
HDMI:
Yes
DisplayPort:
Yes
Number of USB 2.0 Ports:
2
USB Type-C:
Yes
Power Description
Input Voltage:
  • 120 V AC
  • 230 V AC
Environmental Conditions
Minimum Operating Temperature:
32°F (0°C)
Maximum Operating Temperature:
104°F (40°C)
Minimum Storage Temperature:
-4°F (-20°C)
Maximum Storage Temperature:
140°F (60°C)
Minimum Operating Humidity:
20%
Maximum Operating Humidity:
80%
Minimum Storage Humidity:
10%
Maximum Storage Humidity:
95%
Physical Characteristics
Color Family:
Black
Product Color:
Black
VESA Mount Standard:
400 x 400
Height:
18"
Width:
30"
Depth:
1.9"
Weight (Approximate):
24.03 lb
Miscellaneous
Energy Star:
Yes
Item Numbers
GTIN: 0843173156040
UPC: 843173156040
EAN: 0843173156040
UNSPSC: 43211902
