Full specifications (PDF)
Processor Type:
Core i5
Processor Speed:
3.60 GHz

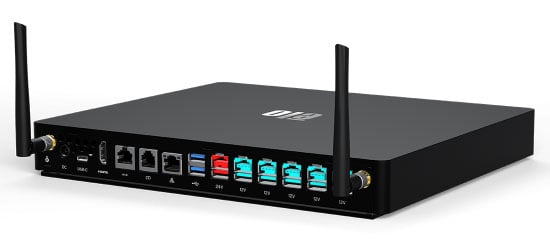

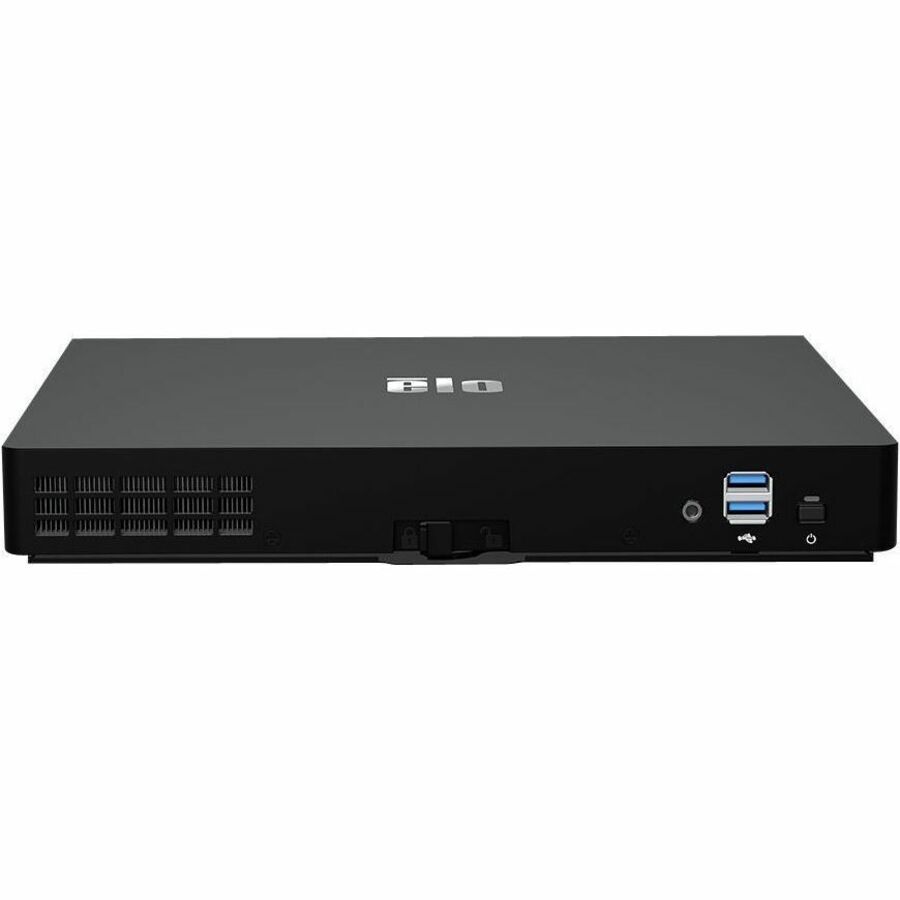

Elo E102709 POS System
Part Number:
E102709
Model:
EloPOS Pack
Elo EloPOS Pack POS System Model Overview
Delivering a powerful enterprise-ready compute platform in a sleek, compact form factor the EloPOS Pack is backed by the security and infrastructure of a Windows-based system with Intel's Q370 Chipset and the speed of Intel's 8th gen processors; the EloPOS Pack provides the power you need to run your business. Designed with versatile connectivity options, plug in anything from Elo's latest monitor via single cable USB-C to a legacy printer requiring a 12V powered-USB. Provide the flexibility to make upgrades as your business requirements change.
Elo E102709 POS System Overview
The EloPOS Pack delivers a powerful enterprise-ready compute platform in a sleek, compact form factor. Backed by the security and infrastructure of a Windows-based system and the speed of the Intel Q370 Chipset, the EloPOS Pack provides the power you need to run your business. With versatile connectivity options, plug in anything from Elo's latest monitor via single cable USB-C to a legacy printer requiring a 12V powered-USB. The system provides flexibility to make upgrades as your business requirements change.
Whether you want Windows 10 or a no-OS model to run Linux, the enterpriseready EloPOS Pack provides the freedom to adapt to your infrastructure. To get you up and running quicker, the no-OS models have been pretested with Linux SuSE, Ubuntu and Red Hat operating systems.
Processor & Chipset
Memory
Standard Memory:
8 GB
Memory Technology:
DDR4 SDRAM
Storage
Solid State Drive Capacity:
256 GB
Display & Graphics
Graphics Controller Model:
Intel UHD Graphics 630
Network & Communication
Wireless LAN:
Yes
Ethernet Technology:
Gigabit Ethernet
Interfaces/Ports
USB:
Yes
Powered USB:
Yes
Network (RJ-45):
Yes
Cash Drawer Port:
Yes
RJ-50:
Yes
Software
Operating System:
Windows 10
Power Description
Power Source:
AC Power
Physical Characteristics
Weight (Approximate):
5.73 lb
Miscellaneous
Package Contents:
- EloPOS Pack
- Power Cord (1800+/-50mm)
- Power Adapter - 180W
- Cable RJ-50 to DB-9 (900+/-30mm)
- (3 ft +/- 1 inch), USB Type-C cable (1800+/-50mm)
- (6 ft +/- 1 inch), HDMI cable (1800+/-50mm)
- (6 ft +/- 1 inch), USB cable (1800+/-50mm)
- (6 ft +/- 1 inch)
- 2x SMA Antenna
- Quick Installation Guide (QIG)
Energy Star:
Yes
Environmentally Friendly:
Yes
Energy Efficiency Certification:
ENERGY STAR 8.0
Warranty
Limited Warranty:
3 Year
Item Numbers
GTIN:
0843173144313
UPC:
843173144313
EAN:
0843173144313
UNSPSC:
43211505
Frequently Asked Questions
What operating system and processor does the Elo E102709 POS System run?
The Elo E102709 EloPOS Pack runs Windows 10 and is powered by Intel's 8th generation processors with a Q370 Chipset, delivering enterprise-ready performance in a compact form factor. This combination provides the speed and security infrastructure needed for demanding retail and hospitality environments.
What memory and storage specifications does the EloPOS Pack include?
The Elo E102709 comes configured with 8GB of RAM and 256GB SSD storage, providing sufficient capacity for running point-of-sale applications and managing transaction data. This configuration balances performance with the compact design of the EloPOS Pack.
What connectivity options are available on the Elo E102709?
The EloPOS Pack features versatile connectivity options including USB-C for connecting Elo's latest monitors via a single cable, as well as legacy 12V powered-USB ports for connecting older peripherals like printers. This flexibility allows you to integrate both modern and existing equipment into your POS environment.
Can I use the Elo E102709 with my existing POS peripherals?
Yes, the Elo E102709 is designed with versatile connectivity to support both new and legacy equipment. The 12V powered-USB ports enable you to connect older peripherals such as receipt printers, making it easy to upgrade your system without replacing all your existing hardware.
Is the Elo E102709 suitable for enterprise retail environments?
The Elo E102709 EloPOS Pack is specifically designed as an enterprise-ready compute platform, combining Windows 10 security infrastructure with Intel's 8th generation processing power to handle demanding retail operations. Its compact form factor makes it ideal for space-constrained retail and hospitality settings.
What makes the EloPOS Pack different from standard POS computers?
The Elo E102709 EloPOS Pack delivers enterprise-grade performance in a sleek, compact design backed by Windows security and Intel's Q370 Chipset technology. Its versatile single-cable USB-C connectivity and support for legacy peripherals provide the flexibility to adapt your POS setup as your business requirements change.
The Elo E102709 POS System is also known as
ELO-E102709
