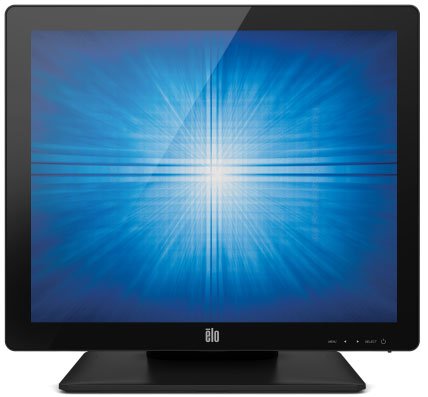

Elo E077464 Touchscreen

Part Number: E077464
Model: 1717L
Add to My Shopping List Add to Compare
$866.15
Item on backorder — chat for lead time

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Screen Size Class
17"
Viewable Screen Size
17"
Screen Mode
SXGA
Screen Surface
Anti-glare

Product Description:

  17" Touchscreen Monitor, Elo 1717L, Desktop LCD, 5:4 Aspect Ratio, IntelliTouch Single-Touch, 1280 x 1024 SXGA, 16.7 million Colors, 225 nits Brightness (typical), LED Backlight, 1000:1 Contrast Ratio (typical), VGA Video Interface, RS232 Serial/USB Touch Controller Interface, Anti-Glare, Bezel, Stand, Black, 3-Year Warranty, RoHS, China RoHS, WEEE, Worldwide. Box Includes Quick Install Guide, VGA Cable (DB-15 Male to DB-15 Male), USB Cable (USB Type A Plug to USB Type B Plug), Power Cable, IEC 60320-C5 to NA/EU Plug, Stand Base Assembly (Part# E904304), Filler Plate (Part# E000405).
Explore all Elo 1717L Touchscreens
Add to Quote
Elo E077464 Touchscreen
Elo E077464 Touchscreen
Elo E077464 Touchscreen
Elo E077464 Touchscreen
Elo E077464 Touchscreen
Elo E077464 Touchscreen Elo E077464 Touchscreen Elo E077464 Touchscreen Elo E077464 Touchscreen Elo E077464 Touchscreen
Full specifications (PDF)

Elo 1717L Touchscreen Model Overview

The 1717L 17-inch LED Desktop Touchmonitor is designed for heavy public use, combining a sleek appearance with advanced touch technology. Its rugged, modern form factor makes it an ideal solution for high-traffic environments such as retail outlets and hospitality settings. Equipped with options like AccuTouch resistive and IntelliTouch surface acoustic wave, this touchmonitor not only enhances interaction but also ensures reliability and durability. Enjoy power efficiency with 40% energy savings thanks to LED technology while benefiting from a standard three-year warranty.


Key Features:
  • Edge-to-edge Zero-bezel: AccuTouch resistive and iTouch surface acoustic wave
  • Antiglare or Clear glass
  • Black or White color options
  • Built for Touch Reliability
  • 40% Energy Savings using LED Technology
  • Integrated cable management
  • Space-saving design
  • Desktop, wall or VESA mounting

Specifications:
  • Model: 1717L
  • Color: Black or White
  • Active Display Area: 13.3 x 10.6 inches / 338 x 270 mm
  • Monitor Dimensions (with stand): 15.4 x 8.5 x 14.2 inches / 392 x 215 x 361 mm
  • Monitor Thickness: 1.7 inches / 43 mm
  • Diagonal Size: 17.0"
  • Native Resolution: 1280 x 1024
  • Brightness: 250 nits (LCD Panel)
  • Power Consumption: 20W (Typical ON), 1.8W (Sleep), 1.4W (Off)
  • Weight: 5.4 kg / 11.9 lb.
  • Touch Interface: Serial (RS232) and USB
  • Warranty: 3 years standard
Elo E077464 Touchscreen Overview
The 1717L touchmonitor is built to withstand the rigors of continuous public use with a rugged "built for touch" design. Its stylish, thin and modern look is coupled with a retail-focused feature set and is an attractive solution for commercial touchmonitor needs. It is well suited for high use public venues where point-of-sale, point-of-information, point-of-service, shelf-level and countertop interactive digital signage and loyalty systems systems are found.
Full specifications (PDF)
Technical Information
Screen Size Class:
17"
Viewable Screen Size:
17"
Screen Mode:
SXGA
Screen Surface:
Anti-glare
Response Time:
5 ms
Aspect Ratio:
5:4
Horizontal Viewing Angle:
170°
Vertical Viewing Angle:
160°
Mount Type:
  • Desk Mountable
  • Pole Mount
  • Wall Mountable
Backlight Technology:
LED
Features:
Security Lock
Video
Maximum Resolution:
1280 x 1024
Standard Refresh Rate:
75 Hz
Color Supported:
16.7 Million Colors
Contrast Ratio:
800:1
Brightness:
250 Nit
Touchscreen Information
Touchscreen:
Yes
Touchscreen Type:
IntelliTouch Surface Wave
Interfaces/Ports
USB:
Yes
VGA:
Yes
Serial Port:
Yes
Power Description
Input Voltage:
  • 110 V AC
  • 220 V AC
  • 12 V DC
Operating Power Consumption:
20 W
Standby Power Consumption:
1.80 W
Off-Mode Power Consumption:
1.40 W
Physical Characteristics
VESA Mount Compatible:
Yes
VESA Mount Standard:
75 x 75
Color Family:
Black
Product Color:
Black
Height with Stand:
15.43"
Width with Stand:
14.21"
Depth with Stand:
8.46"
Weight with Stand (Approximate):
11.90 lb
Miscellaneous
Package Contents:
  • 1717L Rev B 17-inch Multifunction Desktop
  • Power Cable
  • Detachable Touch and Video Cables
Certifications & Standards:
  • Argentina S-mark
  • Australia C-Tick
  • Canada cUL
  • IC
  • China CCC
  • Europe CE
  • Japan VCCI
  • Korea KCC
  • Mexico CoC
  • Taiwan BSMI Mark
  • United States UL
  • FCC
  • International CB
  • IMERC
Environmentally Friendly:
Yes
Warranty
Limited Warranty:
3 Year
Item Numbers
GTIN: 0151562835859, 0745242619145, 0834619001376, 4973163121423, 4973163121614, 7411493344640
UPC: 151562835859, 745242619145, 834619001376
EAN: 0151562835859, 0745242619145, 0834619001376, 4973163121423, 4973163121614, 7411493344640
UNSPSC: 43211903

Recommended Accessories

Category

  • Pos Workstation Accessories (1)
  • Touchscreen Accessories (8)

Recommended Accessories for Model: Elo E077464 Touchscreen

Top Pos Workstation Accessories Purchased With Elo E077464

Top Touchscreen Accessories Purchased With Elo E077464

See All Touchscreen Accessories for Elo E077464 Touchscreen >

Frequently Asked Questions

The Elo 1717L offers a choice of four touchscreen technologies to suit different environments. AccuTouch five-wire resistive is ideal for retail and hospitality settings where splashing liquids, food, and grease are common. IntelliTouch surface acoustic wave (SAW) and IntelliTouch zero-bezel options deliver superior optical quality for dry retail and hospitality applications. Contact us today to select the right touch technology for your specific use case.

The Elo 1717L is well suited for point-of-sale, point-of-information, point-of-service, interactive signage, and loyalty systems. Its rugged built-for-touch design and retail-focused feature set make it an attractive solution for commercial touchscreen monitor needs in high-traffic public environments. Visit barcodesinc.com to explore how this monitor can enhance your retail or hospitality operations.

Yes, the Elo 1717L offers an optional three-track magnetic stripe reader (MSR) that is easily installed by the user without requiring external brackets or attachments. The MSR is programmable to either HID or Keyboard Emulation (USB only), providing an elegant, integrated solution for payment processing and loyalty systems. Contact us today for MSR configuration options and availability.

The Elo 1717L offers multiple mounting options including wall- and pole-mount via standard VESA mount patterns, as well as tabletop placement with the included desktop stand. Capped through-mount holes on the base ensure table-top security. This flexibility allows you to deploy the monitor in virtually any retail or hospitality environment. Visit barcodesinc.com to find the mounting solution that fits your installation needs.

The Elo 1717L features a VGA video interface for display connectivity and supports both RS232 Serial and USB touch controller interfaces. This dual interface support ensures compatibility with a wide range of POS systems, kiosks, and legacy equipment. Our team can help you verify compatibility with your existing infrastructure—contact us today.

Yes, the Elo 1717L is designed with environmental responsibility in mind, featuring state-of-the-art LED backlights that reduce power consumption while maintaining excellent display quality. The monitor is lightweight and uses less power than traditional LCD displays, making it a sustainable choice for commercial applications. The product is RoHS and WEEE compliant, ensuring responsible manufacturing and end-of-life recycling.

The Elo E077464 Touchscreen is also known as ELO-E077464 or E077464.
