Barcodes,Inc.

Elo E070923 Touchscreen


0.0

(No reviews)

Be the first to

Write a Review

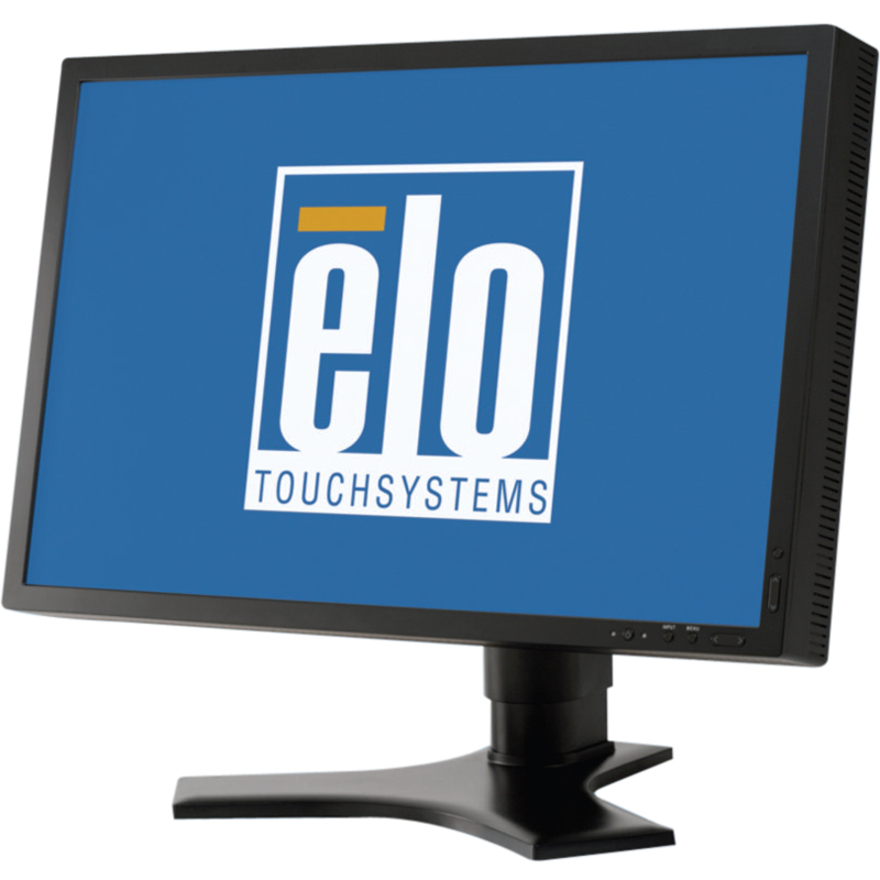

Elo 2420L - LCD Touchmonitor (IntelliTouch Touch Technology, USB Touch Interface and Anti-glare Surface Treatment) - Color: Black
It is especially well suited for industrial and government applications and interactive digital signage

2420L touchmonitor provides a wide viewing angle similar to the 2020L and is especially well suited for industrial and government applications and interactive digital signage, as well as applications requiring a larger format for enclosed or light restricted areas. For added convenience it can be mounted in portrait mode.2420L is ordinarily available with IntelliTouch technology, but CarrollTouch infrared technology is available for special applications

Technical Information

  • Horizontal Viewing Angle: 178°
  • Vertical Viewing Angle: 178°
  • Screen Mode: WUXGA
  • Mount Type:
    • Desk Mountable
    • Wall Mountable
  • Screen Size: 24"
  • Aspect Ratio: 16:10
  • Response Time: 8 ms

General Information

  • Product Type: LCD Touchscreen Monitor
  • Brand Name: Elo
  • Manufacturer: Elo Touch Solutions, Inc
  • Product Model: 2420L
  • Product Name: 2420L Touchscreen LCD Monitor

Physical Characteristics

  • Weight with Stand (Approximate): 26 lb
  • VESA Mount Compatible: Yes
  • VESA Mount Standard: 200 x 100
  • Height with Stand: 12"
  • Width with Stand: 21.80"
  • Depth with Stand: 17"
  • Color: Black
  • Weight (Approximate): 19.20 lb

Interfaces/Ports

  • USB: Yes
  • DVI: Yes
  • VGA: Yes

Video

  • Standard Refresh Rate: 60 Hz
  • Brightness: 320 Nit
  • Color Supported: 16.7 Million Colors
  • Maximum Resolution: 1920 x 1200
  • Contrast Ratio: 1,000:1

Power Description

  • Operating Power Consumption: 75 W
  • Input Voltage:
    • 110 V AC
    • 220 V AC

Touchscreen Information

  • Touchscreen: Yes
  • Touchscreen Type: Surface Acoustic Wave

Other

  • Green Compliant: Yes
  • Green Compliance Certificate/Authority: RoHS

Warranty

  • Limited Warranty: 3 Year
Brand Elo
Model 2420L
