Elo E019027 Touchscreen

The Elo E019027 Touchscreen has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.
Elo 1519LM - Elo 1519LM 15.6" LCD Touchscreen Monitor - 16:9 - 8 ms - 5-wire Resistive - 1366 x 768 - Adjustable Display Angle - 16.7 Million Colors - 500:1 - 250 Nit - Speakers - DVI - USB - VGA - White - RoHS - 3 Year
  • The 500:1 contrast ratio produces enhanced sharpness and shading accuracy in each picture
  • The 250 Nit brightness gives an exceptionally visible display for clear and consistent on-screen pictures
Read More

Need a different version? See all Elo 1519LM Touchscreens

Discontinued Need Assistance?
Add to Quote
Add to My Shopping List Add to Compare
Elo E019027 Touchscreen
Elo E019027 Touchscreen Elo E019027 Touchscreen Elo E019027 Touchscreen
Elo E019027 Touchscreen
Elo E019027 Touchscreen
Elo E019027 Touchscreen
Full specifications (PDF)

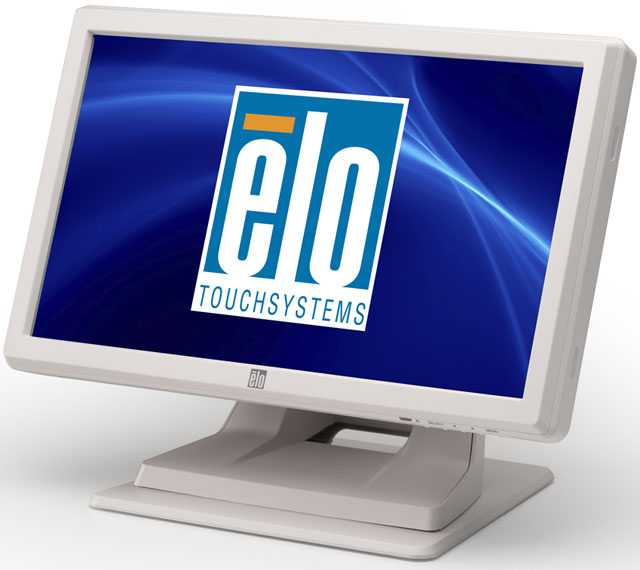

Elo 1519LM Touchscreen Model Overview
The ELO 1519LM 15" touchmonitor is an effective solution for integrating into healthcare applications such as nursing stations, computer-aided therapy, electronic medical record keeping, paperless charting, patient self check-in / registration or point-of-information installations, as well as non-medical applications that benefit from DVI-D input, speakers and a pristine image display. The fully featured 1519LM touchmonitor offers best-in-class optical performance mated to leading touch technologies -IntelliTouch surface acoustic wave and AccuTouch five-wire resistive -in addition to a combination USB and serial touch controller, DVI, VGA and built-in speakers. The monitor is available in white, touch and non-touch enabled versions.
Elo E019027 Touchscreen Overview
The fully featured 1519LM touchmonitor offers best-in-class optical performance mated to leading touch technologies -IntelliTouch surface acoustic wave and AccuTouch five-wire resistive -in addition to a combination USB and serial touch controller, DVI, VGA and built-in speakers. The monitor is available in white, touch and non-touch enabled versions.
Full specifications (PDF)
Technical Information
Viewable Screen Size:
15.6"
Screen Surface:
Anti-glare
Response Time:
8 ms
Aspect Ratio:
16:9
Horizontal Viewing Angle:
90°
Vertical Viewing Angle:
45°
Adjustable Display Angle:
Yes
Mount Type:
Desk Mountable
Features:
Security Lock
Video
Maximum Resolution:
1366 x 768
Standard Refresh Rate:
60 Hz
Color Supported:
16.7 Million Colors
Contrast Ratio:
500:1
Brightness:
250 Nit
Audio
Speakers:
Yes
Touchscreen Information
Touchscreen:
Yes
Touchscreen Type:
5-wire Resistive
Interfaces/Ports
DVI:
Yes
USB:
Yes
VGA:
Yes
Serial Port:
Yes
Power Description
Input Voltage:
  • 110 V AC
  • 220 V AC
Operating Power Consumption:
18.40 W
Physical Characteristics
VESA Mount Compatible:
Yes
VESA Mount Standard:
75 x 75
Product Color:
White
Height with Stand:
12.20"
Width with Stand:
13.78"
Depth with Stand:
6.89"
Weight (Approximate):
11.46 lb
Miscellaneous
Package Contents:
  • 1519LM 15-Inch Desktop Touchmonitor For Medical And Healthcare Settings
  • Detachable Touch Cable
  • Video Cables
Certifications & Standards:
  • UL 60601-1 (3rd Edition)
  • CSA C22.2 No. 60601-1 (medical)
  • FCC CFR 47 Part 18 Subpart B (medical)
  • UL 60950
  • CSA C22.2 No. 60950-1-03
  • NOM
  • FCC
  • ICES
  • IEC/EN 60601-1:1988+A1+A2 2nd Edition (medical)
  • IEC/EN 60601-1-2:2005
  • IEC/EN 55011 (medical)
  • IEC/EN 60950-1
  • C-tick
  • CE mark
  • VCCI
  • S-mark
Platform Supported:
PC
Environmentally Friendly:
Yes
Environmental Certification:
RoHS
Warranty
Limited Warranty:
3 Year
Item Numbers
GTIN: 0053926386765, 0588063599360, 0741149331685, 7411493316852
UPC: 053926386765, 588063599360, 741149331685
EAN: 0053926386765, 0588063599360, 0741149331685, 7411493316852
UNSPSC: 43211903
Questions? Get help from
a POS Expert!

What is your POS application?

The Elo E019027 Touchscreen is also known as ELO-E019027 or E019027.
