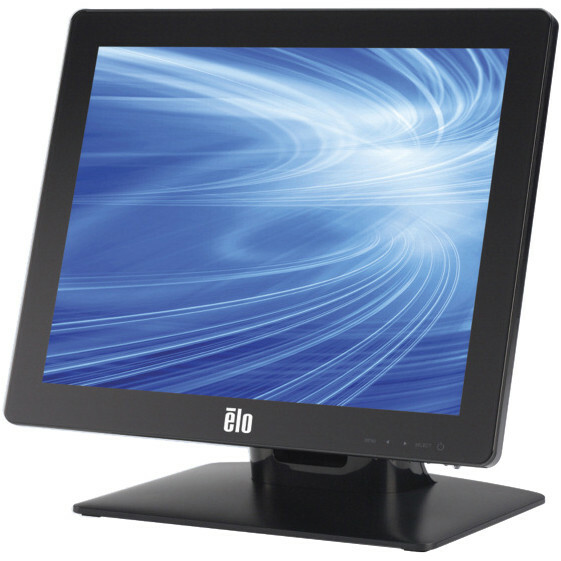

The 1717L 17-inch LED Desktop Touchmonitor is designed for heavy public use, combining a sleek appearance with advanced touch technology. Its rugged, modern form factor makes it an ideal solution for high-traffic environments such as retail outlets and hospitality settings. Equipped with options like AccuTouch resistive and IntelliTouch surface acoustic wave, this touchmonitor not only enhances interaction but also ensures reliability and durability. Enjoy power efficiency with 40% energy savings thanks to LED technology while benefiting from a standard three-year warranty.
Key Features:
Edge-to-edge Zero-bezel: AccuTouch resistive and iTouch surface acoustic wave
Antiglare or Clear glass
Black or White color options
Built for Touch Reliability
40% Energy Savings using LED Technology
Integrated cable management
Space-saving design
Desktop, wall or VESA mounting
Specifications:
Model: 1717L
Color: Black or White
Active Display Area: 13.3 x 10.6 inches / 338 x 270 mm
Monitor Dimensions (with stand): 15.4 x 8.5 x 14.2 inches / 392 x 215 x 361 mm
Monitor Thickness: 1.7 inches / 43 mm
Diagonal Size: 17.0"
Native Resolution: 1280 x 1024
Brightness: 250 nits (LCD Panel)
Power Consumption: 20W (Typical ON), 1.8W (Sleep), 1.4W (Off)
Weight: 5.4 kg / 11.9 lb.
Touch Interface: Serial (RS232) and USB
Warranty: 3 years standard

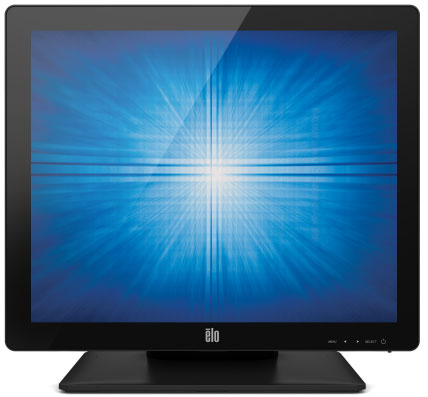

Elo E017030 Touchscreen Overview
The 1717L touchmonitor is built to withstand the rigors of continuous public use with a rugged "built for touch" design. Its stylish, thin and modern look is coupled with a retail-focused feature set and is an attractive solution for commercial touchmonitor needs. It is well suited for high use public venues where point-of-sale, point-of-information, point-of-service, shelf-level and countertop interactive digital signage and loyalty systems systems are found.
What touchscreen technologies are available for the Elo 1717L?
The Elo 1717L offers a choice of four touchscreen technologies to suit different environments. AccuTouch five-wire resistive is ideal for retail and hospitality settings where splashing liquids, food, and grease are concerns. IntelliTouch surface acoustic wave (SAW) and IntelliTouch zero-bezel options deliver superior optical quality for dry retail and hospitality applications. Contact us today to select the right touch technology for your deployment.
Can the Elo 1717L be mounted on a wall or pole?
Yes, the Elo 1717L supports multiple mounting options including wall- and pole-mount configurations via standard VESA mount patterns. It also accommodates tabletop placement with the included desktop stand, and features capped through-mount holes on the base for table-top security. Visit barcodesinc.com to explore mounting accessories and installation guidance.
Does the Elo 1717L support magnetic stripe reader integration?
Yes, the Elo 1717L offers an optional three-track magnetic stripe reader (MSR) that can be easily installed by the user and is programmable to either HID or Keyboard Emulation mode via USB. This integrated solution eliminates the need for external brackets or attachments, providing a clean, elegant installation for loyalty and payment card applications.
What are the display specifications of the Elo 1717L?
The Elo 1717L is a 17-inch touchscreen monitor with a 5:4 aspect ratio, delivering 1280 x 1024 SXGA resolution and 16.7 million colors. It features a 225 nits brightness (typical), 1000:1 contrast ratio (typical), LED backlighting, and an anti-glare, zero-bezel design for optimal visibility in retail and public-facing environments.
What connectivity options does the Elo 1717L provide?
The Elo 1717L includes a VGA video interface for display connection and offers dual touch controller interface options: RS232 serial or USB. The package includes VGA and USB cables, making it straightforward to integrate into existing point-of-sale, point-of-information, and interactive signage systems.
Is the Elo 1717L environmentally friendly?
Yes, the Elo 1717L is designed with environmental responsibility in mind, featuring state-of-the-art LED backlights that reduce power consumption while maintaining brightness and image quality. The monitor is lightweight and compliant with RoHS, China RoHS, and WEEE regulations, making it a sustainable choice for commercial deployments.
The Elo E017030 Touchscreen is also known as
ELO-E017030
or E017030.
