Elo E005652 Touchscreen

Elo E326738 Touchscreen A newer version of this item is available.
It is replaced by the Elo E326738 Touchscreen.
Elo 1537L - Elo 1537L 15" Open-frame LCD Touchscreen Monitor - 4:3 - 14.50 ms - 15" Class - Surface Acoustic Wave - 1024 x 768 - XGA - 16.2 Million Colors - 500:1 - 250 Nit - USB - VGA - Steel, Black - 3 Year
  • The XGA touchscreen highlights XGA display with the resolution of up to 1024 x 768 pixels
  • The 500:1 contrast ratio produces enhanced sharpness and shading accuracy in each picture
  • Enjoy crisp content and energetic hues with the 250 Nit brightness
  • VESA mount compatibility allows you to mount the touch screen on a wall or with a stand depending on your specific needs
Read More

Need a different version? See all Elo 1537L Touchscreens

Discontinued See Replacement
Chat Now for Qty Discount
Add to Quote
Add to My Shopping List Add to Compare
Elo E005652 Touchscreen
Elo E005652 Touchscreen
Elo E005652 Touchscreen Elo E005652 Touchscreen
Full specifications (PDF)

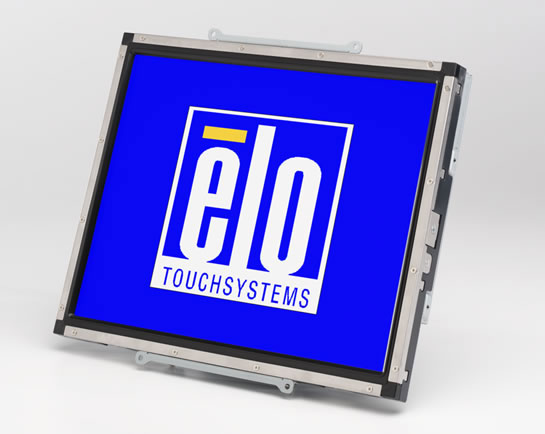

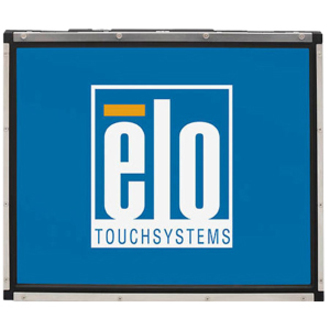

Elo 1537L Touchscreen Model Overview
The 1537L has a compact form factor with thin borders and multiple mounting options for easy integration. It features a high qualitly panel along with a unique, injection-molded minibezel with virtually invisible watertight seal and choice of touch technology. Future generation panels can be phased-in without external changes. Multilingual on-screen display.
Elo E005652 Touchscreen Overview

Elo chassis LCD monitor have a long-lasting product cycle because the enclosure is controlled by Elo specifications. Future panel improvements are therefore possible without external changes. The 1537L has a compact form factor with thin borders and multiple mounting options for easy integration.

Full specifications (PDF)
Technical Information
Screen Size Class:
15"
Viewable Screen Size:
15"
Screen Mode:
XGA
Response Time:
14.50 ms
Aspect Ratio:
4:3
Horizontal Viewing Angle:
140°
Vertical Viewing Angle:
115°
Video
Maximum Resolution:
1024 x 768
Standard Refresh Rate:
75 Hz
Color Supported:
16.2 Million Colors
Contrast Ratio:
500:1
Brightness:
250 Nit
Touchscreen Information
Touchscreen:
Yes
Touchscreen Type:
Surface Acoustic Wave
Interfaces/Ports
USB:
Yes
VGA:
Yes
Power Description
Input Voltage:
12 V DC
Operating Power Consumption:
30 W
Physical Characteristics
VESA Mount Compatible:
Yes
Product Color:
  • Steel
  • Black
Height:
10.4"
Width:
13.2"
Depth:
1.6"
Weight (Approximate):
6.60 lb
Miscellaneous
Package Contents:
  • 1537L Open-frame Touchscreen LCD Monitor
  • Touch Cable
  • Video Cable
  • 2 x Standard ("L") Mounting Brackets
Environmentally Friendly:
Yes
Environmental Certification:
  • WEEE
  • RoHS
Warranty
Limited Warranty:
3 Year
Item Numbers
GTIN: 0741149318273, 7411493182730
UPC: 741149318273
EAN: 0741149318273, 7411493182730
UNSPSC: 43211903
