Elo E001336 Touchscreen

Part Number: E001336
Model: Parts
Add to My Shopping List Add to Compare
Discontinued Need Assistance?

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Screen Size Class
15"
Viewable Screen Size
15"
Screen Mode
XGA
Response Time
11.70 ms

Product Description:

  Elo 1515L 15" LCD Touchscreen Monitor - 4:3 - 11.70 ms - 15" Class - 5-wire ResistiveMulti-touch Screen - 1024 x 768 - XGA - 16.7 Million Colors - 700:1 - 250 Nit - LED Backlight - VGA - Dark Gray - MPR III, MPR II, China RoHS - 3 Year
Explore all Elo Parts Accessories
Add to Quote
Elo E001336 Touchscreen
Elo E001336 Touchscreen
Elo E001336 Touchscreen
Elo E001336 Touchscreen Elo E001336 Touchscreen Elo E001336 Touchscreen

Elo Parts Accessory Model Overview

Products and parts from ELO.
Elo E001336 Touchscreen Overview

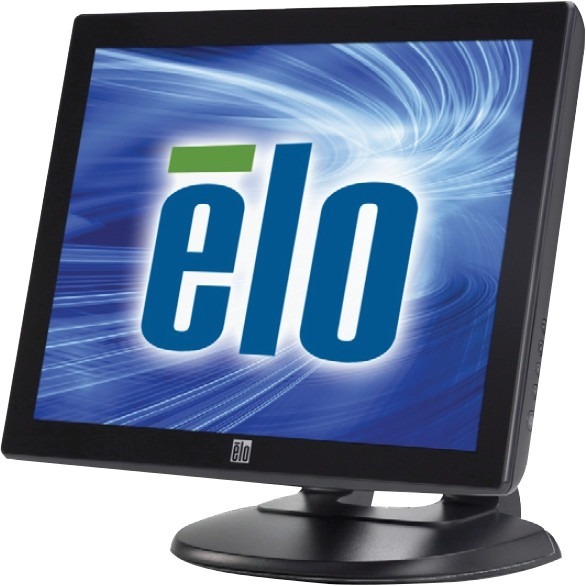

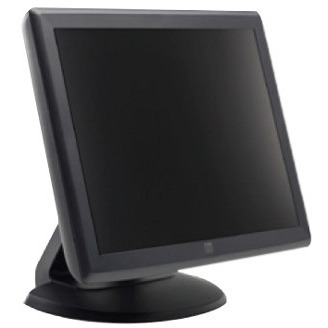

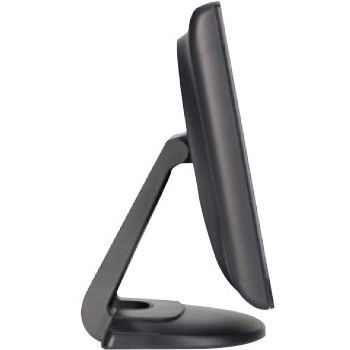

The Elo Touch Solutions 1515L touchmonitor is designed, developed and built to provide a cost-effective touch solution for system integrators and VARs. It packs Elo quality and reliability into a integrated, affordable touchmonitor with a footprint smaller than a standard 15" display. This cost and space-saving touchmonitor is "designed for touch"- the technology is built into the 1515L from the ground up and not added as an afterthought by altering the original monitor. It includes a stable base, with controls that are placed on the side rather than the front and are locked-out for public use. The 1515L can function as a desktop or wall-mounted unit and includes a VESA mounting option. The optional 3-track magnetic stripe reader (MSR), is easily installed by the user, providing an elegant, integrated solution. The display is factory sealed against dirt and dust, and the unit offers a choice of touchscreen technologies: the anti-glare clarity and superior performance of IntelliTouch surface acoustic wave, time-tested AccuTouch five-wire resistive, and IntelliTouch Pro projected capacitive (PCAP) for a multi-touch experience and zero-bezel, seamless design.
Technical Information
Screen Size Class:
15"
Viewable Screen Size:
15"
Screen Mode:
XGA
Response Time:
11.70 ms
Aspect Ratio:
4:3
Mount Type:
Wall Mountable
Backlight Technology:
LED
Video
Maximum Resolution:
1024 x 768
Color Supported:
16.7 Million Colors
Contrast Ratio:
700:1
Brightness:
250 Nit
Touchscreen Information
Touchscreen Type:
5-wire Resistive
Multi-touch Screen:
Yes
Interfaces/Ports
VGA:
Yes
Power Description
Operating Power Consumption:
13 W
Physical Characteristics
VESA Mount Compatible:
Yes
Product Color:
Dark Gray
Height with Stand:
12.20"
Width with Stand:
13.78"
Depth with Stand:
6.89"
Weight (Approximate):
7.28 lb
Weight with Stand (Approximate):
10.58 lb
Miscellaneous
Package Contents:
  • 1515L Multifunction 15-inch Desktop Touchmonitor
  • Power Cable
  • Detachable touch cable
  • Video cable
Environmentally Friendly:
Yes
Environmental Certification:
  • MPR III
  • MPR II
  • China RoHS
Warranty
Limited Warranty:
3 Year
Item Numbers
GTIN: 0834619002922
UPC: 834619002922
EAN: 0834619002922
UNSPSC: 43211903
