Full specifications (PDF)
Features:
- Landscape/Portrait Viewable
- Scratch Resistance
- Progressive Scan
Elo E001113 Touchscreen
Part Number:
E001113
Model:
2243L

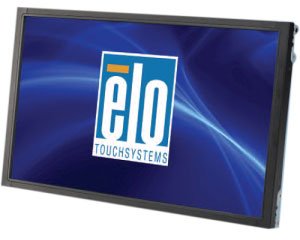

Elo 2243L Touchscreen Model Overview
The 22" ELO 2243L open-frame LCD touchmonitor with its slim design and narrow outside dimensions gives kiosk integrators an edge in developing the most aesthetically pleasing products. Wide-aspect displays like the ELO 2243L are easier to use and incorporate than traditional open-frame touchmonitors. Wide-screen format displays allow extra content on the screen and are quickly becoming preferred in casino gaming, amusement and entertainment settings and are increasingly popular in public venue environments due to the high-definition cinematic-like experience. Typical applications for the 2243L include: gaming and amusement, information kiosks and self-service, as well as interactive digital signage applications.
Elo E001113 Touchscreen Overview
The Elo Touch Solutions 2243L open-frame LCD touchmonitor with its slim design and narrow outside dimensions gives kiosk integrators an edge in developing the most aesthetically pleasing products. Wide-aspect displays like the Elo 2243L are easier to use and incorporate than traditional open-frame touchmonitors. Wide-screen format displays allow extra content on the screen and are quickly becoming preferred in casino gaming, amusement and entertainment settings and are increasingly popular in public venue environments due to the high-definition cinematic-like experience. Typical applications for the 2243L include: gaming and amusement, information kiosks and self-service, as well as interactive digital signage applications.
State-of-the-art LED backlighting used in the 2243L makes the panel thinner overall as the cold cathode fluorescent lights (CCFL) are replaced with LED lights. LED lights also take less electricity to operate and generate less heat. This leads to the slimmer dimensions of the 2243L that facilitate OEMs and system integrators the flexibility to design aesthetically pleasing and stylish kiosks.
Available with IntelliTouch, IntelliTouch Plus, anti-vandal SecureTouch standard bezel surface acoustic wave, as well as IntelliTouch Zero-Bezel SAW and IntelliTouch Pro projected capacitive touchscreen technology for a true flat look, the 2243L provides stable "drift-free" operation with outstanding image clarity, resolution, and light transmission - for an accurate touch response and vivid images. Projected capacitive provides a durable, zero-bezel, glass-to-edge surface with multi-touch, while surface acoustic wave is the optical standard of touch and widely used in kiosk and gaming applications. SecureTouch incorporates chemically strengthened 3mm glass that passes the UL60950 ball drop test for improved vandal resistance. All technology options are pure glass constructions to deliver a clear, bright and long-lasting performance and it also makes the touchscreens scratch-resistant. It is nearly impossible to physically "wear out" these touchscreens.
Technical Information
Display & Graphics
Screen Size:
22"
Display Screen Type:
LCD
Touchscreen:
Yes
Touchscreen Technology:
Surface Acoustic Wave (SAW)
Multi-touch Screen:
Yes
Display Resolution:
1920 x 1080
Response Time:
5 ms
Aspect Ratio:
16:9
Horizontal Viewing Angle:
170°
Vertical Viewing Angle:
160°
Backlight Technology:
LED
Video
Scan Format:
1080p
Standard Refresh Rate:
60 Hz
Native Contrast Ratio:
1,000:1
Brightness:
250 Nit
Interfaces/Ports
USB:
Yes
DVI:
Yes
VGA:
Yes
Power Description
Input Voltage:
- 120 V AC
- 230 V AC
Power Consumption:
25 W
Physical Characteristics
Product Color:
Black
VESA Mount Compatible:
Yes
VESA Mount Standard:
100 x 100
Height:
12.4"
Width:
20.7"
Depth:
1.6"
Weight (Approximate):
10.60 lb
Miscellaneous
Certifications & Standards:
- UL60950
- S-mark
- C-Tick
- cUL
- IC
- CCC
- CE
- VCCI
- KCC
- Mexico CoC
- Taiwan BSMI
- UL
- FCC
- CB
- IMERC
Environmentally Friendly:
Yes
Warranty
Limited Warranty:
3 Year
Item Numbers
GTIN:
0834619002403
UPC:
834619002403
EAN:
0834619002403
