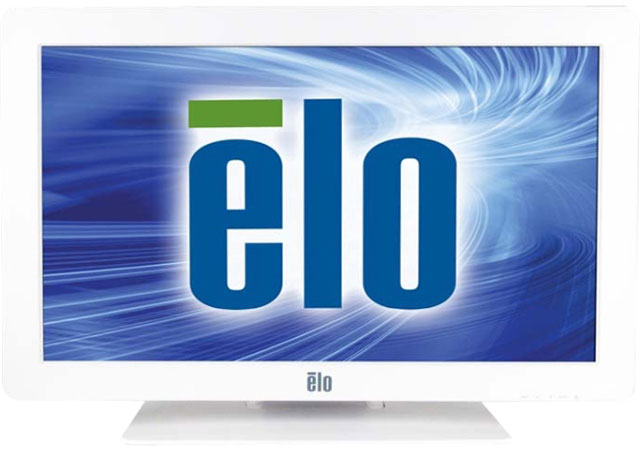

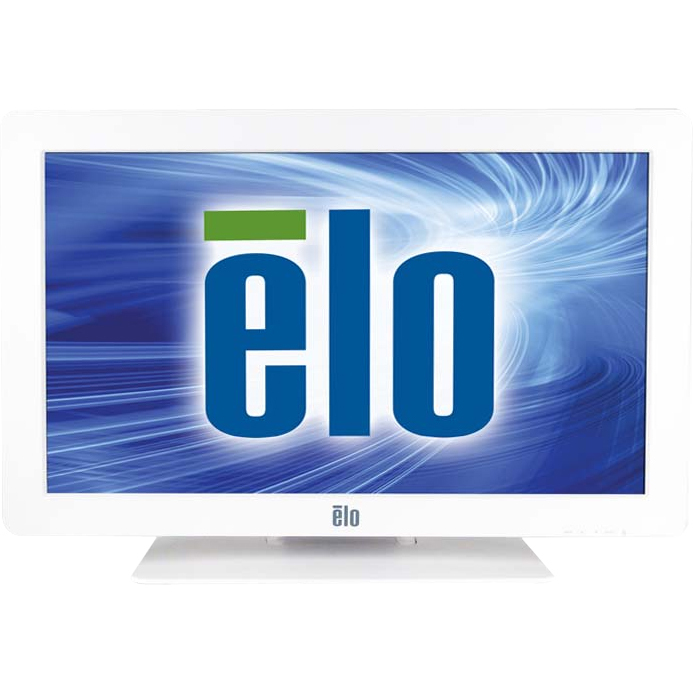

Elo E000140 Touchscreen

The Elo E000140 Touchscreen has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.

Elo 2401LM - Elo 2401LM 24" LCD Touchscreen Monitor - 16:9 - 25 ms - 24" Class - IntelliTouch Surface Wave - 1920 x 1080 - Full HD - Adjustable Display Angle - 16.7 Million Colors - 3,000:1 - 300 Nit - LED Backlight - Speakers - DVI - USB - VGA - Black - RoHS, WEEE

The Full HD lcd touchscreen monitor is perfect for point-of-sale, hospitality, and many other retail applications
The IntelliTouch Surface Wave touchscreen innovation conveys unrivaled picture clarity, determination, light transmission, and dependability since it uses clear glass that keeps on working regardless of the possibility of scratches
The Full HD screen size with 1920x1080 resolution provides the native display of a Full HD video source without any degradation due to down-sampling technologies
The 3,000:1 contrast ratio actualizes fantastic hues for an exceptional visual experience
LED backlight enhances the display performance to deliver an outstanding color range and contrast ratio
Enjoy crisp content and energetic hues with the 300 Nit brightness
VESA mount compatibility allows you to mount the touch screen on a wall or with a stand depending on your specific needs

Need a different version? See all Elo 2401LM Touchscreens

Discontinued Need Assistance?

Chat Now for Qty Discount

Add to Quote

Overview

Full specifications (PDF)

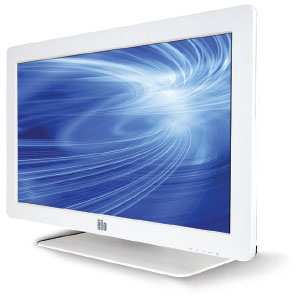

Elo 2401LM Touchscreen Model Overview

The fully featured 2401LM touchmonitor offers IntelliTouch surface acoustic wave (SAW) touchscreen technology which provides stable "drift-free" touch response, outstanding image clarity and full HD resolution, resulting in an accurate touch experience and vivid images. Additionally, the touchmonitor is equipped with industry standard connectivity in the form of a combination USB and RS232 touch controller, DVI-D, VGA connectors and built-in audio amp with stereo speakers.

Elo E000140 Touchscreen Overview

The fully featured 2401LM touchmonitor offers IntelliTouch™ surface acoustic wave (SAW) touchscreen technology which provides stable "drift-free" touch response, outstanding image clarity and full HD resolution, resulting in an accurate touch experience and vivid images. Additionally, the touchmonitor is equipped with industry standard connectivity in the form of a combination USB and RS232 touch controller, DVI-D, VGA connectors and built-in audio amp with stereo speakers. The 2401LM is available in white (P/N E263686) and black (P/N E000140) color.

Detailed Specs

Full specifications (PDF)

Technical Information

Screen Size Class:

24"

Viewable Screen Size:

24"

Screen Mode:

Full HD

Screen Surface:

Anti-glare

Response Time:

25 ms

Aspect Ratio:

16:9

Horizontal Viewing Angle:

178°

Vertical Viewing Angle:

178°

Adjustable Display Angle:

Yes

Mount Type:

Rear Mount
Desk Mountable

Backlight Technology:

LED

Features:

Cable Management

Video

Maximum Resolution:

1920 x 1080

Standard Refresh Rate:

60 Hz

Color Supported:

16.7 Million Colors

Contrast Ratio:

3,000:1

Brightness:

300 Nit

Audio

Speakers:

Yes

Touchscreen Information

Touchscreen:

Yes

Touchscreen Type:

IntelliTouch Surface Wave

Interfaces/Ports

DVI:

Yes

USB:

Yes

VGA:

Yes

Power Description

Operating Power Consumption:

32 W

Physical Characteristics

VESA Mount Compatible:

Yes

VESA Mount Standard:

100 x 100

Product Color:

Black

Height:

14.6"

Width:

23.9"

Depth:

2.4"

Weight (Approximate):

19.40 lb

Miscellaneous

Platform Supported:

Environmentally Friendly:

Yes

Environmental Certification:

RoHS
WEEE

Item Numbers

GTIN: 0072931156989, 0834619000171, 0888813499736, 8346190001710

UPC: 072931156989, 834619000171, 888813499736

EAN: 0072931156989, 0834619000171, 0888813499736, 8346190001710

UNSPSC: 43211903

Reviews

Q&A

Accessories

Questions? Get help from
a POS Expert!

The Elo E000140 Touchscreen is also known as ELO-E000140 or E000140.
