Elo A85217-000 Touchscreen

Part Number: A85217-000
Model: Entuitive 1525L
Add to My Shopping List Add to Compare
Discontinued Need Assistance?

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Screen Size Class
15"
Viewable Screen Size
15"
Screen Mode
XGA
Screen Surface
Anti-glare

Product Description:

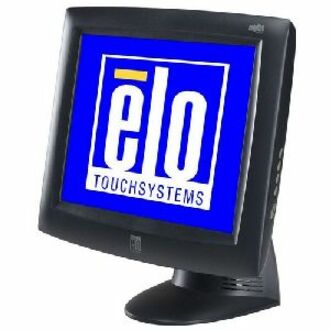

  Elo 1525L Desktop TouchScreen LCD Monitor - 15" - Surface Acoustic Wave - Dark Gray
Explore all Elo Entuitive 1525L Touchscreens
Add to Quote
Elo A85217-000 Touchscreen
Elo A85217-000 Touchscreen
Elo A85217-000 Touchscreen Elo A85217-000 Touchscreen
Full specifications (PDF)

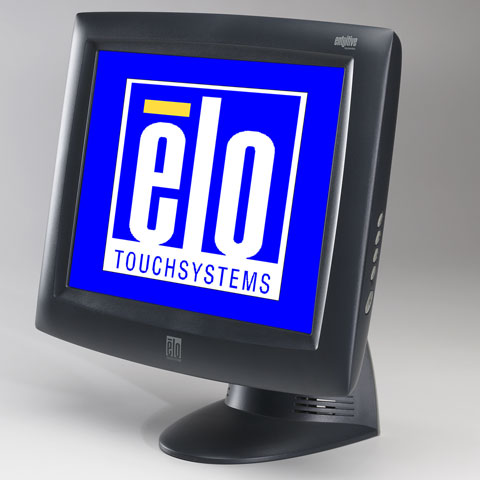

Elo Entuitive 1525L Touchscreen Model Overview

The Entuitive 1525L was designed from a blank sheet of paper to address the key needs of touch applications, resulting in a product that can truly be called "designed for touch." It has a unique combination of flexibility, reliability, performance, ease-of-use and installation, all with a distinctive visual appeal.
Elo A85217-000 Touchscreen Overview

The 1525L-MSR touchmonitor is based on the popular 1525L touchmonitor but includes an integrated three-stripe, ergonomically-placed magnetic stripe reader (MSR). The MSR is incorporated into the monitor housing and is designed to flow with the elegant styling of the monitor, rather than looking like a tacked-on afterthought.

The 1525L-MSR is targeted toward applications that require the use of credit/debit cards, loyalty cards, and other card transactions. Unlike most MSRs, the 1525L-MSR also reads the third data stripe, normally reserved for applications such as customer loyalty programs. Elo has positioned the MSR unit ergonomically on the top, right corner so that the user can swipe the card flat with a natural action. Unique USB hub inside the monitor allows a single USB cable to carry both the touch signal and MSR data.

Full specifications (PDF)
Technical Information
Screen Size Class:
15"
Viewable Screen Size:
15"
Screen Mode:
XGA
Screen Surface:
Anti-glare
Aspect Ratio:
4:3
Mount Type:
Wall Mountable
Video
Maximum Resolution:
1024 x 768
Standard Refresh Rate:
75 Hz
Color Supported:
16.7 Million Colors
Color Depth:
24-bit
Contrast Ratio:
500:1
Brightness:
300 Nit
Touchscreen Information
Touchscreen:
Yes
Touchscreen Type:
Surface Acoustic Wave
Interfaces/Ports
USB:
Yes
VGA:
Yes
Built-in Devices
Built-in Devices:
USB Hub
Power Description
Input Voltage:
220 V AC
Physical Characteristics
Product Color:
Dark Gray
Height with Stand:
15.40"
Width with Stand:
15.37"
Depth with Stand:
8.20"
Weight (Approximate):
14.70 lb
Miscellaneous
Package Contents:
  • 1525L Desktop TouchScreen LCD Monitor
  • Power cable
  • Detachable touch cable
  • Detachable video cable
Additional Information:
  • USB with human interface driver (HID)

Magnetic Stripe Reader:

  • Tracks: 3
  • Message format: ASCII
  • Card speed: 3 to 50 inch/sec (7.6 to 127 cm/sec)
Platform Supported:
  • PC
  • Sun
  • Mac
Warranty
Limited Warranty:
3 Year
Item Numbers
UNSPSC: 43211903
