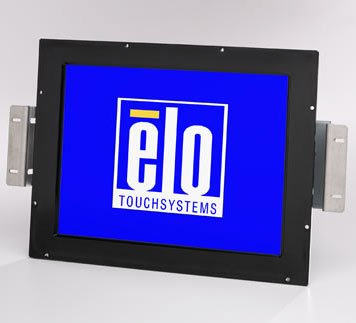

Elo A71384-000 Touchscreen

Part Number: A71384-000
Model: Entuitive 1547L
Add to My Shopping List Add to Compare
Discontinued Need Assistance?

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Screen Size Class
15"
Viewable Screen Size
15"
Screen Mode
XGA
Screen Surface
Anti-glare

Product Description:

  Elo 3000 Series 1547L LCD Touchscreen Monitor - 15" - Projected Capacitive - Black
Explore all Elo Entuitive 1547L Touchscreens
Add to Quote
Elo A71384-000 Touchscreen
Elo A71384-000 Touchscreen
Elo A71384-000 Touchscreen Elo A71384-000 Touchscreen
Full specifications (PDF)

Elo Entuitive 1547L Touchscreen Model Overview

The Elo Entuitive 1547L ThruTouch model is optimized to operate through customer supplied non-metallic materials, such as a store window or vandal-resistant materials up to 18 mm thick. This allows the Entuitive 1547L to have unsurpassed resistance to impacts, scratches and vandalism commonly found in public-access applications. Oversized glass may also be used to create a true flat front surface, eliminating the recessed touch surface and bezel typically found in other systems, which can create a trap for dirt and liquids. This makes the Elo Entuitive 1547L ideal for ticketing machines and other outdoor systems as well as tabletop and bartop applications. Furthermore, the sensing technology is unaffected by moisture, heat, rain, snow and ice, operates even with gloves, and is completely unaffected by spills and dirt or harsh cleaning fluids.
Elo A71384-000 Touchscreen Overview

Elo's chassis LCD monitors have a long-lasting product cycle because the enclosure is controlled by Elo's specifications, enabling future panel improvements without external changes. The monitors are available with multiple touch technologies and all feature a unique, injection-molded minibezel and watertight seal, plus a multitude of mounting options. The 1547L is available with Elo's projected capacitive technology, which enables touches to be sensed through a protective layer in front of the display.

Full specifications (PDF)
Technical Information
Screen Size Class:
15"
Viewable Screen Size:
15"
Screen Mode:
XGA
Screen Surface:
Anti-glare
Video
Maximum Resolution:
1024 x 768
Standard Refresh Rate:
75 Hz
Color Supported:
16.7 Million Colors
Color Depth:
24-bit
Contrast Ratio:
500:1
Brightness:
350 Nit
Touchscreen Information
Touchscreen:
Yes
Touchscreen Type:
Projected Capacitive
Interfaces/Ports
VGA:
Yes
Power Description
Input Voltage:
240 V AC
Physical Characteristics
Product Color:
Black
Height:
11.7"
Width:
18.1"
Depth:
2.8"
Miscellaneous
Package Contents:
  • 3000 Series 1547L LCD Touchscreen Monitor
  • North American power cable
  • European power cable
  • Detachable touch cable
  • Video cables
  • Mounting brackets
Platform Supported:
  • PC
  • Mac
  • Sun
Warranty
Limited Warranty:
3 Year
Item Numbers
UNSPSC: 43211903
