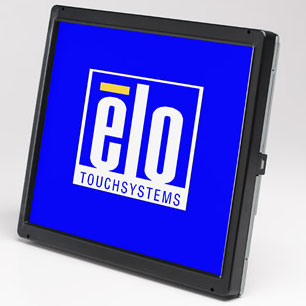

Elo A36843-000 Touchscreen

The Elo A36843-000 Touchscreen has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.
Elo Entuitive 1746L - Elo 1000 Series 1746L Rear-Mount TouchScreen LCD Monitor - 17" - Surface Acoustic Wave - Steel, Black
  • Experience an energetic display of colors, contrast and pictures with the sxga lcd touchscreen monitor
  • The SAW touchscreen innovation conveys unrivaled picture clarity, determination, light transmission, and dependability by using clear glass that keeps on working regardless of the possibility of scratches
  • The SXGA touchscreen highlights SXGA display with the resolution of up to 1280 x 1024 pixels
  • Enjoy crisp content and energetic hues with the 260 Nit brightness
Read More

Need a different version? See all Elo Entuitive 1746L Touchscreens

Discontinued Need Assistance?
Add to Quote
Add to My Shopping List Add to Compare
Elo A36843-000 Touchscreen
Elo A36843-000 Touchscreen Elo A36843-000 Touchscreen
Elo A36843-000 Touchscreen
Elo A36843-000 Touchscreen
Full specifications (PDF)
Elo Entuitive 1746L Touchscreen Model Overview
The Elo Entuitive 1746L boasts an integrated minibezel and has a water tight 0.5 mm seal. The Elo Entuitive 1746L uses IntelliTouch Surface Wave technology and incorporates serial and USB interfaces. The Entuitive 1746L also features a multi-lingual on-screen display (OSD). Mounting options include rear and VESA mounts.
Elo A36843-000 Touchscreen Overview

Elo's chassis LCD monitor have a long-lasting product cycle because the enclosure is controlled by Elo's specification. Future panel improvements are therefore possible without external changes. The monitors feature clear glass IntelliTouch surface wave technology for the utmost in optical quality, along with a unique, injection-molded minibezel and virtually invisible watertight seal.

Full specifications (PDF)
Technical Information
Screen Size Class:
17"
Viewable Screen Size:
17"
Screen Mode:
SXGA
Screen Surface:
Anti-glare
Aspect Ratio:
5:4
Video
Maximum Resolution:
1280 x 1024
Color Supported:
16.7 Million Colors
Color Depth:
24-bit
Contrast Ratio:
450:1
Brightness:
260 Nit
Touchscreen Information
Touchscreen:
Yes
Touchscreen Type:
Surface Acoustic Wave
Interfaces/Ports
USB:
Yes
VGA:
Yes
Power Description
Input Voltage:
  • 220 V AC
  • 12 V DC
Physical Characteristics
Product Color:
  • Steel
  • Black
Height:
12.4"
Width:
14.6"
Depth:
2.1"
Weight (Approximate):
11 lb
Miscellaneous
Package Contents:
  • 1000 Series 1746L Rear-Mount TouchScreen LCD Monitor
  • Power cable
  • Detachable touch cable
  • Detachable Video cable
  • Mounting brackets
Platform Supported:
  • PC
  • Mac
  • Sun
Warranty
Limited Warranty:
1 Year
Item Numbers
UNSPSC: 43211903
Questions? Get help from
a POS Expert!

What is your POS application?

The Elo A36843-000 Touchscreen is also known as ELO-A36843 or A36843000.
