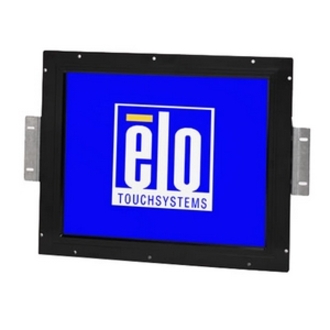

Elo 990882-001 Touchscreen

The Elo 990882-001 Touchscreen has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.

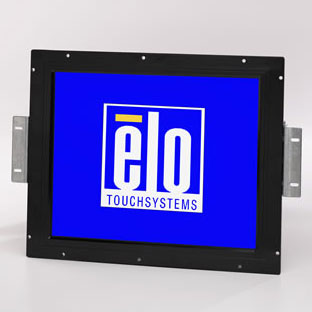

Elo Entuitive 1747L - Elo 3000 Series 1747L Rear-Mount Touch Monitor - 17" - 5-wire Resistive - Black
  • 5-wire Resistive technology can be activated with virtually any object such as a stylus, gloved hand, pen and your fingers
  • Enjoy crisp content and energetic hues with the 260 Nit brightness
Read More

Need a different version? See all Elo Entuitive 1747L Touchscreens

Discontinued Need Assistance?
Add to Quote
Add to My Shopping List Add to Compare
Elo 990882-001 Touchscreen
Elo 990882-001 Touchscreen Elo 990882-001 Touchscreen
Elo 990882-001 Touchscreen
Elo 990882-001 Touchscreen
Full specifications (PDF)
Elo Entuitive 1747L Touchscreen Model Overview
Elo chassis LCD monitors have a long-lasting product cycle because the enclosure is controlled by Elo specifications. Future panel improvements are therefore possible without external changes. The monitors are available with multiple touch technologies and all feature a unique, injection-molded minibezel and watertight seal, plus a multitude of mounting options.
Elo 990882-001 Touchscreen Overview

Elo's chassis LCD monitors have a long-lasting product cycle because the enclosure is controlled by Elo's specifications. Future panel improvements are therefore possible without external changes. The monitors are available with multiple touch technologies and all feature a unique, injection-molded minibezel and watertight seal, plus a multitude of mounting options.

Full specifications (PDF)
Technical Information
Screen Size Class:
17"
Viewable Screen Size:
17"
Screen Surface:
Anti-glare
Response Time:
25 ms
Video
Maximum Resolution:
1024 x 1024
Standard Refresh Rate:
75 Hz
Color Supported:
16.7 Million Colors
Color Depth:
24-bit
Contrast Ratio:
450:1
Brightness:
260 Nit
Touchscreen Information
Touchscreen:
Yes
Touchscreen Type:
5-wire Resistive
Interfaces/Ports
DVI:
Yes
VGA:
Yes
Power Description
Input Voltage:
240 V AC
Physical Characteristics
Color:
Black
Height:
13.4"
Width:
16.4"
Depth:
2.6"
Weight (Approximate):
15.06 lb
Miscellaneous
Package Contents:
  • 3000 Series 1747L Rear-Mount Touch Monitor
  • North American and European power cable
  • Detachable touch cable
  • Video cable
  • Mounting brackets
Additional Information:
  • External power supply
  • Monitor input voltage: 11.4 to 19.95 VDC
  • Monitor input Current (12 VDC): 4A max.
  • Monitor input Current (19 VDC): 2.65A max.
  • Multilingual remote on-screen display (OSD) with 1.8m cable
  • Integrated precision minibezel with watertight 0.5 mm seal
Certifications & Standards:
  • UL
  • cUL
  • FCC
  • IC
  • CE
  • TÜV-GS
  • VCC
  • C-Tick
Platform Supported:
  • PC
  • Mac
Warranty
Limited Warranty:
3 Year
Item Numbers
UNSPSC: 43211903
Questions? Get help from
a POS Expert!

What is your POS application?

The Elo 990882-001 Touchscreen is also known as ELO-990882 or 990882001.
