Elo 947098-000 Touchscreen

Part Number: 947098-000
Model: Entuitive 1525L
Add to My Shopping List Add to Compare
Discontinued Need Assistance?

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Screen Size Class
15"
Viewable Screen Size
15"
Screen Mode
XGA
Screen Surface
Anti-glare

Product Description:

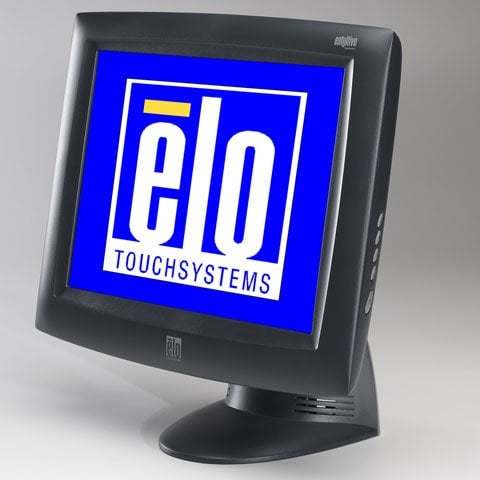

  Elo 1525L 15" LCD Touchscreen Monitor - 25 ms - 15" Class - 5-wire Resistive - 1024 x 768 - XGA - 16.7 Million Colors - USB - VGA - Dark Gray
Explore all Elo Entuitive 1525L Touchscreens
Add to Quote
Elo 947098-000 Touchscreen
Elo 947098-000 Touchscreen
Elo 947098-000 Touchscreen Elo 947098-000 Touchscreen
Full specifications (PDF)

Elo Entuitive 1525L Touchscreen Model Overview

The Entuitive 1525L was designed from a blank sheet of paper to address the key needs of touch applications, resulting in a product that can truly be called "designed for touch." It has a unique combination of flexibility, reliability, performance, ease-of-use and installation, all with a distinctive visual appeal.
Elo 947098-000 Touchscreen Overview

The 1525L was designed from a blank sheet of paper to address the key needs of touch applications, resulting in a product that can truly be called designed for touch. It has a unique combination of flexibility, reliability, performance, ease-of-use and installation, all with a distinctive visual appeal.

Full specifications (PDF)
Technical Information
Screen Size Class:
15"
Viewable Screen Size:
15"
Screen Mode:
XGA
Screen Surface:
Anti-glare
Response Time:
25 ms
Mount Type:
Wall Mountable
Video
Maximum Resolution:
1024 x 768
Standard Refresh Rate:
75 Hz
Color Supported:
16.7 Million Colors
Color Depth:
24-bit
Contrast Ratio:
500:1
Brightness:
350 Nit
Touchscreen Information
Touchscreen:
Yes
Touchscreen Type:
5-wire Resistive
Interfaces/Ports
USB:
Yes
VGA:
Yes
Built-in Devices
Built-in Devices:
USB Hub
Physical Characteristics
Product Color:
Dark Gray
Height with Stand:
15.39"
Width with Stand:
15.35"
Depth with Stand:
8.19"
Weight (Approximate):
14.70 lb
Miscellaneous
Additional Information:
  • "Designed for touch" features such as a stable tilt base
  • Cables hidden from user's view
  • Mounting holes on base bottom for tabletop security
  • Controls on the side rather than the front, plus lockout function for public use
  • Internal power supply
  • Removable base
  • Long-lasting product cycle
  • Resolution (Sun): 1024 x 768 at 65 Hz

OSD disable/enable:

  • Power
  • Volume
  • OSD menu
Platform Supported:
  • PC
  • Mac
  • Sun
Item Numbers
UNSPSC: 43211903
