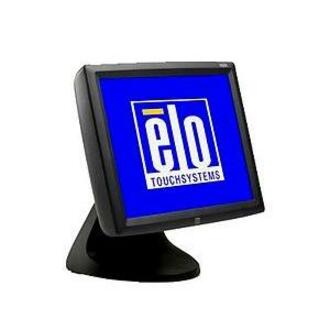

Elo 726256-000 Touchscreen

The Elo 726256-000 Touchscreen has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.
Elo Entuitive 1525L - Elo 3000 Series 1525L Multifunction Monitor - 15" - Surface Acoustic Wave - Dark Gray
  • The XGA touchscreen highlights XGA display with the resolution of up to 1024 x 768 pixels
  • The 500:1 contrast ratio produces enhanced sharpness and shading accuracy in each picture
  • The 300 Nit brightness gives an exceptionally visible display for clear and consistent on-screen pictures
Read More

Need a different version? See all Elo Entuitive 1525L Touchscreens

Discontinued Need Assistance?
Add to Quote
Add to My Shopping List Add to Compare
Elo 726256-000 Touchscreen
Elo 726256-000 Touchscreen Elo 726256-000 Touchscreen
Elo 726256-000 Touchscreen
Elo 726256-000 Touchscreen
Full specifications (PDF)

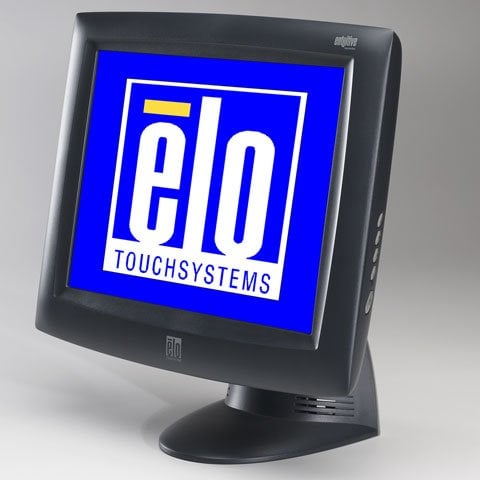

Elo Entuitive 1525L Touchscreen Model Overview
The Entuitive 1525L was designed from a blank sheet of paper to address the key needs of touch applications, resulting in a product that can truly be called "designed for touch." It has a unique combination of flexibility, reliability, performance, ease-of-use and installation, all with a distinctive visual appeal.
Elo 726256-000 Touchscreen Overview

The 1525L was designed from a blank sheet of paper to address the key needs of touch applications, resulting in a product that can truly be called "designed for touch." It has a unique combination of flexibility, reliability, performance, ease-of-use and installation, all with a distinctive visual appeal.

Full specifications (PDF)
Technical Information
Screen Size Class:
15"
Viewable Screen Size:
15"
Screen Mode:
XGA
Response Time:
25 ms
Aspect Ratio:
4:3
Mount Type:
Wall Mountable
Video
Maximum Resolution:
1024 x 768
Standard Refresh Rate:
75 Hz
Color Supported:
16.7 Million Colors
Color Depth:
24-bit
Contrast Ratio:
500:1
Brightness:
300 Nit
Touchscreen Information
Touchscreen:
Yes
Touchscreen Type:
Surface Acoustic Wave
Interfaces/Ports
USB:
Yes
VGA:
Yes
Power Description
Input Voltage:
240 V AC
Physical Characteristics
Color:
Dark Gray
Height:
15.4"
Width:
15.4"
Depth:
8.2"
Weight (Approximate):
14.70 lb
Miscellaneous
Certifications & Standards:
  • UL/cUL
  • TÜV-GS
  • CE
  • FCC/IC/VCCI/C-Tick Class B
Warranty
Limited Warranty:
3 Year
Item Numbers
UNSPSC: 43211903
Questions? Get help from
a POS Expert!

What is your POS application?

The Elo 726256-000 Touchscreen is also known as ELO-726256 or 726256000.
