Elo 009234-000 Touchscreen

The Elo 009234-000 Touchscreen has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.

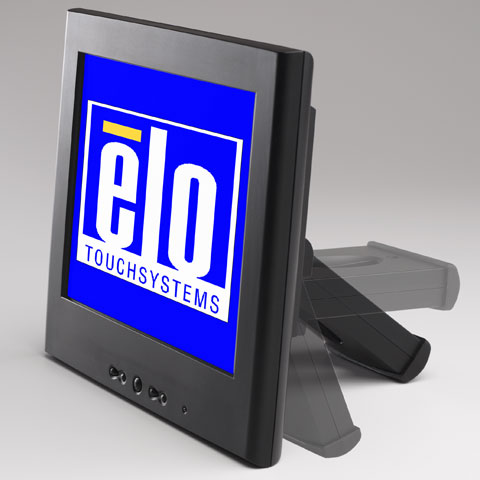

Elo Entuitive 1224L - Elo 1000 Series 1224L Touch Monitor - 12.1" - 5-wire Resistive - Dark Gray
  • Features 5-wire Resistive touch technology which is made of a glass panel and a film screen, each covered with a thin metallic layer, isolated by a narrow gap
  • The SVGA touchscreen highlights SVGA display with the resolution of up to 800 x 600 pixels
  • The 180 Nit brightness gives an exceptionally visible display for clear and consistent on-screen pictures
Read More
Discontinued Need Assistance?
Recommended TrueSupport Coverage (/mo.)

x

Are you sure you don't need TrueSupport?

The average internal IT
cost for device support is over per year!

With TrueSupport you're
covered - and for way less!
  • Hardware Helpdesk Support
  • RMA Repair Facilitation
  • OEM Service Contract Management
  • Premium Phone & Email Support
  • Billed annually per device

Only /month
Subtotal ( items)

x
You've just added this product to the cart:

Go To Cart
Add to Quote
Elo Entuitive 1224L Touchscreen Model Overview
Elo point-of-sale touchmonitors are perfect in applications where cost, rugged design, and flexibility are top criteria. Featuring AccuTouch five-wire resistive touch technology, the most widely used technology for retail applications, Elo POS touchmonitors are proven to survive in harsh conditions. For example, liquid splashing, food and grease on the touchscreen, and aggressive cleaning are typical in convenience stores. The AccuTouch technology handles these conditions better than any other technology, at a competitive price. The Entuitive 1224L is available with a standard pedestal base or a new easel base configuration. The easel base allows the user to adjust the screen to the optimal viewing height by extending the easel base on any flat surface.
Elo 009234-000 Touchscreen Overview

Elo point-of-sale touchmonitors are perfect in applications where cost, rugged design, and flexibility are top criteria. Featuring AccuTouch five-wire resistive touch technology, the most widely used technology for retail applications, Elo POS touchmonitors are proven to survive in harsh conditions. For example, liquid splashing, food and grease on the touchscreen, and aggressive cleaning are typical in convenience stores. The AccuTouch technology handles these conditions better than any other technology, at a competitive price. The 1224L is available with a standard pedestal base or a new easel base configuration. The easel base allows the user to adjust the screen to the optimal viewing height by extending the easel base on any flat surface.

Technical Information
Viewable Screen Size:
12.1"
Screen Mode:
SVGA
Screen Surface:
Anti-glare
Response Time:
50 ms
Aspect Ratio:
4:3
Video
Maximum Resolution:
800 x 600
Standard Refresh Rate:
75 Hz
Contrast Ratio:
150:1
Brightness:
180 Nit
Touchscreen Information
Touchscreen:
Yes
Touchscreen Type:
5-wire Resistive
Interfaces/Ports
VGA:
Yes
Power Description
Input Voltage:
240 V AC
Physical Characteristics
Color:
Dark Gray
Height with Stand:
12.20"
Width with Stand:
12.28"
Depth with Stand:
5.75"
Weight (Approximate):
7.30 lb
Miscellaneous
Package Contents:
  • 1000 Series 1224L LCD Touch Monitor
  • Mounting brackets
  • Detachable touch cable
  • North American cable
  • European power cable
  • Video cables
Additional Information:
  • Colors: 262,000
  • Pedestal base
  • Economical and reliable
  • External power supply
  • Touch can be activated with fingernails, gloves, credit cards, or any stylus
  • Sealed touchscreen
Certifications & Standards:
  • UL
  • cUL
  • FCC
  • CE
  • TÜV-GS
  • VCCI
  • C-Tick
Warranty
Limited Warranty:
5 Year
Item Numbers
UNSPSC: 43211903
Questions? Get help from
a POS Expert!

What is your POS application?

The Elo 009234-000 Touchscreen is also known as ELO-009234 or 009234000.
