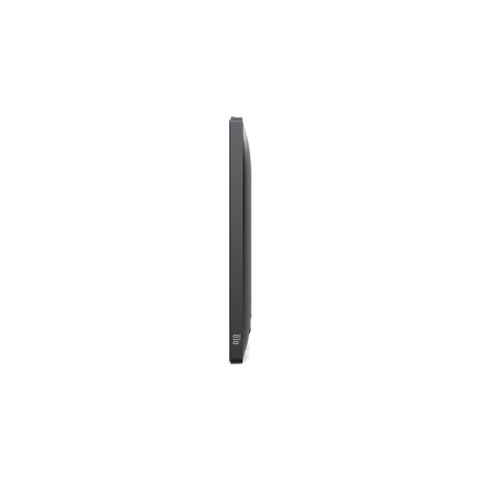

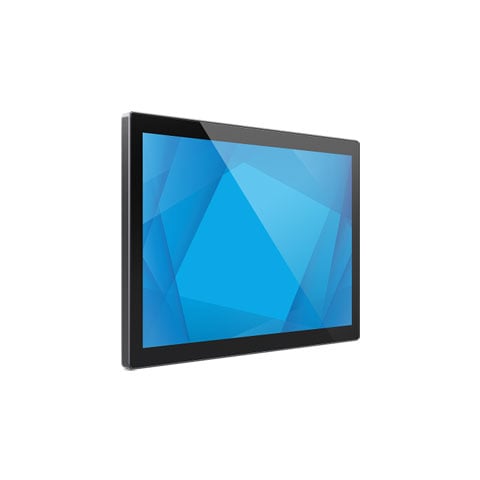

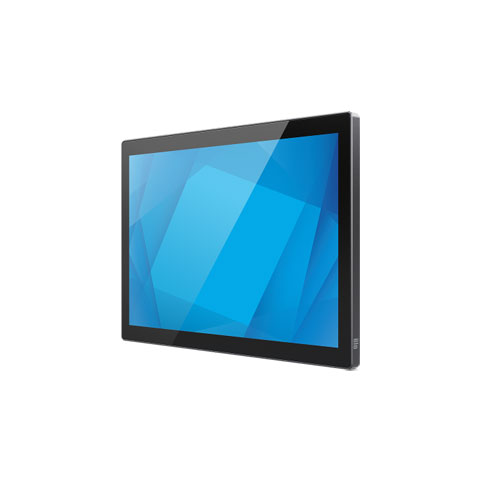

Elo 1004LS 10" Touchscreen
Compact Power. Full Touch Control.
Full specifications (PDF)
Price Match Guarantee
Found a better price? We'll match it within 60 days of your purchase.
Elo 1004LS 10" Touchscreen Options
-
Elo E967935 Touchscreen
Touchscreen Monitors, Elo 1004LS 10", 10.1-inch Wide LCD Monitor, HD 1280 x 800, Projected Capacitive 10-touch, USB Controller, Anti-glare, Zero-Bezel, No Stand, USB-C Input, Gray, WorldwideIn Stock$411.37
Frequently Asked Questions
What touch technology does the Elo 1004LS use and how many simultaneous touches does it support?
The Elo 1004LS is equipped with TouchPro® PCAP (Projected Capacitive) technology that supports up to 10 simultaneous touch points. This energy-efficient touch solution is ideal for high-traffic environments where multiple users need to interact with the display at the same time, such as self-service kiosks and interactive signage.
What connectivity options does the Elo 1004LS offer?
The Elo 1004LS features a single USB-C port that provides touch, video, and power connectivity in one unified connection. This simplifies cable management and installation, making it easy to integrate into your POS systems, kiosks, or industrial interfaces.
Is the Elo 1004LS durable enough for high-traffic public environments?
Yes, the Elo 1004LS is built for commercial durability with an IK07 impact protection rating and chemically-strengthened, scratch-resistant glass. The optically-bonded display and edge-to-edge glass design enhance both durability and clarity, making it well-suited for continuous public use in demanding environments.
What are the display specifications of the Elo 1004LS?
The Elo 1004LS features a 10.1-inch Full HD display with a native resolution of 1280 x 800, brightness of 400 nits (panel) or 360 nits with the touch overlay, and a 30 millisecond response time. It offers wide viewing angles of 85° horizontal and 85° vertical, and includes low blue light technology to reduce eye strain during extended use.
What mounting options are available for the Elo 1004LS?
The Elo 1004LS is VESA-compatible (75mm), allowing flexible installation on walls, stands, or poles. Its ultra-thin design and narrow border with edge-to-edge glass make it ideal for space-constrained applications where a modern, minimalistic aesthetic is important.
What warranty and support does Barcodes Inc offer with the Elo 1004LS?
The Elo 1004LS comes with a standard three-year warranty for peace of mind. We offer this touchscreen monitor available from us with full technical support—contact us today at barcodesinc.com to discuss warranty options, extended coverage, or any questions about integrating this display into your operations.
Elo 1004LS 10" Touchscreen Model Overview
The Elo 1004LS 10-inch LCD Touchscreen Monitor is designed for commercial excellence, delivering vibrant Full HD visuals in a sleek, ultra-thin profile. Ideal for various applications such as POS systems, interactive signage, and self-service kiosks, this monitor features optical bonding technology that enhances durability and clarity. Equipped with Energy-efficient TouchPro® PCAP technology, it supports up to 10 simultaneous touches, making it perfect for high-traffic environments. With a clean aesthetic and built-in speakers, the 1004LS offers flexible installation options and minimizes eye strain, ensuring maximum comfort during use.
Key Features
- 10-inch Full HD display for crystal-clear visuals
- Ultra-thin design with edge-to-edge glass for modern aesthetics
- Durable IK07 rating and scratch-resistant glass
- 10 touch points supported for multi-user interaction
- USB-C connectivity for easy power and data transfer
- Reduced eye strain with low blue light technology
- Three-year warranty for peace of mind
Specifications
- Color: Dark gray
- Diagonal Size: 10.1" (256.54 mm)
- Touch Technology: TouchPro® PCAP
- Active Touch Area: 8.54" x 5.34" (216.96 mm x 135.60 mm)
- Native Resolution: 1280 x 800
- Brightness: 400 nits (panel), 360 nits (with TouchPro)
- Viewing Angle: Horizontal 85°/Vertical 85°
- Response Time: 30 msec
- Weight: Unpackaged 1.32 lbs (0.6 kg)
- Operating Temperature: 0° C to 40° C (32°F to 104°F)
- Warranty: 3 years
- Impact Protection: IK07
